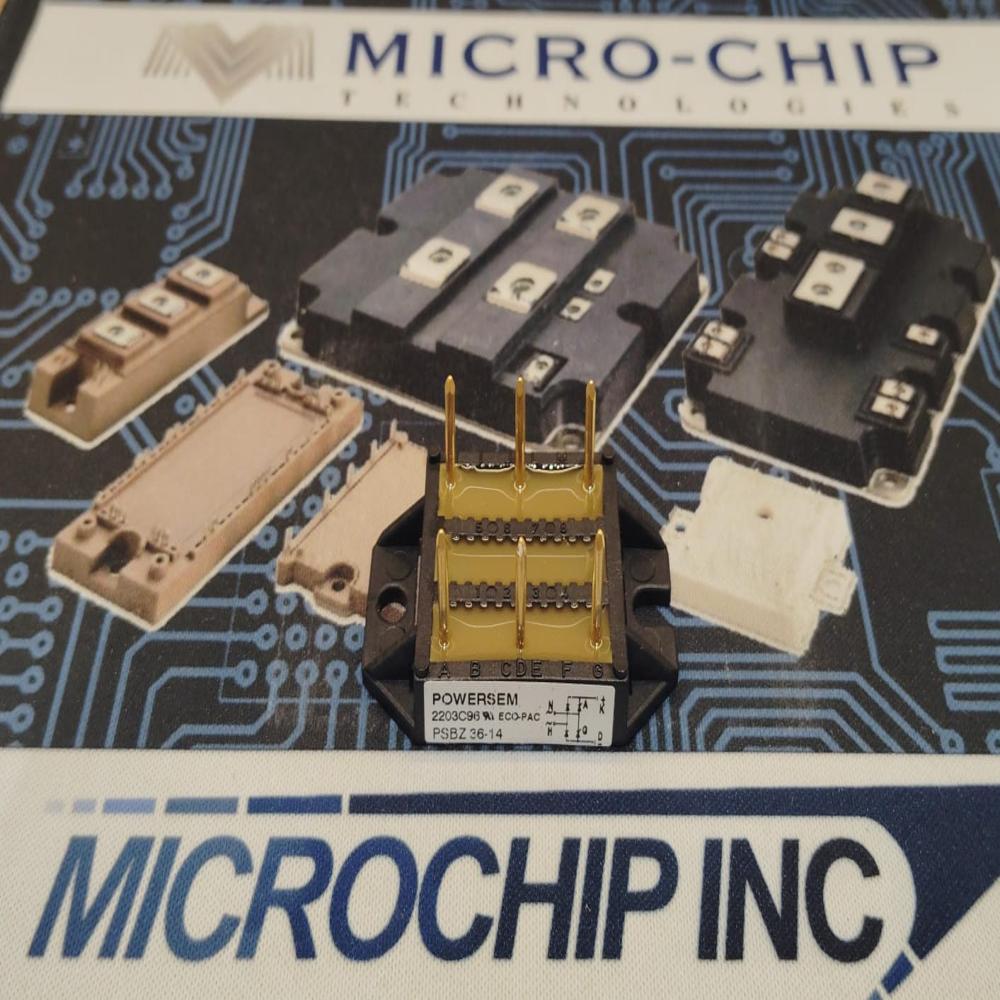

PSBZ36-14 POWERSEM IGBT MODULE

Name: PSBZ36-14 POWERSEM IGBT MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 3500.0 INR
Availability: InStock

Price 3500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

PSBZ36-14 POWERSEM IGBT MODULE Specification

Power Source
External DC source

Input
Control voltage / gate trigger

Power Supply
DC

Response Time
Fast switching

Interface
Screw terminal

Thermal Conductivity
High, baseplate for heat dissipation

Operating Temperature
-40C to +150C

Features
High efficiency, compact size, reliable performance

Components
IGBT, diode

IP Rating
IP20

Output
High power switching

Usage
Industrial electronic equipment, inverters, power supplies

Product Type
IGBT Module

Application
Motor drives, UPS, Power inverters, Renewable energy converter

Rated Voltage
1400 V

Supply Voltage
1400 V DC

Size
Standard Powersem module size

Dimension (L*W*H)
106 mm x 62 mm x 30 mm (approx.)

Function
IGBT module for high power switching applications

Color
Black/White

Weight
300 g (approx.)

Thickness
Standard module design, typically 25 mm

Current Rating
36 A

Capacity
36 A

Frequency
Up to 20 kHz

Diode Reverse Voltage
1400 V

Isolation Voltage
2500 V AC (between terminals and baseplate)

Mounting Type
Screw Mount / Chassis Mount

Model Number
PSBZ36-14

Baseplate Material
Copper (nickel plated)

Diode Forward Current
36 A

Collector-Emitter Voltage (Vce)
1400 V

Collector Current (Ic)
36 A

Gate Emitter Voltage (Vge)
20 V max

Package Type
Isolated base module

PSBZ36-14 POWERSEM IGBT MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

PSBZ36-14 POWERSEM IGBT MODULE About

Access the transcendent capabilities of the PSBZ36-14 POWERSEM IGBT MODULE, now available at a special rate with limited stock. Decorated with unmatchable performance features, this module boasts high thermal conductivity and fast switching, ideal for demanding industrial electronic equipment, inverters, and renewable energy converters. With a robust 1400 V collector-emitter rating, 36 A capacity, and secure screw/chassis mounting, it ensures reliable performance and superior heat dissipation. Secure your advantage now-elevate your power systems with this unmatchable, high-efficiency IGBT solution.

Powerful Solutions for Industrial Applications

The PSBZ36-14 POWERSEM IGBT MODULE is engineered for specific usage in high-power switching systems. Its essential features include a fast response time, high current rating of 36 A, and a 1400 V rated voltage. Engineered with a copper (nickel-plated) baseplate and specialized isolated packaging, it brings reliability and thermal stability. Application media range from motor drives and UPS to power inverters and renewable energy converters, ensuring flexibility in your industrial setups.

Swift Delivery and Secure Packaging

Enjoy efficient dispatching and timely supply when you order the PSBZ36-14 POWERSEM IGBT MODULE. Each module is shipped securely, packaged in robust materials to prevent transit damage. Our supply chain operates via leading Indian ports (FOB Mumbai), optimizing both delivery time and reliability. You can rely on streamlined order processing, ensuring prompt delivery and complete shipment tracking from dispatch to arrival at your facility.

FAQ's of PSBZ36-14 POWERSEM IGBT MODULE:

Q: How can the PSBZ36-14 IGBT module enhance industrial electronic equipment?

A: The PSBZ36-14 offers unmatchable performance in high-power switching, delivering reliable, fast response times and efficient heat dissipation, making it ideal for upgrading motor drives, inverters, and UPS systems.

Q: What are the installation requirements for the PSBZ36-14 module?

A: This module features a screw terminal interface with screw/chassis mounting, ensuring secure attachment and stability. Proper heat sinking is recommended for optimal thermal performance.

Q: Where can this IGBT module be effectively used?

A: It is perfect for industrial applications such as renewable energy converters, power inverters, motor drives, UPS units, and high-power supplies that demand consistent, high-efficiency switching.

Q: What benefits does the isolated base module design offer?

A: The isolated base design enhances safety by preventing terminal-to-baseplate voltage leakage, boosts reliability, and improves overall insulation and heat dissipation in high-voltage environments.

Q: How quickly can the PSBZ36-14 module be shipped after order placement?

A: Upon confirmation, modules are dispatched promptly from our warehouse, leveraging the FOB Mumbai port, with delivery times varying based on your location and shipping option selected.
