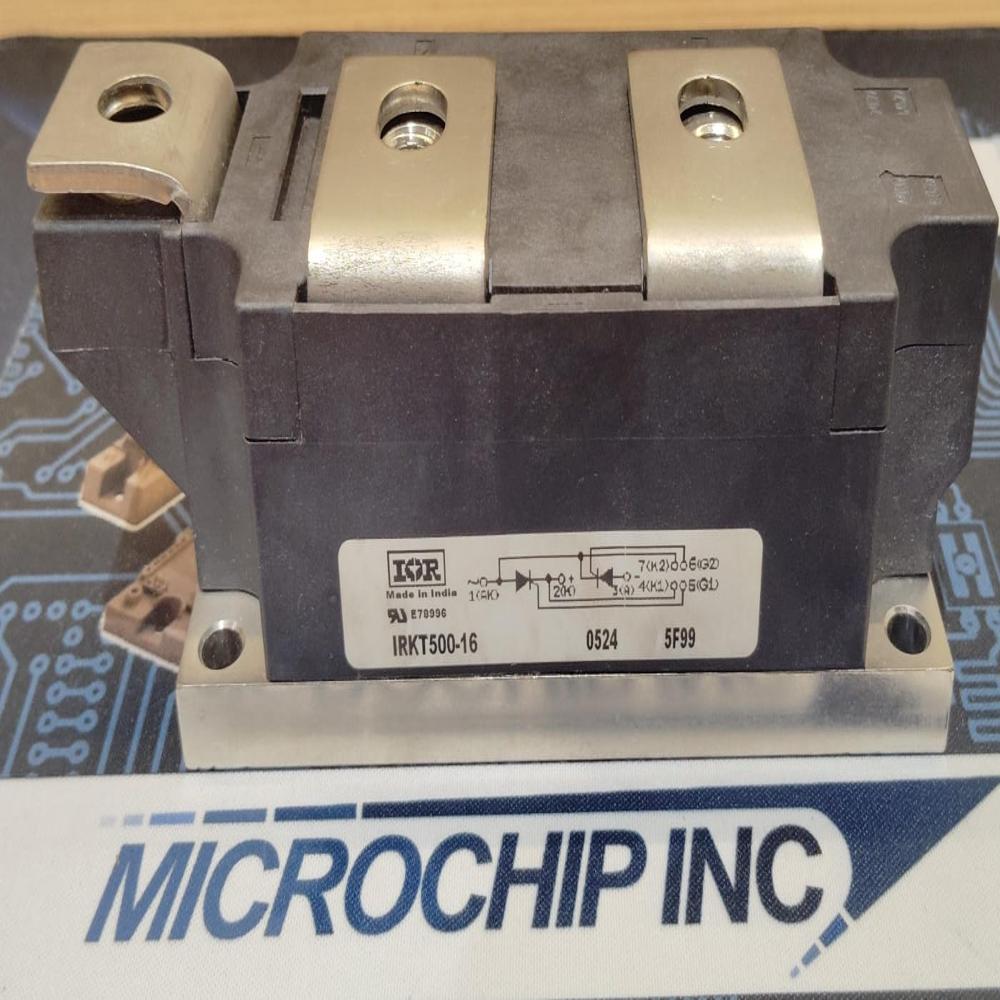

IRKT500-16 high-power SCR (thyristor) module,

Name: IRKT500-16 high-power SCR (thyristor) module,
Brand: MICROCHIP TECHNOLOGIES
Price: 9000.0 INR
Availability: InStock

Get a Price/Quote

MOQ : 1 Piece

IRKT500-16 high-power SCR (thyristor) module, Specification

Product Type
High-power SCR (thyristor) module

Supply Voltage
1600 V (Peak Repetitive Off-State Voltage)

Dissipation Power
Approximately 395 W (per junction, typical value)

Operating Temperature
-40C to 125C

Power Consumption
Dependent on application, typically very low in blocking state

Temperature Range
-40C to 125C

Input Voltage
Gate trigger voltage typically 2-3 V

Voltage Regulator Type
Not applicable (SCR module)

Size
Approx. 262 mm x 110 mm x 61 mm

Weight
Approx. 3.0 kg

Commutation Class
Class A, Line Commutated

Package
Industrial high-power module, insulated baseplate

Isolation Voltage
2500 V AC

Module Type
Three Phase Bridge SCR Module

Gate Trigger Current (Igt)
150 mA (max)

Surge Current (ITSM)
7200 A

Mounting
Bolt-on, panel mount

Average On-State Current (IT(AV))
500 A

Forward Voltage Drop (VTM)
1.65 V at 500 A

IRKT500-16 high-power SCR (thyristor) module, Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About IRKT500-16 high-power SCR (thyristor) module,

Experience the ineffable performance of the IRKT500-16 high-power SCR (thyristor) module-a must-have, kingly solution for demanding power applications. This praiseworthy, top-rated module features a limited stock availability, making it a coveted selection for professionals. Engineered as a Three Phase Bridge SCR Module, it boasts a formidable 7200A surge current and an average on-state current of 500A. With reliable bolt-on, panel mounting and an insulated baseplate, it excels in rectifiers, inverters, and AC motor drives. Secure this powerhouse for praiseworthy industrial-grade power control!

Used For, Features, Usage & Applications

The IRKT500-16 high-power SCR module is designed for robust power control, serving efficiently in rectifiers, inverters, and AC motor drives. With an impressive average on-state current of 500A and a surge capacity of 7200A, it's tailored for industrial environments requiring reliability. Key features include bolt-on mounting, panel compatibility, and a high isolation voltage. Ideally used in demanding power control scenarios, it enables precise, stable, and efficient operation in power supplies and large-scale automation systems.

Packaging Details, Payment Terms & Sample Policy

Each IRKT500-16 module is securely packed in a sturdy industrial-grade box to ensure safe arrival. We cater to both local and export markets, and competitive sale prices are available upon request. Orders are processed against an official purchase order, with multiple payment terms accepted for flexibility. Sample policies are available to facilitate evaluation before committing to bulk orders. For detailed export packaging or custom requirements, please contact our sales team for a tailored quotation.

FAQ's of IRKT500-16 high-power SCR (thyristor) module,:

Q: How is the IRKT500-16 high-power SCR module typically installed?

A: The module utilizes a bolt-on, panel mount design for secure and straightforward installation in industrial panels, ensuring reliable electrical connections and mechanical stability.

Q: What are the main benefits of using the IRKT500-16 in power control applications?

A: It offers exceptional current handling and surge resistance, with a kingly average on-state current of 500A and up to 7200A surge capacity, providing reliable operation in high-demand applications like rectifiers and AC drives.

Q: Where is the IRKT500-16 best utilized within an industrial setting?

A: This module excels in AC motor drives, power rectifiers, inverters, and high-capacity power supplies-where robust and dependable semiconductor switching is vital.

Q: What are the packaging and shipping options for export orders of the IRKT500-16?

A: Modules are safeguarded in industrial packaging and tailored to customer needs, with detailed export packaging available for bulk or overseas orders upon request.

Q: How does the ordering process work for distributors or bulk buyers in India?

A: Place a purchase order through our sales team. Flexible payment terms and sample policies are available, making bulk procurement efficient and secure for distributors and suppliers.

Q: What are the typical usage conditions and temperature ranges for the IRKT500-16?

A: The module operates reliably across a wide temperature range from -40C to 125C, handling varying power demands typical in industrial and automation applications.
