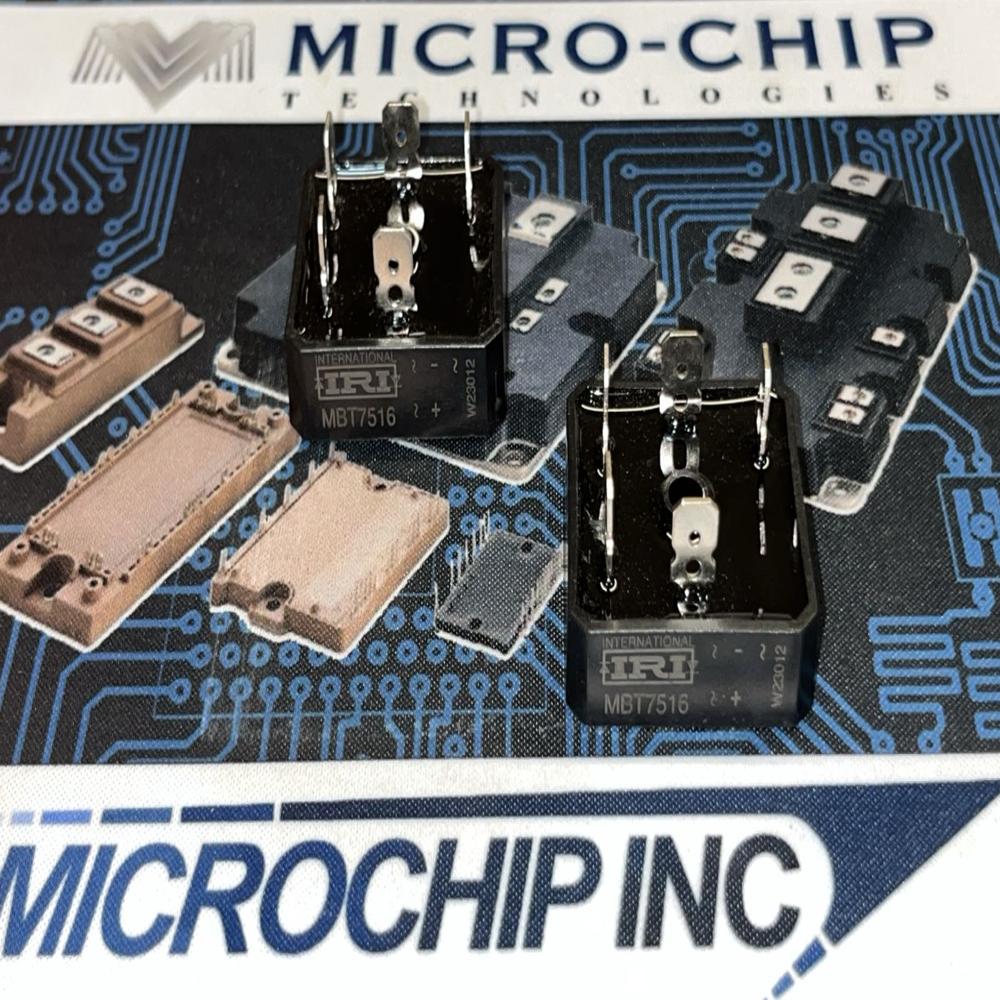

MBT7516 3-phase bridge rectifier module

Name: MBT7516 3-phase bridge rectifier module
Brand: MICROCHIP TECHNOLOGIES
Price: 450.0 INR
Availability: InStock

Price 450.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MBT7516 3-phase bridge rectifier module Specification

Output
DC output.

Usage
AC/DC rectification for power electronics and motor drives.

Power Source
External three-phase AC supply

Input
Three-phase AC (up to 1600V peak inverse voltage).

Response Time
Fast recovery diodes for efficient switching

Features
Epoxy encapsulated, robust construction, high reliability, low forward voltage drop, chassis mountable.

Power Supply
Three-phase AC main supply.

IP Rating
IP20

Operating Temperature
-40C to +150C

Components
6 Fast recovery diodes (fully sealed module)

Thermal Conductivity
Excellent heat dissipation via baseplate

Interface
Screw terminals for connection

Product Type
Bridge Rectifier Module

Application
Inductive heaters, variable frequency drives, AC motor controls, battery chargers, industrial power supplies.

Rated Voltage
1600V

Supply Voltage
Up to 1600V (AC input)

Size
Standard compact module

Dimension (L*W*H)
108 mm x 52 mm x 24 mm

Function
Three-phase AC to DC bridge rectifier conversion.

Color
Black module with metallic terminals.

Weight
Approx. 500g

Thickness
Module case thickness: approx. 24 mm

Current Rating
75A

Capacity
75A

Frequency
50/60Hz

Mounting
Base mounting with screw terminals

Case Material
Thermoplastic, insulated

Module Type
Isolated base module

Storage Temperature
-40C to +150C

Isolation Voltage
2500V AC

Surge Current (IFSM)
700A

Insulation Resistance
> 100M, 500V DC

Reverse Recovery Time
< 2.0 s

Peak Reverse Voltage
1600V

Dielectric Strength
Minimum 2.5kV AC

MBT7516 3-phase bridge rectifier module Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About MBT7516 3-phase bridge rectifier module

The MBT7516 3-phase bridge rectifier module is a top-rated solution crafted for exceptional AC to DC power conversion. Highlighted by its superlative 1600V Peak Reverse Voltage and resplendent 700A surge current capacity, this reserve module stands at the forefront of industrial-grade rectifiers. Featuring a fully-sealed, robust thermoplastic case and a remarkable isolation voltage of 2500V AC, it ensures safety and longevity. Designed for easy installation via screw terminals, its outstanding heat dissipation and low forward voltage drop make it a preferred choice for demanding power electronics and motor drive applications.

Exceptional Features and Industrial Applications

The MBT7516 distinguishes itself with special features including a fully encapsulated, insulated thermoplastic case, rapid recovery diodes, and robust chassis mounting. Its resplendent performance ensures reliable rectification in demanding environments. The module is ideally suited for inductive heaters, AC motor controls, and variable frequency drives. Direction of use involves mounting with screw terminals on a baseplate and interfacing with three-phase AC mains, delivering DC output with superior efficiency and safety.

Export Markets, Proposal Amount, and Certifications

MBT7516 serves significant export markets such as Southeast Asia, the Middle East, Africa, and Eastern Europe. The proposal amount is subject to detailed outlay and quotation, reflecting the superlative quality and high-performance standards. FOB Port includes major Indian seaports, ensuring smooth logistics. Certifications include IEC and CE compliance, underscoring its adherence to international safety and performance benchmarks, which makes it highly sought after by global distributors and suppliers.

FAQ's of MBT7516 3-phase bridge rectifier module:

Q: How does the MBT7516 3-phase bridge rectifier module benefit power electronics applications?

A: The MBT7516 provides exceptional, reliable AC to DC conversion with a high surge current capacity, superior insulation, and rapid switching, making it ideal for robust industrial usage and sensitive power applications.

Q: What is the process for mounting and connecting the MBT7516 rectifier module?

A: Installation is straightforward: securely base-mount the insulated module using screws and connect wiring through the practical screw terminals, ensuring correct phase inputs for optimal rectification performance.

Q: Where is the MBT7516 bridge rectifier module typically used?

A: This module is commonly utilized in industrial power supplies, battery chargers, inductive heaters, and motor drive controls due to its high reliability and efficiency under demanding electrical loads.

Q: When should I consider using the MBT7516 bridge rectifier over standard rectifiers?

A: Reserve the MBT7516 for applications requiring exceptional surge current handling, high reverse voltage protection, robust insulation, and consistent performance under fluctuating industrial conditions.

Q: How is the MBT7516 module designed to ensure safety and reliability?

A: It is constructed with a fully sealed, insulated thermoplastic case, high dielectric strength, and epoxy encapsulation, ensuring superlative insulation resistance and operational integrity.
