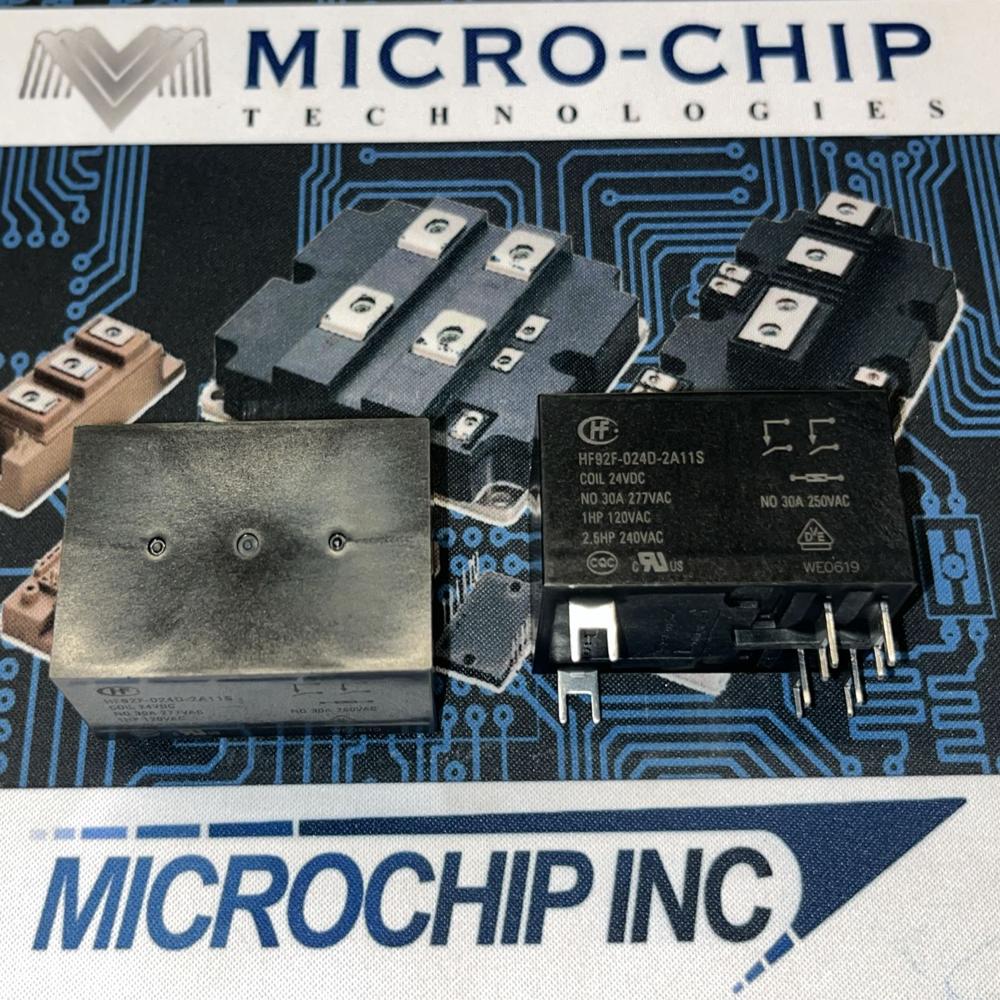

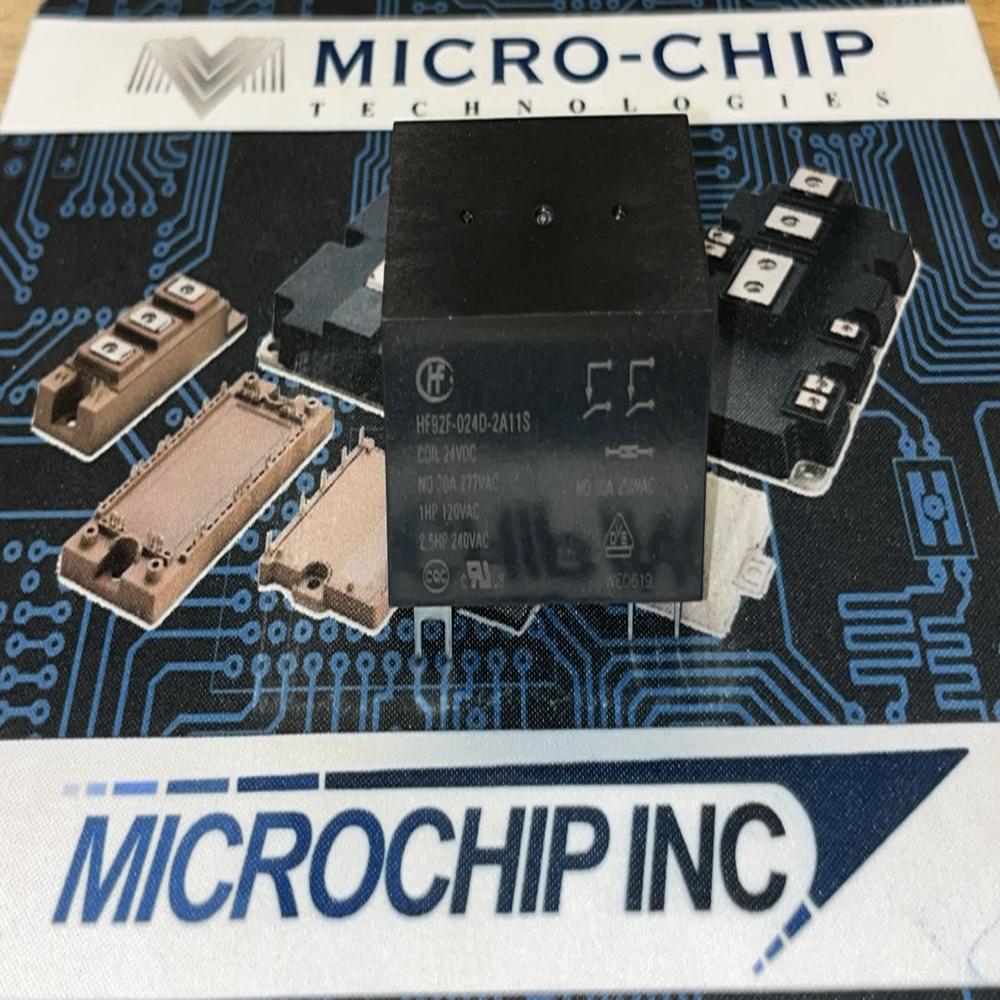

HF92F-024D-2A11S high-power PCB relay

Name: HF92F-024D-2A11S high-power PCB relay
Brand: MICROCHIP TECHNOLOGIES
Price: 1100.0 INR
Availability: InStock

Price 1100.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

HF92F-024D-2A11S high-power PCB relay Specification

Operating Temperature
-40C to +85C

Features
High-capacity, compact size, low coil power consumption, dual contacts

IP Rating
IP40

Output
Dual change-over contacts (DPDT)

Response Time
Operate: 15ms; Release: 10ms

Power Source
External 24V DC supply

Power Supply
DC

Interface
PCB mount

Usage
Industrial control, PCB mounting

Components
Silver alloy contacts, plastic enclosure, PCB terminals

Input
24V DC coil

Product Type
High-power PCB relay

Application
Industrial automation, Home appliances, HVAC

Rated Voltage
24V DC

Supply Voltage
24V DC

Size
Subminiature (standard PCB mount)

Dimension (L*W*H)
29 x 12.7 x 15 mm

Function
Switching high-current loads

Color
Black

Weight
Approximately 22g

Current Rating
16A

Thickness
Approximately 15mm

Capacity
16A 250V AC / 16A 30V DC

Frequency
50/60Hz (contact rating)

Shock Resistance
100m/s2 (operational)

Electrical Life
100,000 operations (min) at rated load

Contact Arrangement
2 Form C (DPDT)

Dielectric Strength
Between coil & contacts: 5000VAC 50/60Hz 1min; Between open contacts: 1000VAC 50/60Hz 1min

Contact Material
Silver alloy

Mechanical Life
10,000,000 operations (min)

Insulation Resistance
1000M min. (at 500VDC)

Maximum Switching Power
4000VA / 480W

Coil Power Consumption
Approximately 0.45W

Minimum Switching Load
100mA 5VDC

Mounting Type
PCB mount

Vibration Resistance
10~55Hz, amplitude 1.5mm

Contact Resistance
100m (at 6VDC 1A)

HF92F-024D-2A11S high-power PCB relay Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About HF92F-024D-2A11S high-power PCB relay

Redeem exceptional reliability and outstanding performance with the HF92F-024D-2A11S high-power PCB relay. This exclusive DPDT relay, highlighted by its unrivaled 16A current rating and grandiose 4000VA switching power, features premium silver alloy contacts for astounding conductivity. Compact yet robust, it offers distinguished insulation resistance and superior dielectric strength, ensuring safe switching in demanding industrial applications. With a subminiature form factor and low coil power consumption, this relay is optimal for industrial automation, HVAC, and home appliances, delivering unprecedented operational lifespan and efficiency.

Versatile Performance for Demanding Industries

The HF92F-024D-2A11S high-power PCB relay is widely used by industrial automation specialists, appliance manufacturers, and HVAC engineers. Its major advantage is the combination of compact design and high-capacity switching. Highlighted features of this relay include dual change-over contacts, phenomenal mechanical life of up to 10 million cycles, and low expenditure on power consumption, making it ideal for equipment requiring endurance and performance in restricted spaces.

Reliable Supply and Prompt Delivery Across India

Our exclusive distribution network guarantees a consistent supply ability to meet industrial-scale needs. Freight and transport services are optimized for expedited delivery, minimizing total expenditure for clients. We ensure rapid fulfillment with domestic delivery times that meet industry expectations, making the HF92F-024D-2A11S relay readily available across all main domestic markets in India.

FAQ's of HF92F-024D-2A11S high-power PCB relay:

Q: How is the HF92F-024D-2A11S relay typically used in industrial applications?

A: This relay is employed for switching high-current loads in industrial automation systems, control panels, home appliances, and HVAC setups due to its high contact rating and durability.

Q: What are the main features that benefit users of the HF92F-024D-2A11S relay?

A: Users benefit from its dual DPDT contacts, high-insulation resistance, compact subminiature size, and extended mechanical and electrical lifespan, ensuring reliable performance in space-constrained environments.

Q: Where can the HF92F-024D-2A11S relay be sourced in India?

A: The HF92F-024D-2A11S relay is available through authorized distributors, importers, and suppliers across India, ensuring easy accessibility and timely support.

Q: What is the process for installing this high-power relay on a PCB?

A: Installation involves soldering the relay's PCB terminals directly to the circuit board, ensuring a secure electrical and mechanical interface for industrial equipment.

Q: When should this relay be considered over standard power relays?

A: Consider the HF92F-024D-2A11S relay when your application demands a compact component with high switching capacity, long operational life, and reliable performance for frequent operations.

Q: How does the supply and delivery of the HF92F-024D-2A11S relay benefit customers?

A: Optimized freight and transport options ensure customers in India receive prompt delivery, reducing downtime and overall expenditure related to relay procurement.
