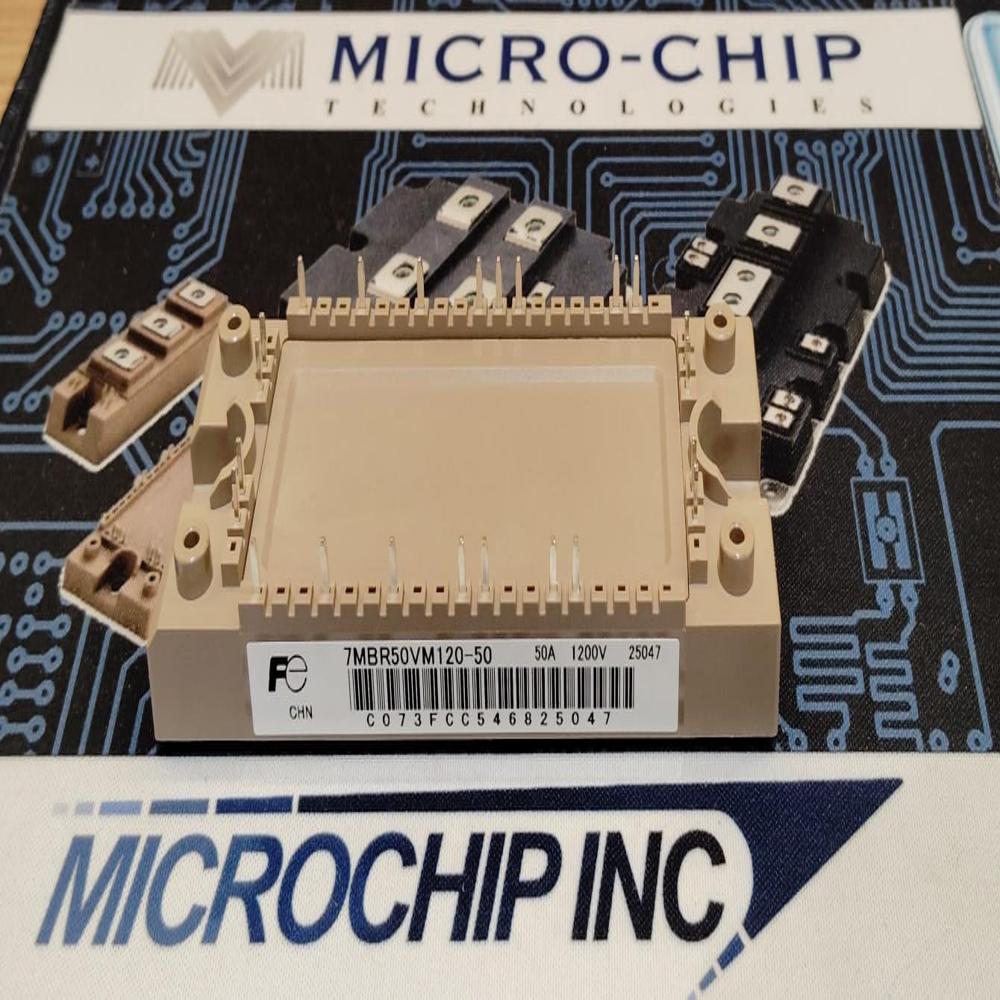

7MBR50VM120-50 FUJI IGBT MODULE

Name: 7MBR50VM120-50 FUJI IGBT MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 4700.0 INR
Availability: InStock

Price 4700.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

7MBR50VM120-50 FUJI IGBT MODULE Specification

Power Supply
Electrical

Operating Temperature
-40C to +150C

Components
7 IGBT Transistors + 7 Free Wheeling Diodes (7 in 1 Module)

Sensors Specification
No integrated sensors

Usage
Industrial Automation, Motor Drives, Inverters

Input
Controlled via gate drive circuit

Power Source
External DC supply

Response Time
Fast switching <1s

Display Type
No display

Features
Low saturation voltage, high-speed switching, built-in protection diodes

IP Rating
Not rated

Output
Up to 50A per module

Interface
Screw terminal

Thermal Conductivity
Integrated copper base plate for high thermal conduction

Product Type
IGBT Module

Application
AC Motor Control, Inverter Systems, Power Management

Rated Voltage
1200V

Supply Voltage
1200V Max

Size
Standard power module size

Dimension (L*W*H)
107mm x 61mm x 30mm

Function
IGBT Power Module

Color
Black / Brown

Weight
Approx. 350g

Current Rating
50A

Thickness
Approximately 30mm

Capacity
50A continuous current

Frequency
50/60Hz (typical switching frequency up to 20kHz)

Manufacturing Brand
Fuji Electric

Collector-Emitter Voltage (Vce)
1200V (Maximum)

Mounting Type
Panel/Chassis Mount

Humidity Range
<95% RH (non-condensing)

Gate-Emitter Voltage
20V (Maximum)

Heat Sink Requirement
External heat sink required

Module Configuration
7-in-1 (Seven IGBTs in one package)

Package Type
Rectangular, insulated base

RoHS Compliance
Yes

Storage Temperature
-40C to +125C

Isolation Voltage
2500Vrms (AC, 1 minute)

Driver Circuit
Required, not included

Collector Current (Ic)
50A (Maximum)

7MBR50VM120-50 FUJI IGBT MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About 7MBR50VM120-50 FUJI IGBT MODULE

Presenting the sizzling 7MBR50VM120-50 FUJI IGBT MODULE, famed for its reliability and performance. Featuring a 7-in-1 configuration (seven IGBTs plus free wheeling diodes), this module delivers a marvelous 1200V collector-emitter voltage and an impressive 50A current capacity. Its pristine, insulated base and integrated copper plate ensure excellent thermal conductivity. Highlighted by low saturation voltage and speedy switching (<1s), it's perfect to grab for demanding motor drives, inverters, and power management systems. Trust Fuji Electric for robust, RoHS-compliant solutions in your industrial automation projects.

Competitive Advantages, Applications, and Features of 7MBR50VM120-50 FUJI IGBT MODULE

This module grabs attention with superior efficiency and compact design, making it a perfect fit for industrial automation, AC motor control, and inverter systems. It offers highlighted features like fast response times, high thermal conductivity, and robust construction. The pristine copper base maximizes heat dissipation, while the built-in protection diodes provide long-term reliability. Its seven-in-one design ensures space-saving integration and enhanced performance, giving you a competitive edge in demanding power management applications.

Delivery, Shipping, and Main Export Markets for 7MBR50VM120-50 FUJI IGBT MODULE

Sizzling express shipping options ensure that your 7MBR50VM120-50 FUJI IGBT MODULE reaches you rapidly, maximizing project uptime. Shipped goods are dispatched from leading distribution hubs, typically delivered within 2-7 business days, depending on location. FOB ports include Mumbai for seamless transportation logistics. We serve main export markets such as India, Southeast Asia, Europe, and the Middle East, providing reliable and secure delivery services for our international clientele.
