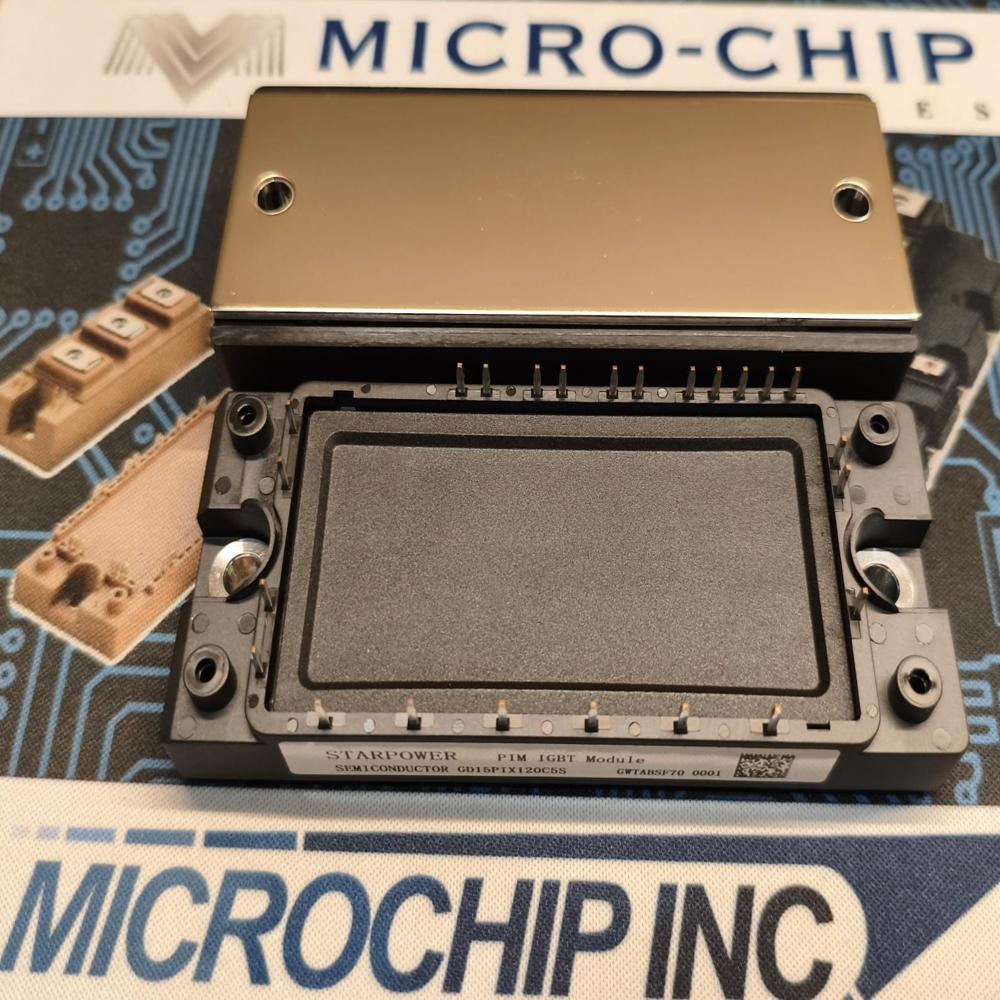

GD15PIX120C5S IGBT Power Module

Name: GD15PIX120C5S IGBT Power Module
Brand: MICROCHIP TECHNOLOGIES
Price: 2500.0 INR
Availability: InStock

Price 2500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

GD15PIX120C5S IGBT Power Module Specification

Product Type
IGBT Power Module

Supply Voltage
Up to 1200V

Dissipation Power
15A

Operating Temperature
-40C to +150C

Power Consumption
Depends on application and load

Temperature Range
-40C to +150C

Input Voltage
Standard gate drive voltages required for IGBT operation (typically 15V for gate)

Voltage Regulator Type
Internal circuit design

Size
Approx. 62 x 33 x 12 mm

Weight
Approx. 82 g

Storage Temperature Range
-55C to +150C

Maximum Collector Current (Ic)
15A

Isolation Voltage
2500V AC min. (between terminals and heatsink)

Gate Threshold Voltage (Vge)
4V min. / 7V max.

Switching Frequency
Up to 20 kHz (depending on thermal management and load)

Package Type
Standard industrial power module housing

Maximum Collector-Emitter Voltage (Vce)
1200V

Mounting
Screw type

Compliance
RoHS Compliant

Thermal Resistance
Junction to Case, Rth(j-c): Typically 0.5C/W

GD15PIX120C5S IGBT Power Module Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About GD15PIX120C5S IGBT Power Module

Get commanding performance with the GD15PIX120C5S IGBT Power Module-a cost-effective solution for robust industrial applications. This lustrous module boasts a maximum collector-emitter voltage of 1200V and sustains up to 15A, engineered for sublime power electronic circuits, inverters, motor drives, and UPS. Designed in a standard housing with a screw-type mount, it ensures secure installation and reliable isolation (2500V AC min.). RoHS compliant and temperature resistant from -40C to +150C, this module is a promotion for your efficiency and operational excellence.

Lustrous Features & Versatile Uses

The GD15PIX120C5S IGBT Power Module stands out with sublime switching up to 20 kHz, a rugged screw-type mount, and commanding isolation voltage. Designed for commercial settings, it excels in industrial automation, power converters, and motor drives. Used as a core component in UPS systems or critical inverter applications, this module delivers reliability and performance in demanding environments. Its compact size and efficient thermal management make it a cost-effective solution for modern power electronics.

Quick Dispatch & Reliable Packaging

Enjoy rapid delivery of the GD15PIX120C5S, with transportation arranged for nationwide reach across India. Estimate delivery times are communicated promptly upon order confirmation, ensuring transparency. Quick dispatch and secure packaging guarantee the module's integrity during transit. We offer flexible sample policies for evaluation purposes, supporting customer confidence before bulk purchases. Each unit is meticulously packaged to safeguard against damage, reflecting our commitment to safe and timely delivery every time.

FAQ's of GD15PIX120C5S IGBT Power Module:

Q: How should the GD15PIX120C5S IGBT Power Module be installed?

A: The module is designed for screw-type mounting, allowing secure and stable installation in industrial power systems. Always follow proper safety guidelines and use appropriate insulation methods to ensure safe operation.

Q: What commercial applications can benefit from using the GD15PIX120C5S?

A: This module is ideal for inverters, industrial automation systems, UPS, and high-efficiency motor drives, providing reliable high-current handling and commanding voltage ratings.

Q: When can I expect delivery after placing an order for the GD15PIX120C5S?

A: Estimate delivery timeframes are shared upon confirmation of your order. Quick dispatch and efficient transportation are prioritized for all shipments throughout India.

Q: Where can the GD15PIX120C5S IGBT Power Module be sourced?

A: The module is available through authorized distributors, importers, and suppliers across India, ensuring accessibility and reliable support.

Q: What is the process for requesting a sample of the GD15PIX120C5S module?

A: Contact your distributor or supplier to request a sample. Sample policies vary but typically support pre-purchase evaluation.

Q: How does the module ensure safety and reliability during operation?

A: With a 2500V AC isolation voltage, robust construction, and comprehensive thermal management, the module is compliant with RoHS and built for safe, long-term operation in varied temperatures.
