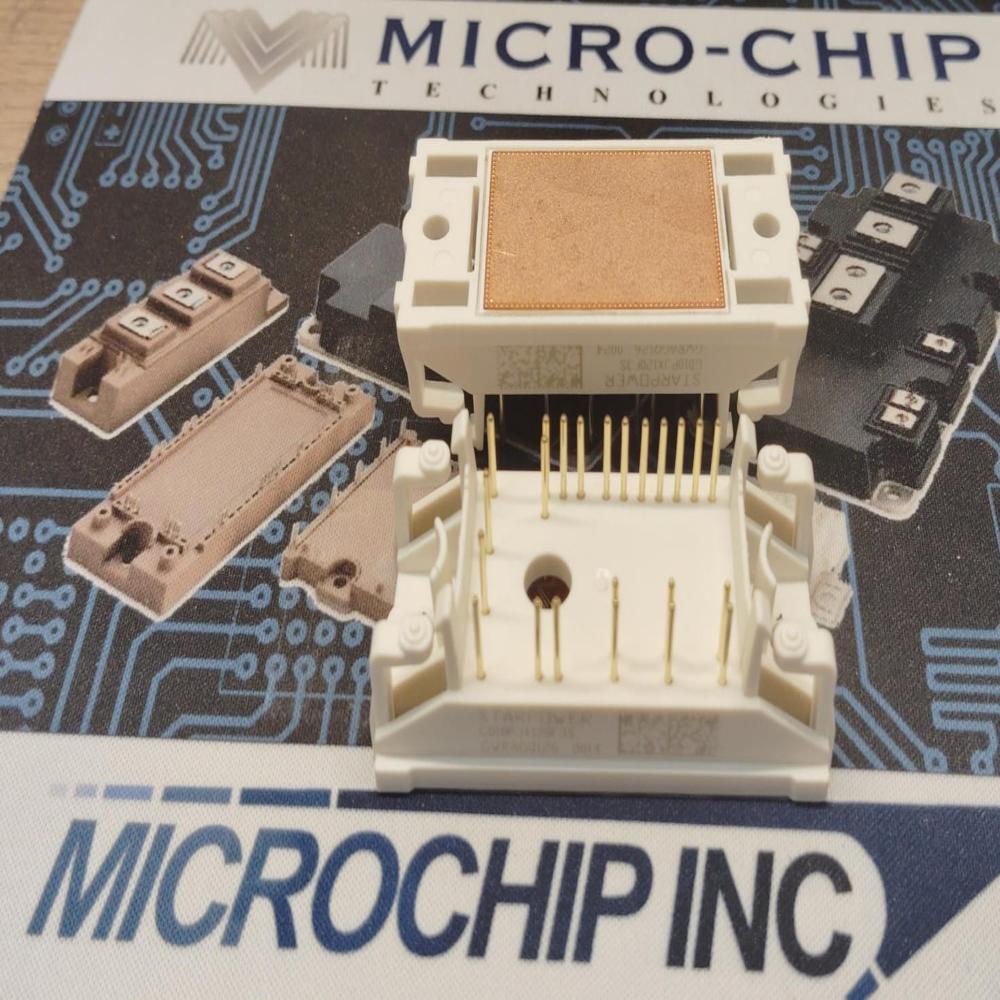

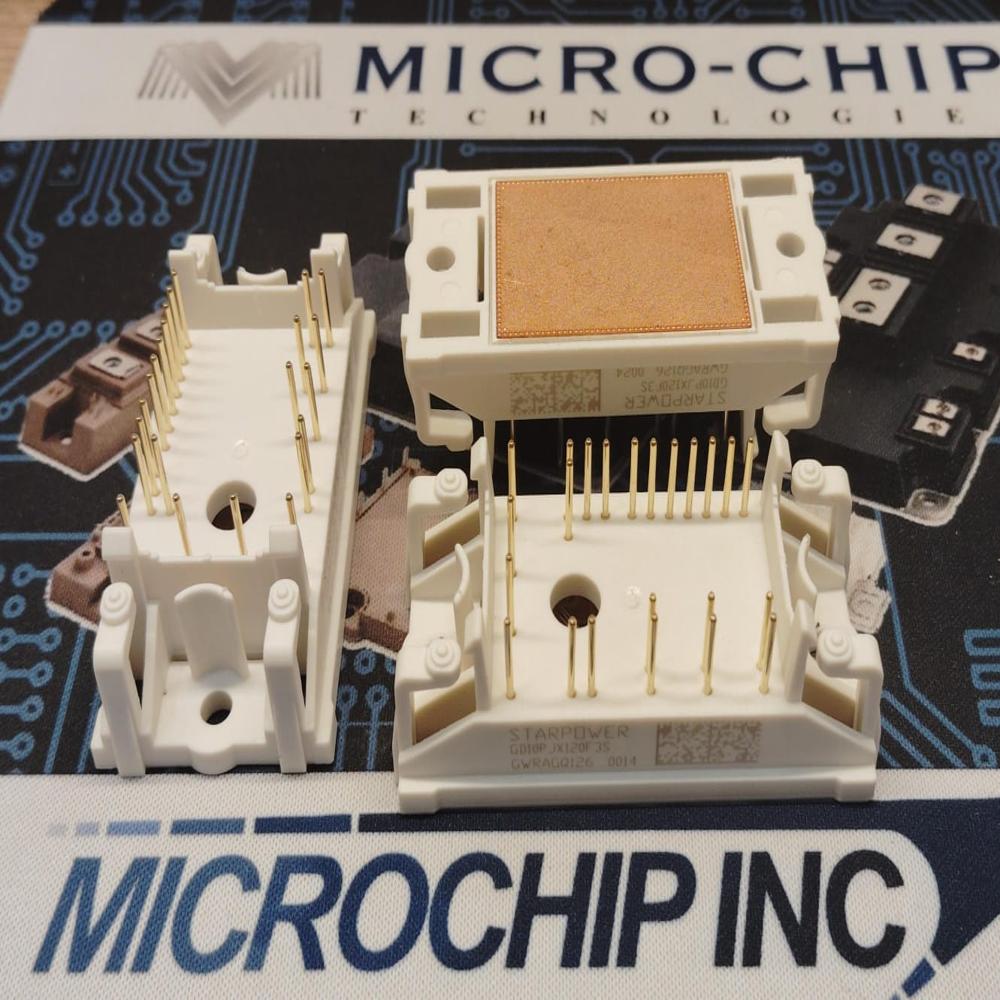

GD10PJX120F3S IGBT power module

Name: GD10PJX120F3S IGBT power module
Brand: MICROCHIP TECHNOLOGIES
Price: 2500.0 INR
Availability: InStock

Price 2500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

GD10PJX120F3S IGBT power module Specification

Product Type
IGBT Power Module

Supply Voltage
1200V

Dissipation Power
950W

Operating Temperature
-40C to +150C

Power Consumption
Depends on Application Load

Temperature Range
-40C to +150C

Input Voltage
Gate Trigger Voltage: 15V (typical)

Voltage Regulator Type
Not Integrated

Size
Approx. 135mm x 45mm x 30mm

Weight
Approx. 350g

Turn-On/Off Time
400ns / 900ns (typical)

Collector-Emitter Voltage (Vce)
1200V

Collector Current (IC)
50A

Isolation Voltage
2500V AC/min

Switching Frequency
Up to 20kHz

Gate-Emitter Voltage (Vge)
20V

RoHS Compliance
Yes

Configuration
Half Bridge

Storage Temperature Range
-40C to +125C

Mounting
Panel Mount

Module Package
Industry Standard Module, Screw Terminal

GD10PJX120F3S IGBT power module Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

GD10PJX120F3S IGBT power module About

Introducing the scarce and latest GD10PJX120F3S IGBT power module-a paragon of engineering excellence and reliability. Designed for heroic industrial performance, this hot deal features a robust half-bridge configuration, supporting up to 50A collector current and a 1200V collector-emitter voltage. Its industry-standard module with screw terminals and panel mounting ensures seamless installation. Boasting high isolation voltage (2500V AC/min) and rapid switching speeds, it is ideal for demanding applications. RoHS compliant and temperature resilient, it sets new benchmarks for industrial motor drives, inverters, and UPS systems in India. Secure this excellent performer now and elevate your power management.

Versatile Applications in Power Electronics

The GD10PJX120F3S IGBT power module is engineered for use in applications such as industrial motor drives, inverters, power supplies, UPS systems, and servo controls. Its half-bridge structure and robust construction make it an excellent choice across various commercial uses. The module's advanced design ensures durability on any application surface, handling demanding temperature fluctuations and operating conditions. It is tailored to meet the needs of manufacturers and system integrators pursuing efficiency and reliability in challenging industrial environments.

Global Export Reach and Reliable Supply Chain

Serving global and domestic markets alike, the GD10PJX120F3S is packaged securely for express shipping and prompt arrival. Our supply chain guarantees consistent availability to distributors, importers, and suppliers throughout India and beyond. Each module is delivered in industry-standard packaging to ensure product integrity, ready for swift deployment in commercial projects. Leverage our extensive stock and dependable logistics for a seamless procurement experience and uninterrupted industrial operations.

FAQ's of GD10PJX120F3S IGBT power module:

Q: How is the GD10PJX120F3S IGBT power module typically used in industrial settings?

A: The GD10PJX120F3S IGBT power module is commonly used in industrial motor drives, inverters, power supplies, UPS systems, and servo controls, providing efficient switching and high current handling for demanding applications.

Q: What benefits does the GD10PJX120F3S offer compared to standard IGBT modules?

A: This module offers high collector-emitter voltage (1200V), a significant current rating (50A), and excellent thermal stability, ensuring reliability, efficiency, and versatility in harsh industrial environments.

Q: When should I consider upgrading to the GD10PJX120F3S in my power solution?

A: Upgrade to the GD10PJX120F3S when you require enhanced performance, faster switching times, or greater durability in your systems, especially for high-intensity industrial or commercial applications.

Q: Where can I purchase the GD10PJX120F3S IGBT power module in India?

A: The module is available through authorized distributors, importers, and suppliers across India, all of whom offer secure packaging, express shipping, and reliable after-sales support.

Q: What is the process for installing the GD10PJX120F3S module?

A: Installation involves the panel mount method using screw terminals. It is essential to ensure proper isolation and cooling according to the datasheet for optimal performance. Always follow manufacturer guidelines for safety and efficiency.
