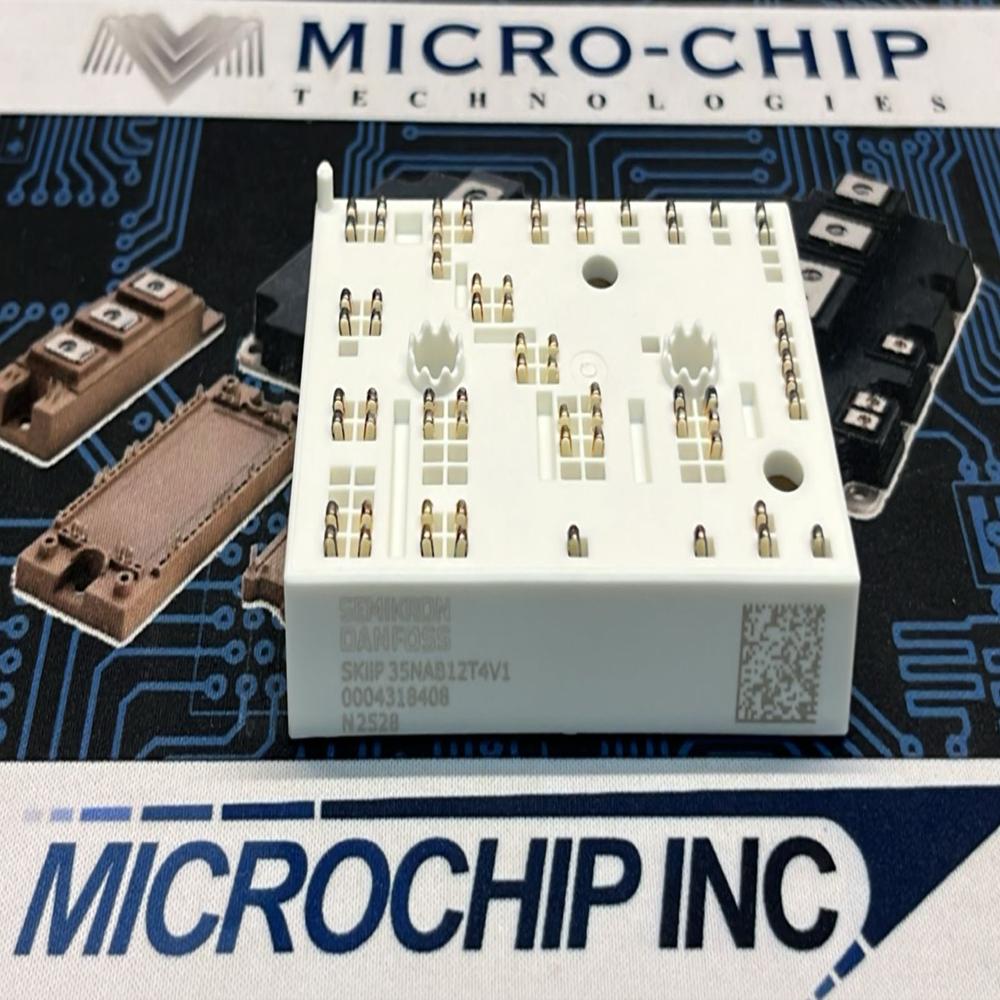

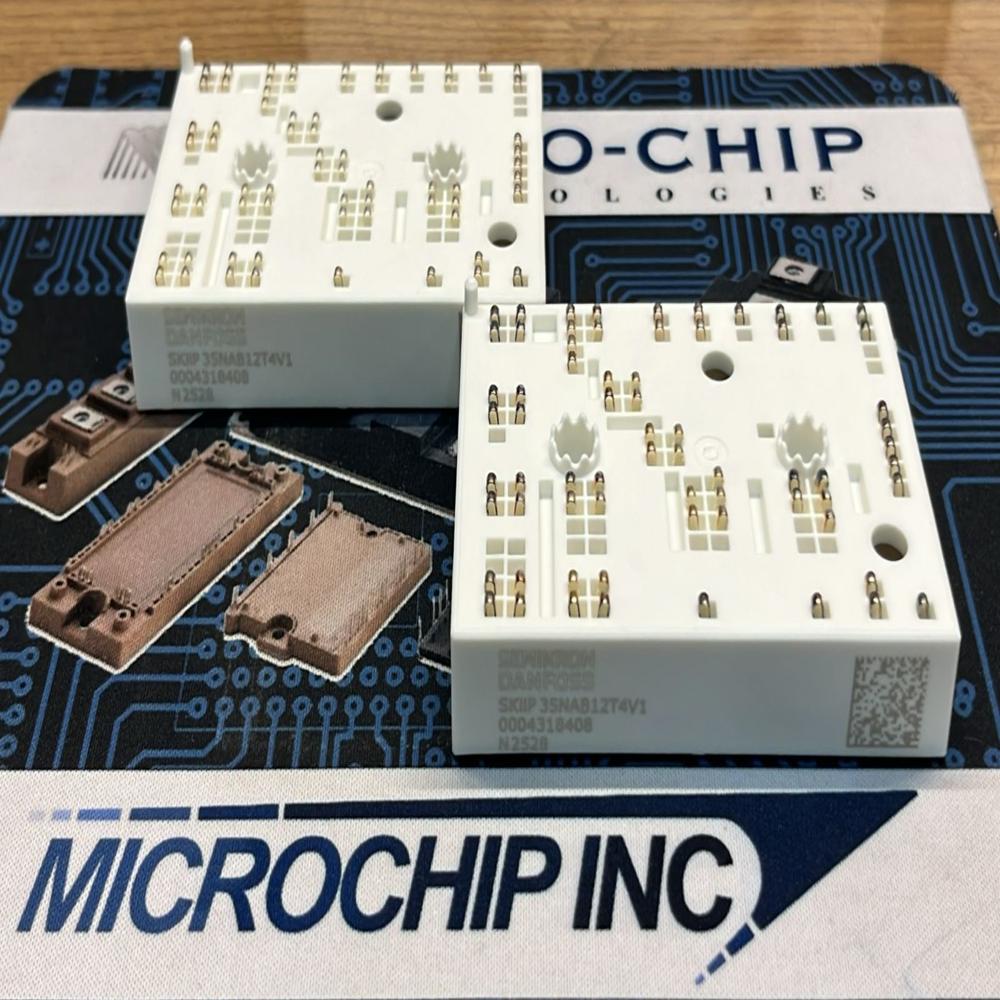

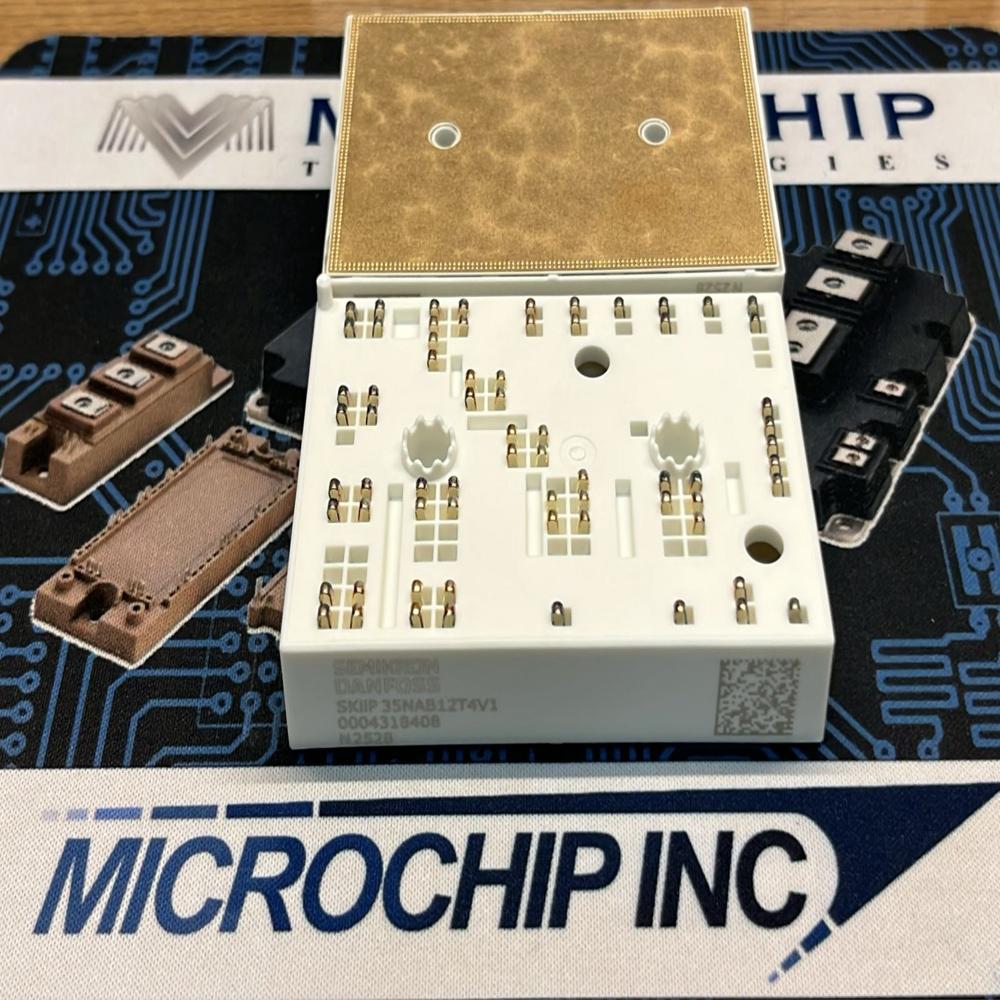

SKiiP 35NAB12T4V1 Semikron IGBT Module

Name: SKiiP 35NAB12T4V1 Semikron IGBT Module
Brand: MICROCHIP TECHNOLOGIES
Price: 6400.0 INR
Availability: InStock

Price 6400.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SKiiP 35NAB12T4V1 Semikron IGBT Module Specification

Product Type
IGBT Module

Application
Industrial Drives, Renewable Energy Systems, Power Supplies, Inverters

Supply Voltage
Up to 1200 V

Dissipation Power
86 W (typical)

Operating Temperature
-40C to +150C

Power Consumption
Depends on Load, Refer Datasheet

Temperature Range
-40C to +150C

Input Voltage
1200 V

Size
Approx. 106 mm x 62 mm x 30 mm

Weight
Approx. 340 g

Current Rating (IC)
35 A

Short Circuit Protection
Yes, integrated

Control Interface
Fiber optic or standard connectors

Suitable For
High-power industrial applications

Module Design
SKiiP (power electronic stack format with integrated driver and protection)

Configuration
3-phase bridge with integrated driver and temperature sensor

Thermal Interface
Pre-applied thermal interface material

Gate Driver
Integrated

Isolation Voltage
2500 V AC (RMS)

Switching Frequency
up to 20 kHz

Mounting
Screw mounting

Package
Module with baseplate

SKiiP 35NAB12T4V1 Semikron IGBT Module Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About SKiiP 35NAB12T4V1 Semikron IGBT Module

Introducing the new SKiiP 35NAB12T4V1 Semikron IGBT Module, the acclaimed solution for high-power industrial applications. This first-class SKiiP power stack features an integrated gate driver, temperature sensor, and celebrated short circuit protection for superior reliability. With a current rating of 35A and isolation voltage of 2500V AC, it's tailored for industrial drives, renewable energy systems, and inverters. The laureate baseplate design ensures optimal thermal management, while fiber optic or standard control interfaces maximize integration flexibility. Pick yours from leading distributors, importers, and suppliers across India for unbeatable performance and value.

Applications and Advanced Features of SKiiP 35NAB12T4V1

The SKiiP 35NAB12T4V1 Semikron IGBT Module stands out in demanding environments such as industrial drives, renewable energy systems, and high-performance power supplies. Its extra features, including an integrated gate driver, pre-applied thermal interface material, and robust short circuit protection, make it ideal for challenging applications. Easy screw mounting and flexible control interfaces ensure specific usability for seamless integration into your power conversion setups.

Certifications, Delivery, and Availability Information

This SKiiP 35NAB12T4V1 module meets essential industry certifications to guarantee reliable performance and safe operation. Quick drop-off options and products dispatched promptly across India ensure you receive your order quickly, with sample units available for evaluation. Flexible freight choices further streamline logistics, granting efficient delivery tailored to your project timelines and demands.

FAQ's of SKiiP 35NAB12T4V1 Semikron IGBT Module:

Q: How is the SKiiP 35NAB12T4V1 module commonly used in industry?

A: The SKiiP 35NAB12T4V1 module finds widespread usage in high-power applications such as industrial motor drives, renewable energy inverters, and robust power supplies requiring efficient and reliable power conversion.

Q: What benefits does the integrated gate driver provide?

A: The integrated gate driver enhances system efficiency and simplifies installation, reducing the need for separate driving circuitry while ensuring fast and consistent IGBT switching.

Q: Where can I purchase the SKiiP 35NAB12T4V1 module in India?

A: You can source this module from prominent distributors, importers, and suppliers specializing in Semikron components across India, supporting both online and offline procurement.

Q: When can I expect delivery after placing an order?

A: Most orders for the SKiiP 35NAB12T4V1 are dispatched promptly, with delivery times depending on freight choice and location. Many suppliers offer quick drop-off options for urgent requirements.

Q: What certifications does this IGBT module comply with?

A: The SKiiP 35NAB12T4V1 abides by key international safety and performance certifications, ensuring it meets stringent industrial standards for operation and reliability.

Q: How does the module ensure thermal stability during operation?

A: With a pre-applied thermal interface material and baseplate design, the module offers excellent heat dissipation, supporting operation within -40C to +150C for extended durability.
