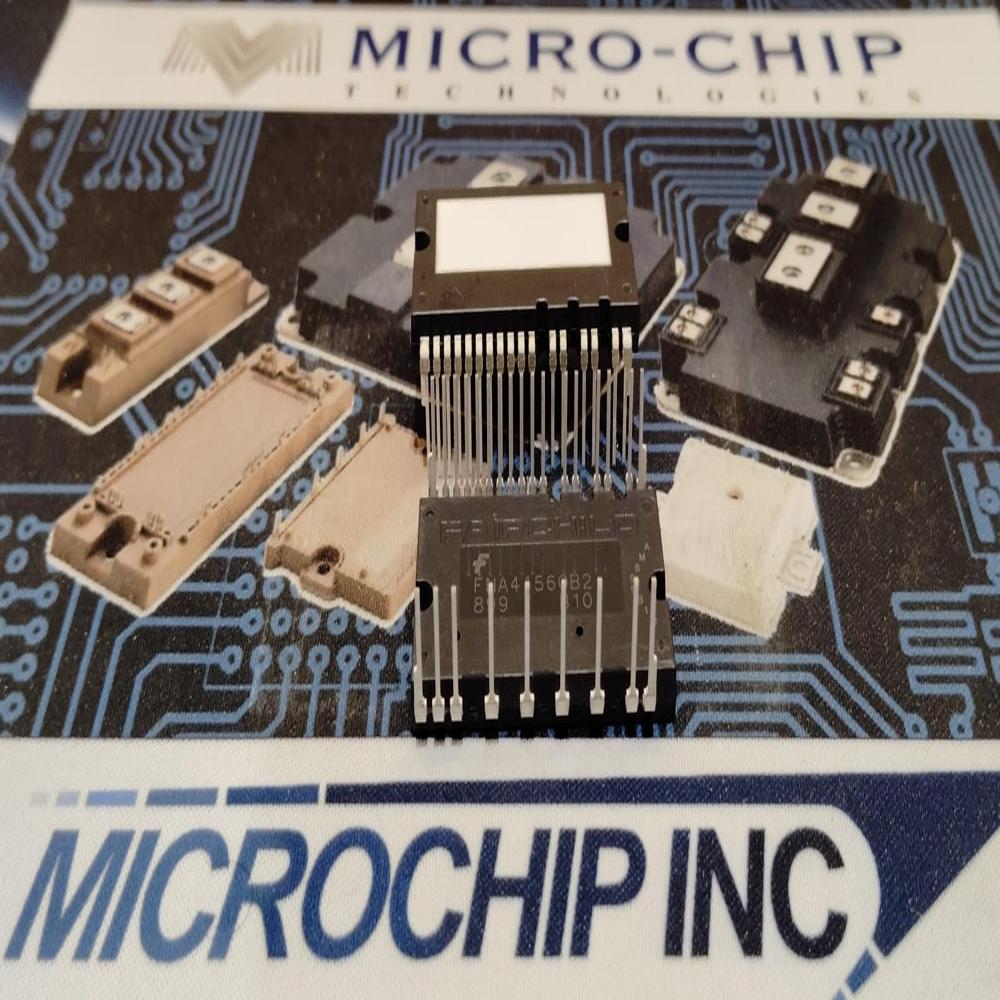

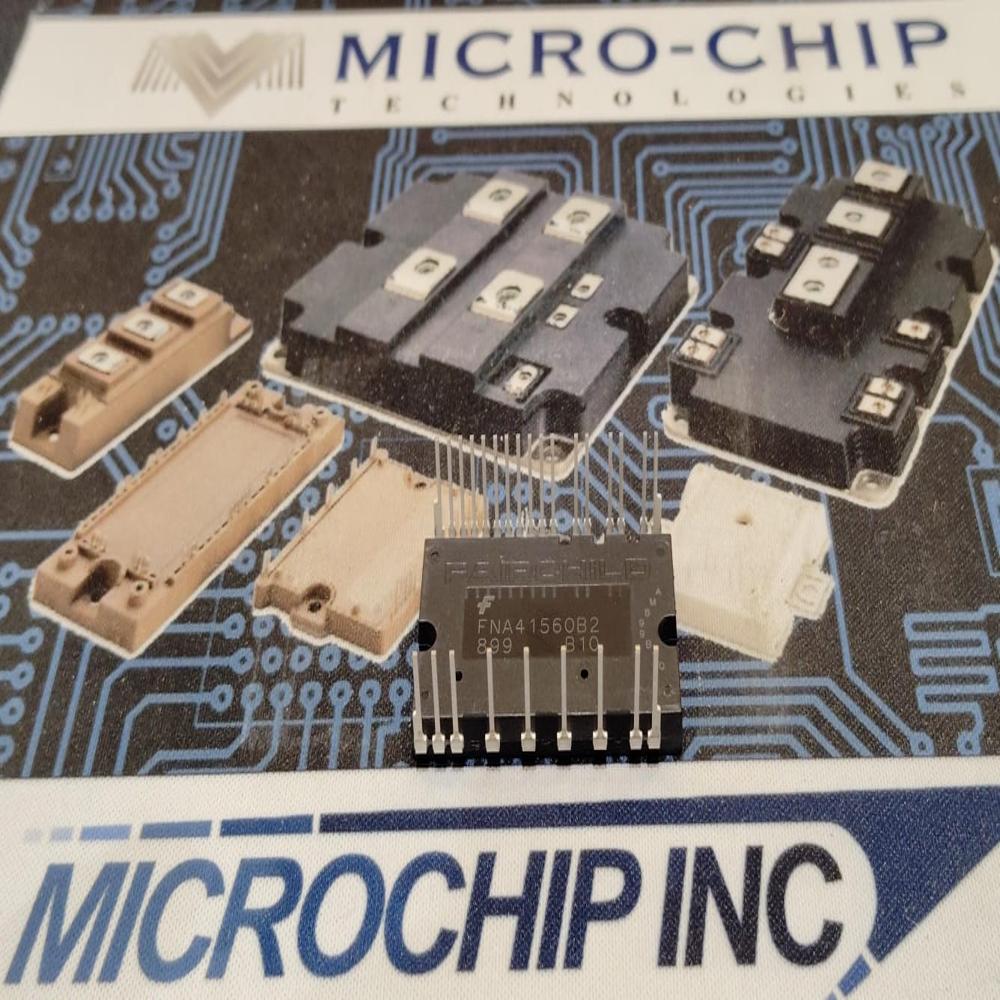

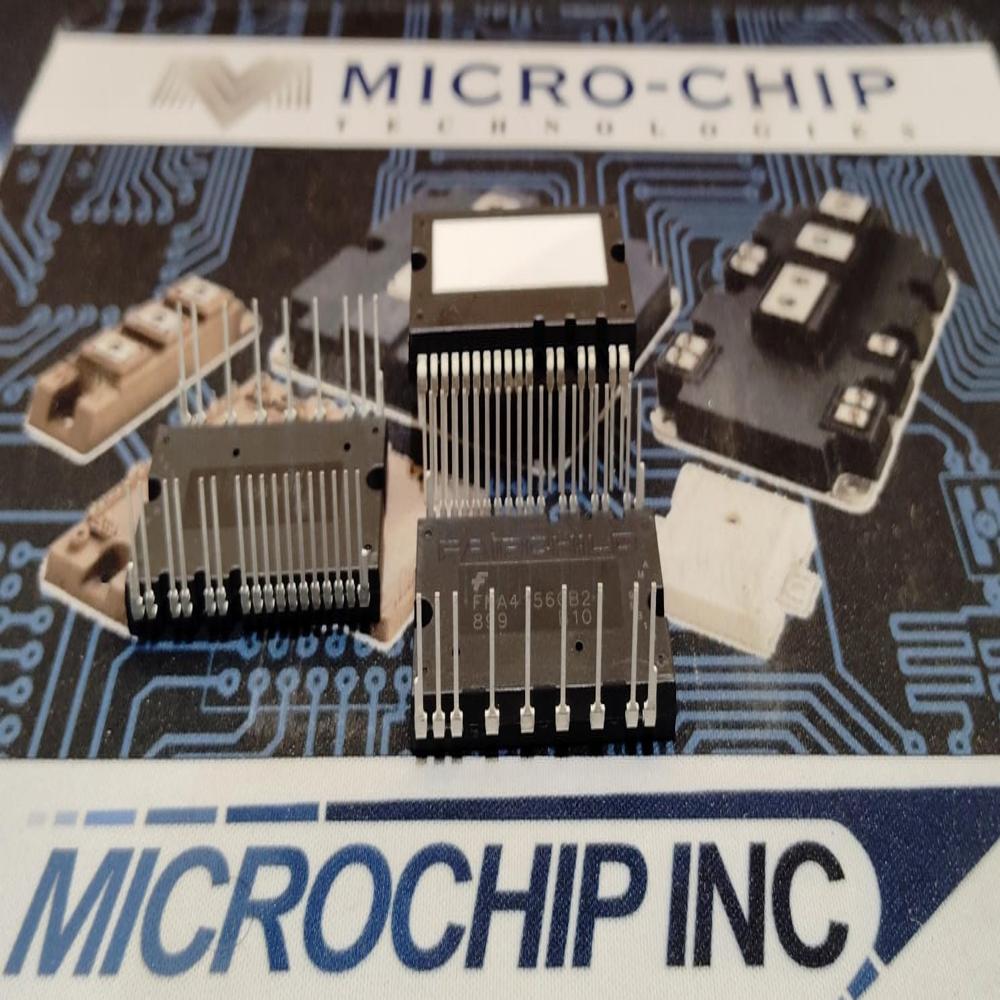

FNA41560B2 IPM MODULE

Name: FNA41560B2 IPM MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 1500.0 INR
Availability: InStock

Price 1500.0 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

FNA41560B2 IPM MODULE Specification

Resistance
Low On-State Resistance

Output
3-Phase Motor Drive Output

Type
Intelligent Power Module (IPM)

Accuracy
High Precision

Operating Voltage
Up to 600V

Output Voltage
600V

Storage Temperature
-55C to +150C

Operating Temperature
-40C to +125C

Dimensions
96 mm x 55 mm x 14 mm (approx.)

Integrated Functions
Overcurrent, Short Circuit, Undervoltage Lockout, Overtemperature Protection

Weight
Approx. 120g

Package Type
SIP (Single Inline Package)

Current Rating
15A

Gate Drive Voltage
+15V/-8V

Applications
General Purpose Inverter, AC Motor Drives, Industrial Equipment

Switching Frequency
Up to 20kHz

Mounting Style
Through Hole

Isolation Voltage
2500Vrms (min)

FNA41560B2 IPM MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About FNA41560B2 IPM MODULE

Unlock distinguished power and advanced efficiency with the FNA41560B2 IPM Module. Its lustrous performance is engineered for breathtaking control in demanding industrial and motor drive applications. Featuring a 15A current rating and a switching frequency up to 20kHz, this Mitsubishi 6in1 IGBT module ensures reliable operation with built-in overcurrent, short circuit, undervoltage lockout, and overtemperature protection. With a resilient SIP package and robust isolation voltage of 2500Vrms, it's your go-to choice as a distributor, importer, or supplier across India. Add to Cart now for an advance purchase and elevate your systems with this precise, high-performance IPM module.

FNA41560B2 IPM Module: Commercial Advantages & Key Uses

Ideal for general-purpose inverters, AC motor drives, and industrial equipment, the FNA41560B2 IPM Module delivers high-precision motor control. Its integrated protections and 3-phase output ensure machine reliability and longevity, making it suitable for robust commercial operations. The module's durable SIP design supports easy through-hole mounting and efficient thermal management, enabling seamless incorporation into advanced automation systems and industrial machinery for dependable, long-lasting performance.

FNA41560B2 IPM Module: Domestic Market Reach & Sample Policy Details

Catering primarily to the Indian market, the FNA41560B2 IPM Module is available for prompt delivery, with sample rates tailored for interested clients. Samples can be handed over swiftly following purchase approval, ensuring minimal wait times. Our structured sample policy supports evaluation and testing, offering you confidence before committing to bulk orders. Our strong domestic distribution network guarantees timely delivery and reliable support to manufacturers and developers alike.

FAQ's of FNA41560B2 IPM MODULE:

Q: How does the FNA41560B2 IPM Module benefit industrial applications?

A: The FNA41560B2 offers highly reliable motor control with integrated protections like overcurrent, short circuit, under-voltage lockout, and overtemperature. Its high switching frequency and low on-state resistance ensure efficient, low-loss operation, maximizing productivity in industrial settings.

Q: What are the primary commercial uses of this IPM module?

A: This module is typically used in general-purpose inverters, AC motor drives, and industrial machinery where precise, reliable 3-phase motor control is critical.

Q: When will a purchased FNA41560B2 IPM Module be delivered to customers in India?

A: Upon successful purchase or advance purchase, modules are prepared for immediate delivery, and our domestic network ensures swift handover to clients across India.

Q: Where can I request a sample or purchase the FNA41560B2 IPM Module?

A: Samples and bulk purchases can be arranged directly through authorized distributors, importers, or suppliers in India. Sample requests are honored quickly, subject to sample policy guidelines.

Q: What is the process for obtaining a sample of the FNA41560B2 IPM Module?

A: Submit a request with your requirements; after approval and payment of the sample rate, the sample will be promptly handed over or shipped as per your delivery preference.

Q: How precise is motor control with the FNA41560B2 IPM Module?

A: The module is engineered for high-precision output and consistency, aided by Mitsubishi 6in1 IGBT technology and advanced integrated protection features.
