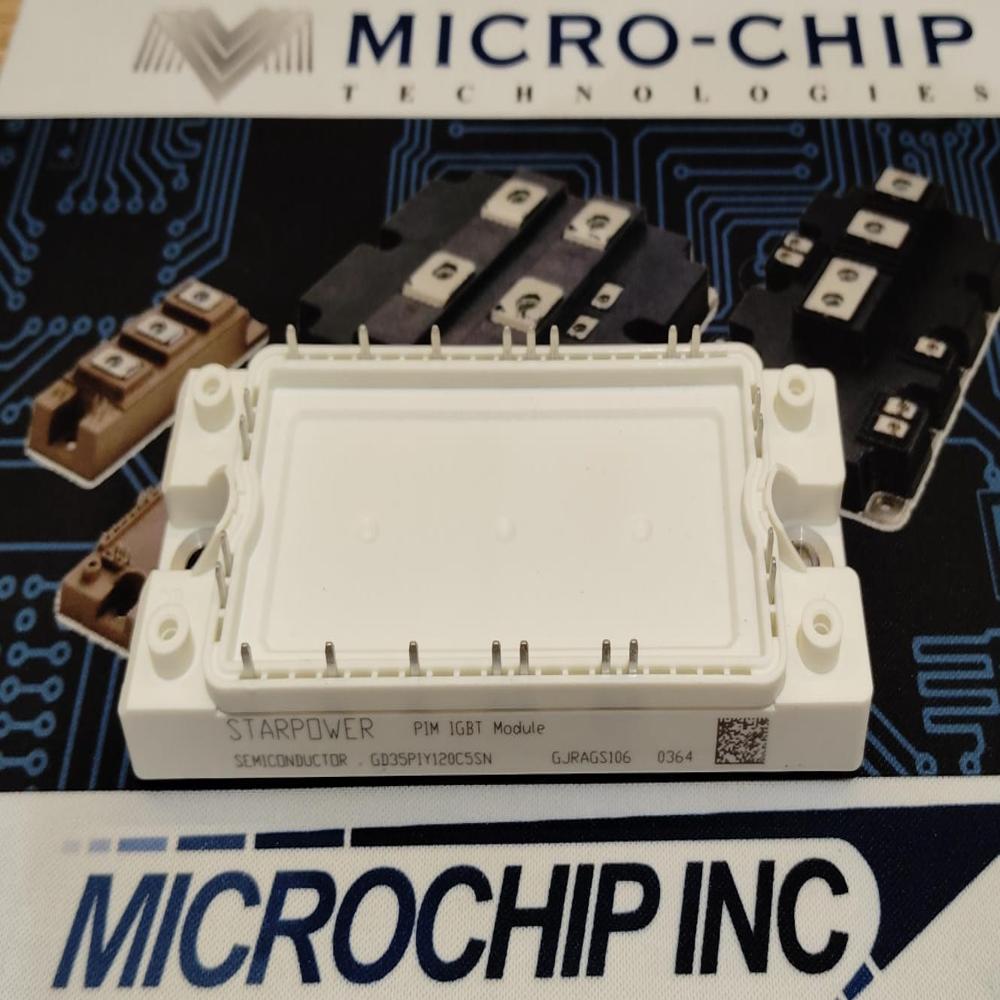

GD25PIY120C5SN STARPOWER IGBT Module

Name: GD25PIY120C5SN STARPOWER IGBT Module
Brand: MICROCHIP TECHNOLOGIES
Price: 2400.0 INR
Availability: InStock

Price 2400.0 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

GD25PIY120C5SN STARPOWER IGBT Module Specification

Product Type
IGBT Module

Supply Voltage
Up to 1200V

Dissipation Power
284W (max)

Operating Temperature
-40C to +150C

Power Consumption
Dependent on operating conditions, typically up to rated dissipation power

Temperature Range
-40C to +150C

Input Voltage
Control side: 15V (typical gate drive)

Voltage Regulator Type
Not applicable (External Gate Drive Required)

Size
106mm x 62mm x 30mm (approximate outline)

Weight
Approx. 0.5kg

Switching Frequency
Up to 20kHz (dependent on application)

Package Type
Industrial power module

Part Number
GD25PIY120C5SN

Collector-Emitter Voltage (VCES)
1200V

Collector Current (IC)
25A (nominal)

Insulation Voltage
2500V AC (1 min between terminals and base plate)

Protection Features
Overcurrent and short circuit (application dependent)

Isolation
Isolated base

Gate Emitter Voltage
20V (max)

Module Configuration
3-phase bridge

RoHS Status
Compliant

Mounting Style
Screw Mount

GD25PIY120C5SN STARPOWER IGBT Module Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About GD25PIY120C5SN STARPOWER IGBT Module

Experience an enviable advantage with the GD25PIY120C5SN STARPOWER IGBT Module, featuring a robust 3-phase bridge configuration. With a notable collector-emitter voltage of 1200V and 25A current capacity, this industrial power module meets optimum standards for inverter, motor drive, and renewable energy applications. Now available with a prime Price Cut, making it a smart buy for budget-conscious professionals. Enjoy favorable reviews for its RoHS compliance, reliable protection features, and screw mount installation. Secure this high-performing, reliable choice from trusted distributors, importers, and suppliers across India today.

Versatile Applications and Cutting-Edge Features

The GD25PIY120C5SN STARPOWER IGBT Module excels across diverse industrial settings. It's designed for use in industrial inverters, motor drives, power supplies, and renewable energy systems, making it suitable for demanding power management applications. It operates reliably within a wide temperature range, offers a durable, isolated base for protection, and supports up to 20kHz switching frequency-delivering enviable performance and usage flexibility.

Export Markets, Samples & Delivery Excellence

This module serves major export markets with streamlined transport services and dependable handover processes. Samples are available for initial testing, ensuring buyer confidence before full-scale order placement. Prompt delivery times are assured as units are speedily shipped to meet project timelines, supported by efficient logistics partners for consistent handover and shipment experiences to clients worldwide.

FAQ's of GD25PIY120C5SN STARPOWER IGBT Module:

Q: How can the GD25PIY120C5SN STARPOWER IGBT Module benefit industrial applications?

A: The module enhances efficiency in motor drives, inverters, and renewable energy systems with superior voltage and current handling, overcurrent protection, and optimized power dissipation.

Q: What is the process for ordering and sample availability?

A: Contact your regional distributor, importer, or supplier in India to request product samples and place orders. Sample modules are available for evaluation before committing to bulk purchases.

Q: Where is the GD25PIY120C5SN STARPOWER IGBT Module primarily used?

A: This module is widely utilized in industrial inverters, motor drives, renewable energy setups, and power supply units-sites demanding robust and reliable power control.

Q: When can the module be shipped after ordering?

A: After order confirmation, the GD25PIY120C5SN modules are typically shipped promptly, benefiting from efficient logistics and transport services for swift handover.

Q: What are the main features that distinguish this IGBT module?

A: Key features include a 3-phase bridge configuration, high voltage and current ratings, isolated base, RoHS compliance, screw mounting, short circuit protection, and operation from -40C to +150C.
