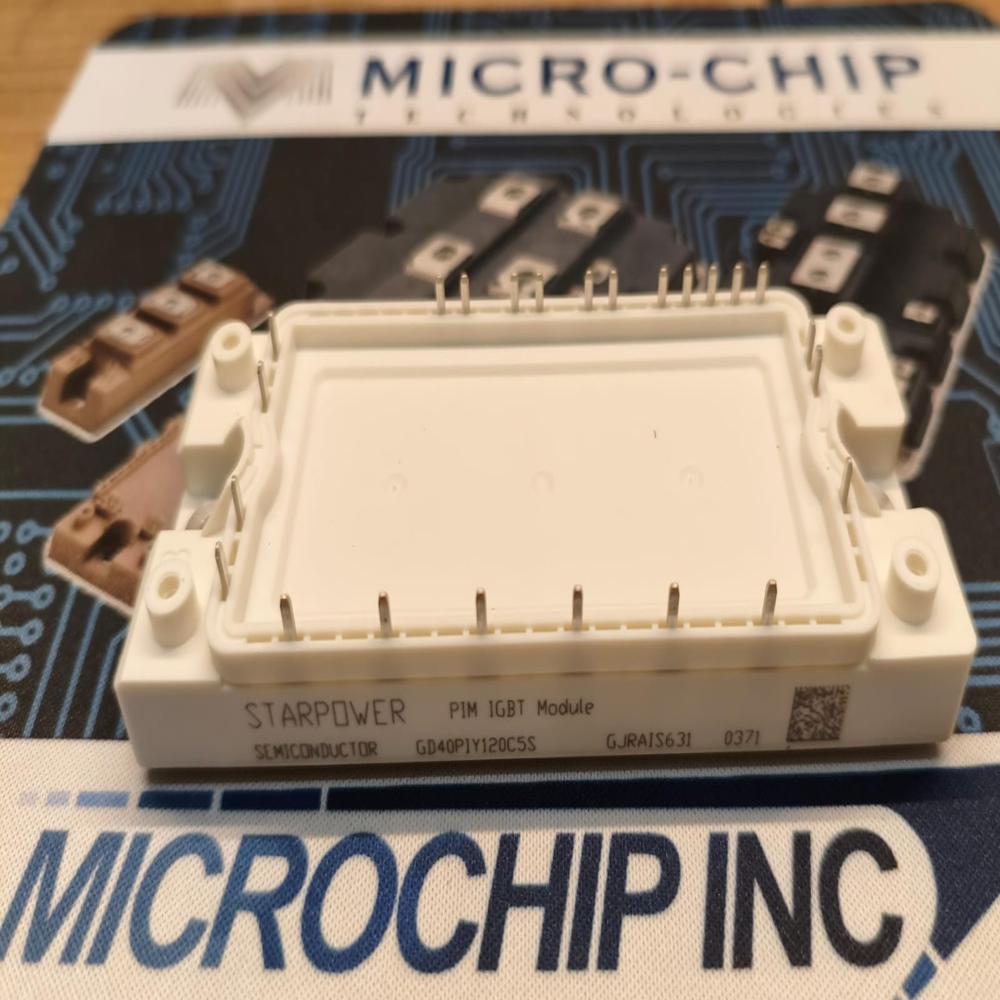

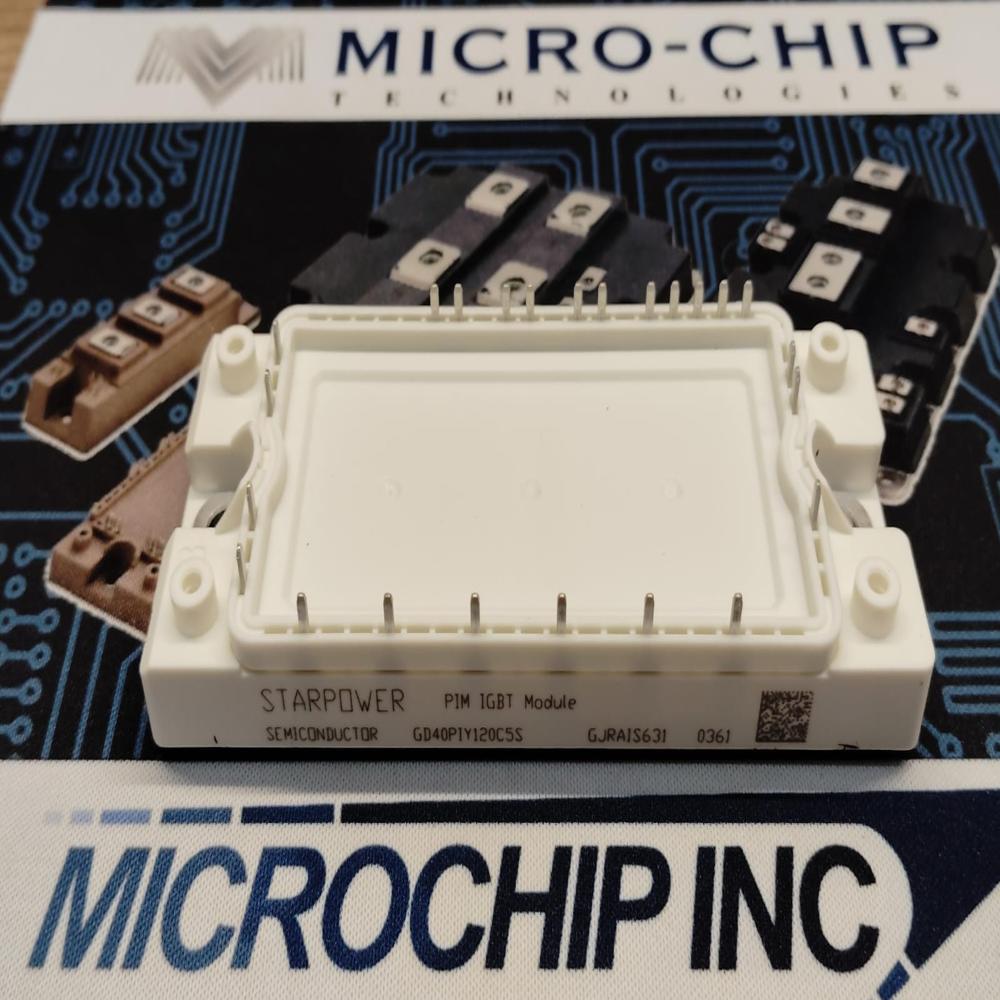

GD40PIY120C5S STARPOWER IGBT Module

Name: GD40PIY120C5S STARPOWER IGBT Module
Brand: MICROCHIP TECHNOLOGIES
Price: 2400.0 INR
Availability: InStock

Price 2400.0 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

GD40PIY120C5S STARPOWER IGBT Module Specification

Operating Temperature
-40C to +150C

Sensors Specification
No internal sensors

Features
Low saturation voltage, High reliability, Easy mounting

Interface
Module terminals

Components
IGBT Module, Diodes

Input
IGBT control signals

Output
High voltage, high current switching

Thermal Conductivity
Optimized baseplate for efficient heat dissipation

Usage
Industrial motor drives, power conversion, inverters

Response Time
Fast switching, typically <1s

Power Source
External Electric supply

Power Supply
Electric

Product Type
IGBT Power Module

Application
Industrial automation, power electronics

Rated Voltage
1200V

Supply Voltage
1200V

Size
Standard module size

Dimension (L*W*H)
126mm x 55mm x 30mm (approximate)

Function
Switching and inverter applications

Color
Black and White

Weight
Approx. 300g

Capacity
40A

Current Rating
40A

Thickness
Standard module thickness

Frequency
DC to 20kHz

Mounting
Screw mounting tabs

Insulation Voltage
2500V AC/min

Leakage Current (Ice)
Typical <1mA

Isolation
Electrically isolated base

Typical Collector-Emitter Saturation Voltage (Vce(sat))
<2.0V

Module Structure
Half-Bridge

Case Material
Molded plastic with metal baseplate

Gate Trigger Voltage (Vge)
20V max

GD40PIY120C5S STARPOWER IGBT Module Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About GD40PIY120C5S STARPOWER IGBT Module

Pick Yours today - the GD40PIY120C5S STARPOWER IGBT Module stands out with its unparalleled performance and invincible engineering. Featuring an inestimable insulation voltage of 2500V AC/min, this popular half-bridge module delivers a robust 40A current rating and a rated voltage of 1200V. Designed with a durable black and white molded plastic case and a metal baseplate for optimal thermal conductivity, it ensures high reliability and fast switching. Purchase the module for industrial automation, power conversion, and inverter applications for superior efficiency and trusted results in every use.

Advantages and Commercial Features of the GD40PIY120C5S STARPOWER IGBT Module

Engineered for excellence, the GD40PIY120C5S offers high reliability with its electrically isolated base and optimized metal baseplate for efficient heat dissipation. Its invincible switching capabilities and low saturation voltage make it a commercial favorite for industrial motor drives and power electronics. Additional features include fast response times, ease of mounting via screw tabs, and a robust structure, making it ideal for dynamic applications in demanding environments across automation and inverter systems.

Main Domestic and Export Markets for STARPOWER GD40PIY120C5S IGBT Module

Shipped goods are dispatched nationwide, covering India's main domestic market with certified reliability and quality standards. The proposal amount is tailored for large-scale industrial requirements, making it an excellent fit for distributors and suppliers. The STARPOWER GD40PIY120C5S is securely packed for export to major markets, with particular focus on fast-growing regions in Asia and Europe, ensuring efficient delivery timelines and comprehensive after-sales support for bulk orders.

FAQ's of GD40PIY120C5S STARPOWER IGBT Module:

Q: How do I install the GD40PIY120C5S STARPOWER IGBT Module?

A: The GD40PIY120C5S can be easily installed with its screw mounting tabs and clearly labeled module terminals. Ensure proper electrical isolation and follow recommended safety procedures for mounting and wiring.

Q: What are the typical commercial uses of this IGBT module?

A: This module is popularly used in industrial automation, power conversion systems, motor drives, and inverter applications that demand high voltage and current switching capabilities.

Q: When should I consider using this IGBT module for my application?

A: Choose the GD40PIY120C5S when your application requires reliable high-voltage switching, fast response times, and robust operation in environments such as industrial drives or large-scale power inverters.

Q: Where is the GD40PIY120C5S STARPOWER IGBT Module commonly shipped?

A: The module is commonly dispatched to industries across India's domestic market as well as exported to international destinations in Asia and Europe, ensuring wide-area availability.

Q: What are the benefits of the GD40PIY120C5S over other IGBT modules?

A: Benefits include unparalleled insulation voltage, low collector-emitter saturation voltage, optimized thermal conductivity, reliable design, and easy mounting, making it suitable for complex and high-demand industrial tasks.
