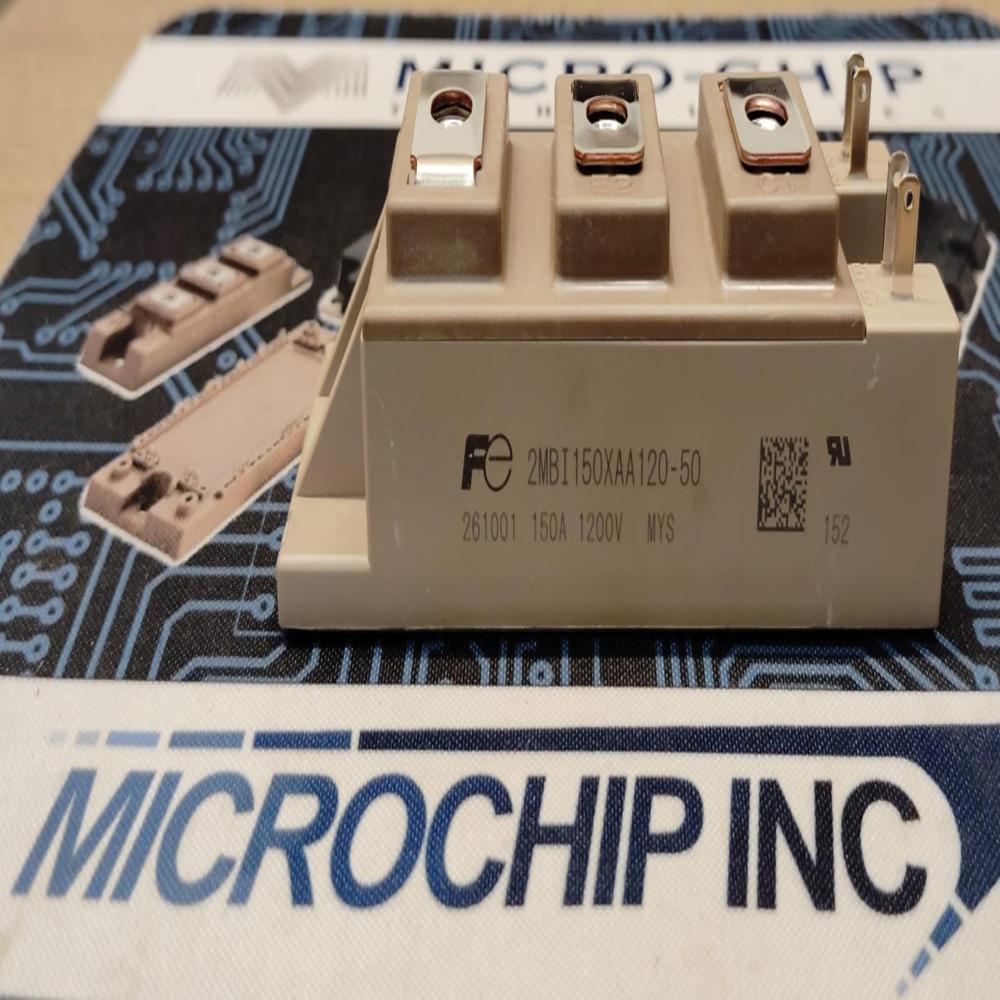

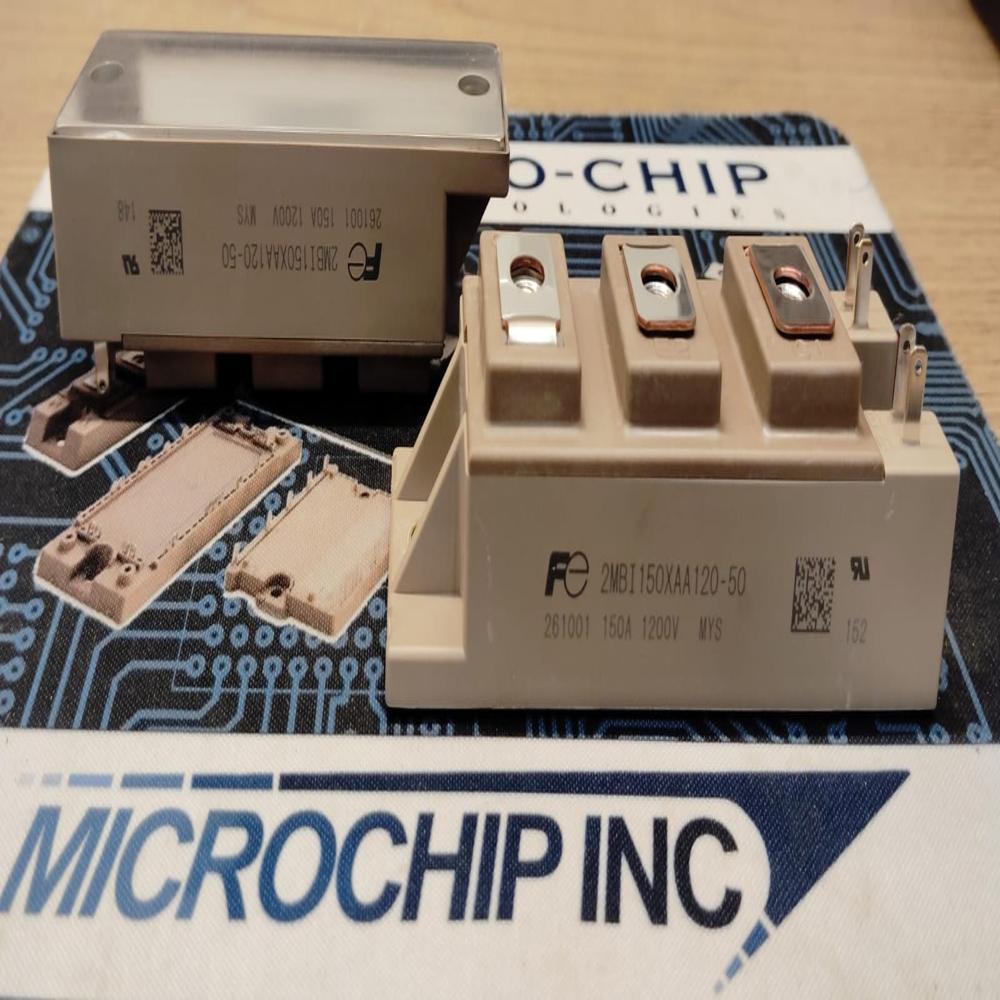

2MBI150XAA120 -50 FUJI ELECTRIC IGBT POWER MODULE

Name: 2MBI150XAA120 -50 FUJI ELECTRIC IGBT POWER MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 2500.0 INR
Availability: InStock

Price 2500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

2MBI150XAA120 -50 FUJI ELECTRIC IGBT POWER MODULE Specification

Operating Temperature
-40C to +150C (Junction Temperature)

Power Supply
Industrial Power Supply

Power Source
External Power Supply

Input
Control Signal Input

Response Time
Fast Switching

Output
Switched Power Output

Interface
Module Terminal Connection

Features
High Reliability, Low Saturation Voltage, Fast Switching, Compact Design

Components
2 IGBT Transistors + 1 Free Wheeling Diode

Thermal Conductivity
High (Baseplate designed for heat dissipation)

Usage
Inverter, UPS, Motor Drives, Power Control Units

Product Type
IGBT Power Module

Application
Industrial Automation, Motor Control, Renewable Energy, Power Inverters

Rated Voltage
1200V

Supply Voltage
1200V Max

Size
Standard module size

Dimension (L*W*H)
Approx. 118 mm 60 mm 30 mm

Function
IGBT Power Module for high-speed switching and high efficiency power control

Color
Beige / Metallic

Weight
Approx. 350 g

Thickness
Standard Module Thickness

Capacity
150A Continuous Collector Current

Current Rating
150A

Frequency
High Speed Switching (up to 20kHz)

Gate Emitter Voltage
20V (Maximum)

Collector Current (Ic)
150A (Continuous)

Baseplate Material
Copper

Mounting Style
Screw Mount

Model Number
2MBI150XAA120-50

Protection Features
Built-in Diode

Short Circuit Withstand Time
10s

Package Type
Industrial Rectangular Module

Collector-Emitter Voltage (Vces)
1200V

Isolation Voltage
2500V AC (1 min)

About 2MBI150XAA120 -50 FUJI ELECTRIC IGBT POWER MODULE

Experience the elite performance of the 2MBI150XAA120-50 FUJI ELECTRIC IGBT Power Module-a top-rated, redoubtable masterpiece designed for demanding industrial applications. With its fresh, compact design and robust 1200V/150A continuous collector current, this module ensures exceptional efficiency and high-speed switching up to 20kHz. The built-in diode, copper baseplate, and high isolation voltage (2500V AC) guarantee both reliability and thermal excellence. Pick yours for optimal control in inverters, UPS, power modules, and renewable energy systems-delivering superior value and reliability for professional users.

Preferred Uses & Application Spots

The 2MBI150XAA120-50 FUJI ELECTRIC IGBT Power Module stands out in a range of industrial settings, from general power control to highly specialized inverter systems. Widely used by automation professionals, electrical engineers, and renewable energy technicians, it's the preferred choice for motor drives, industrial automation, UPS systems, and advanced power inverters. Its robust construction and reliable performance make it indispensable in any sector demanding efficient, high-speed energy switching and precise power regulation.

Delivery, Packaging & Certification Details

Expect prompt quotation responses and transparent delivery times, placing the 2MBI150XAA120-50 at the forefront of market value in both domestic and international markets. Each module is securely packaged in industry-standard containers to prevent any damage during transit. Certifications assure compliance and quality, adding further reliability and market trust. As a distributor, importer, or supplier, you can count on impeccable logistics and documentation for seamless integration into your project workflow.

FAQ's of 2MBI150XAA120 -50 FUJI ELECTRIC IGBT POWER MODULE:

Q: How does the 2MBI150XAA120-50 IGBT Power Module enhance industrial automation systems?

A: This module offers high-speed switching, high reliability, and efficient power control, making it ideal for precise regulation and automation in critical industrial environments.

Q: What key protection features are integrated into the 2MBI150XAA120-50 module?

A: It includes a built-in free-wheeling diode for added safety, robust copper baseplate for thermal management, and high isolation voltage for superior operational security.

Q: Where is the 2MBI150XAA120-50 module commonly installed?

A: It's typically installed in power inverters, UPS systems, motor drives, and power control units found in renewable energy and industrial automation settings.

Q: When should this IGBT power module be considered for use?

A: Select this IGBT module when you require reliable, fast-switching, and high-capacity power control for demanding applications, particularly in industry or renewable energy.

Q: What is the standard process for ordering and receiving this module?

A: Request a quotation based on your market requirements; once confirmed, expect reliable packaging and a timely delivery schedule, with all relevant certifications provided.
