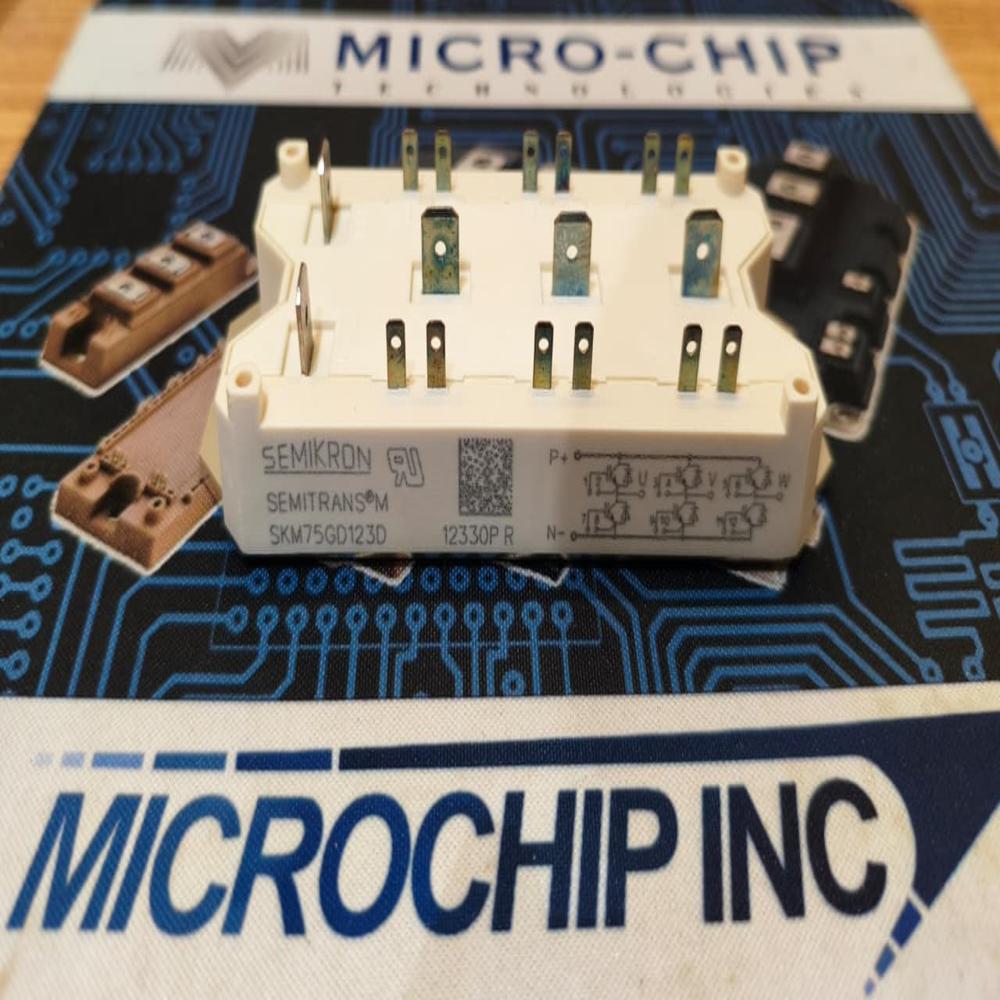

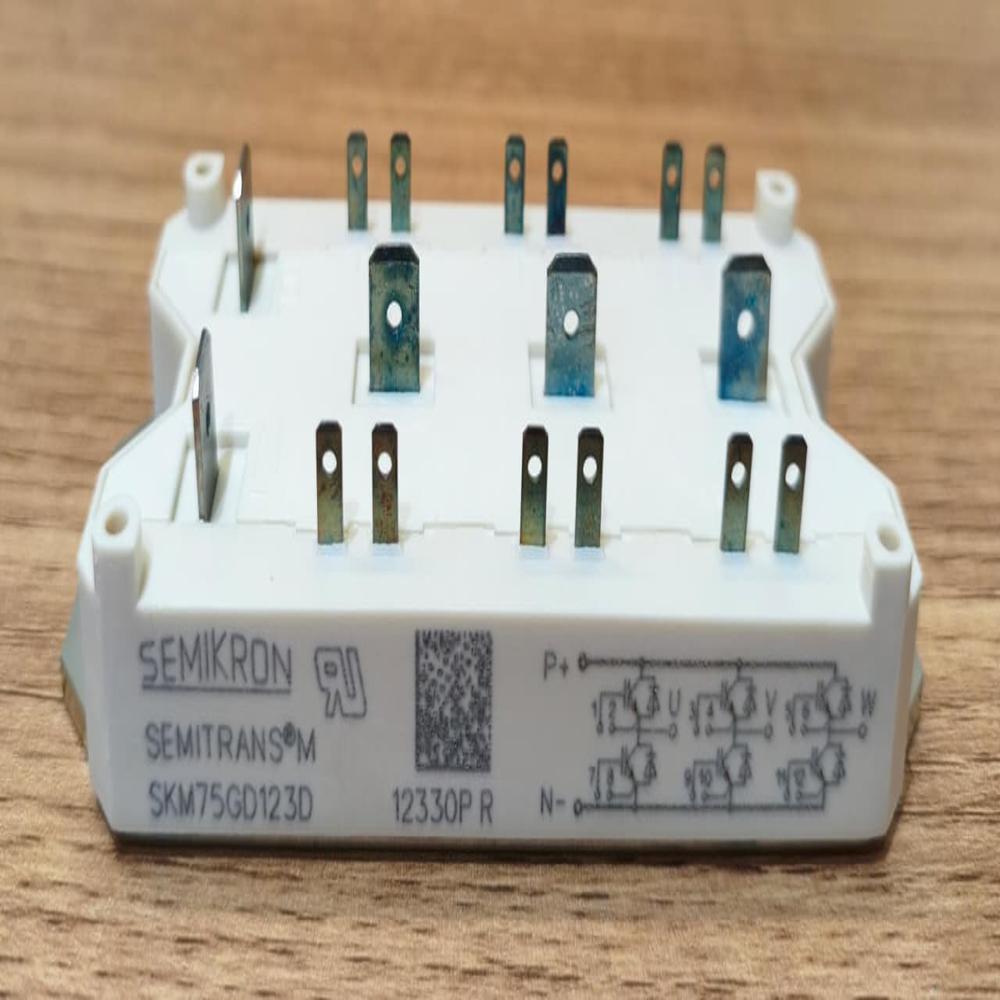

SKM75GD123D SEMIKRON

Name: SKM75GD123D SEMIKRON
Brand: MICROCHIP TECHNOLOGIES
Price: 8000.0 INR
Availability: InStock

Price 8000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

SKM75GD123D SEMIKRON Specification

Product Type
IGBT Module

Application
Inverters, Motor Drives, Power Supplies, Industrial Control, Renewable Energy Systems

Input Voltage
Up to 1200V

Output Frequency
DC to 20 kHz (typical for IGBT modules)

Output Current
75A

Output Voltage
Up to 1200V

Modular
Yes

Interface Type
Screw and Solder Terminals

Operation Type
Three-phase Bridge

Size
Standard SEMIKRON Module Size

Color
White

Weight
Approx. 150g

Dimension (L*W*H)
106 mm x 62 mm x 30 mm (approx)

Package Type
SEMITRANS M

Compliance
UL Recognized

Pins
17 terminals (various output/game/control contacts)

Gate Emitter Voltage (Vge)
20V (max)

Storage Temperature Range
-40C to +125C

Internal Circuit
6 IGBTs and 6 anti-parallel free-wheeling diodes (see schematic on housing)

Model Number
SKM75GD123D

Collector Current (Ic)
75A

Isolation Voltage
2500V AC (1 min)

Mounting Style
Chassis Mount

Switching Frequency
Up to 20 kHz (typical)

Configuration
Three-phase full bridge

Operating Temperature
-40C to +150C

Collector-Emitter Voltage (Vces)
1200V

About SKM75GD123D SEMIKRON

Experience the elite performance of the SKM75GD123D SEMIKRON-a gorgeous IGBT module designed for laureate-level engineering applications. Equipped with three-phase full-bridge configuration, 1200V Vces, and 75A collector current, this splendid module delivers high isolation voltage and robust operation from -40C to +150C. Its modular SEMITRANS M package features 6 IGBTs and 6 free-wheeling diodes for superior efficiency. Shop now to get unrivaled reliability in industrial controls, renewable energy systems, and power supplies. Take your power solutions to the next tier with SEMIKRON!

Versatile Industrial Applications for SKM75GD123D SEMIKRON

The SKM75GD123D SEMIKRON module stands out in application media such as high-performance inverters, dynamic motor drives, and next-generation renewable energy systems. Its laureate design ensures adaptability across a wide area of application, including power supplies, factory automation, and industrial control units. Application places span from solar farms and wind turbines to manufacturing plants, where splendid reliability and efficiency are essential. Trust this module to empower your advanced electrical engineering projects.

Sample Policy and Valuation Details for SKM75GD123D SEMIKRON

Elevate your market value with our transparent sample policy for the SKM75GD123D SEMIKRON. Samples are available upon request; please inquire for specific terms. Our standard FOB port is set at major international shipping locations, optimizing your expenditure during import. Packaging details ensure modules are protected in anti-static and cushioned boxes, maintaining high market valuation during transit. Procure with confidence-each shipment reflects our commitment to superior distribution and laureate-level customer service.

FAQ's of SKM75GD123D SEMIKRON:

Q: How does the SKM75GD123D SEMIKRON benefit industrial control applications?

A: The SKM75GD123D SEMIKRON delivers exceptional efficiency and reliability, making it ideal for industrial control systems requiring robust performance, superior voltage isolation, and stable operation at a wide temperature range.

Q: What is the typical usage process for installing this IGBT module?

A: The module is chassis-mounted using screw and solder terminals. It can be integrated into three-phase inverter circuits, motor drives, or power supply units following the schematic provided on its housing.

Q: When should you consider using the SKM75GD123D SEMIKRON in power supply designs?

A: Choose this module when high output current (up to 75A) and voltage (up to 1200V), rapid switching frequencies up to 20 kHz, and superior isolation are needed for your power supply or inverter projects.

Q: Where can the SKM75GD123D SEMIKRON be applied to maximize its market value?

A: It finds splendid application in renewable energy installations, industrial motor drives, and automated factory setups, enhancing the market value and efficiency of your high-demand electrical systems.

Q: What makes the SKM75GD123D SEMIKRON a laureate choice among power modules?

A: Its compliance with UL standards, robust configuration, modular design, and high operational reliability make it a laureate selection for engineers seeking elite power solutions.
