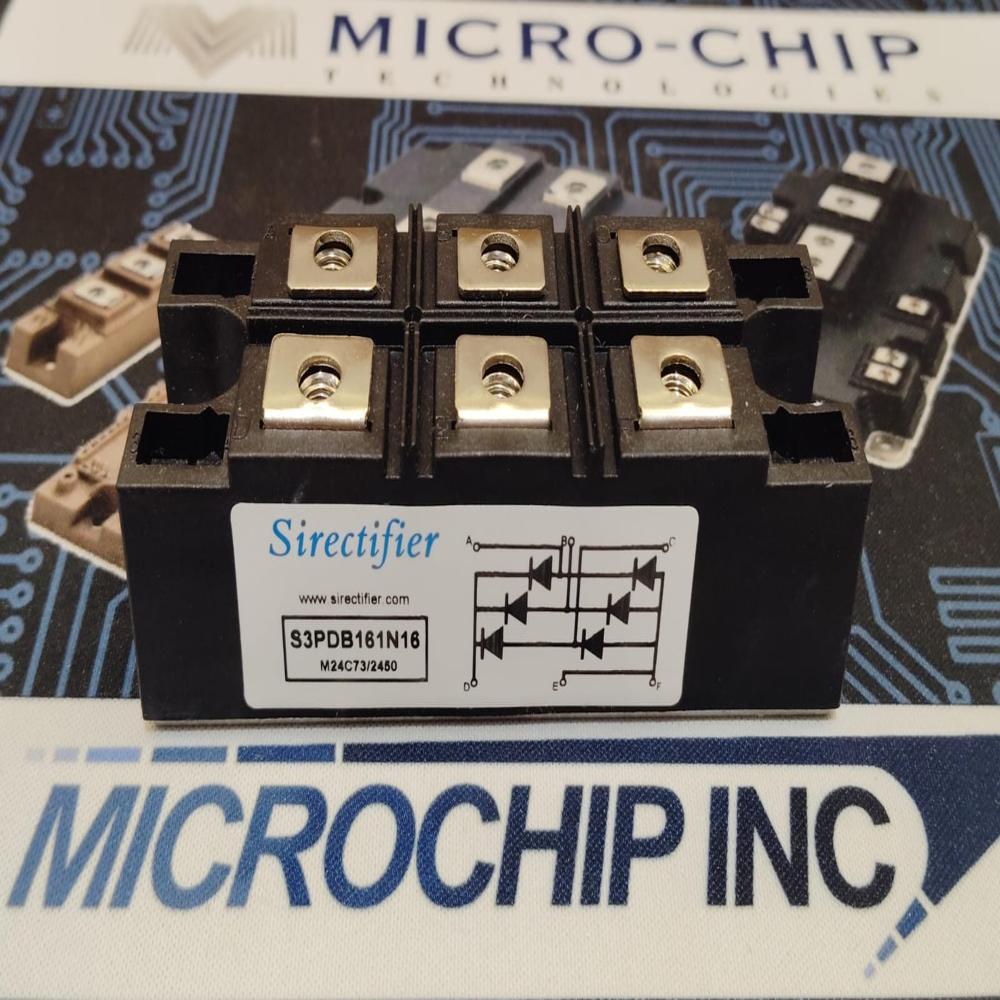

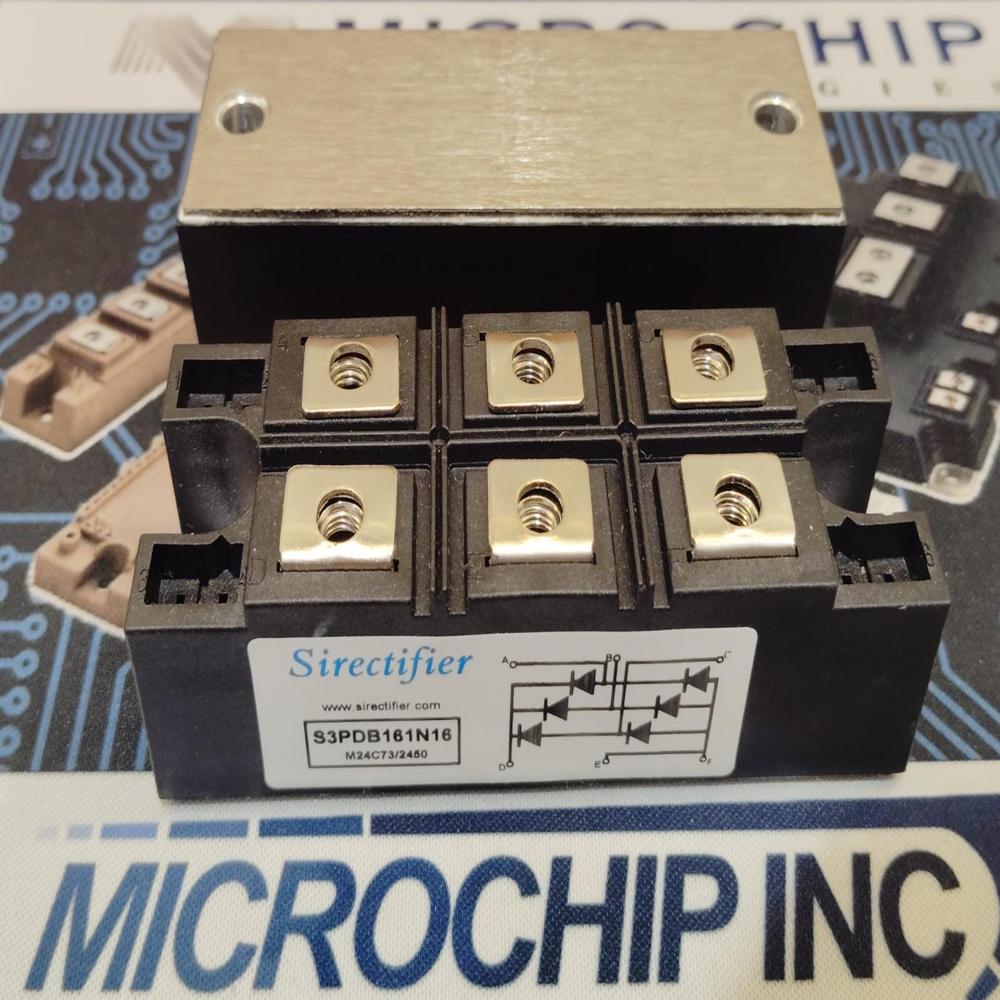

S3PDB161N16 SIRECTIFIER rectifier module

Name: S3PDB161N16 SIRECTIFIER rectifier module
Brand: MICROCHIP TECHNOLOGIES
Price: 2500.0 INR
Availability: InStock

Price 2500.0 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

S3PDB161N16 SIRECTIFIER rectifier module Specification

Product Type
Rectifier Module

Application
Industrial Power Supplies, Motor Drives, Battery Chargers

Input Voltage
1600V (Repetitive Peak Reverse Voltage)

Output Frequency
50-60 Hz

Output Current
160A

Output Voltage
As per circuit design (determined by application and load)

Modular
Yes

Interface Type
Screw Terminal

Operation Type
Three-Phase, Bridge Rectifier

Size
Standard Industrial Module

Color
Black / Silver

Weight
Approx. 400g

Dimension (L*W*H)
106mm x 80mm x 30mm

Reverse Current (IR)
<100A at VRRM

Package Type
Encapsulated Module

Case Style
Industrial Molded Case

Mounting Type
Panel Mount

Maximum Surge Current (IFSM)
1700A

Isolation Voltage
2500V RMS

Operating Temperature Range
-40C to +125C

Storage Temperature Range
-40C to +125C

Diode Technology
Silicon Rectifier

Model Number
S3PDB161N16

Phase
Three Phase

S3PDB161N16 SIRECTIFIER rectifier module Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About S3PDB161N16 SIRECTIFIER rectifier module

The S3PDB161N16 SIRECTIFIER rectifier module is an elite, top-rated solution designed for sensational performance in demanding industrial environments. Featuring three-phase silicon rectifier diode technology, this top-notch module boasts a high isolation voltage of 2500V RMS and a spectacular surge current capacity of 1700A. Its robust industrial molded case ensures durability, while the encapsulated design offers superior reliability. Suitable for panel mounting, it operates effortlessly between -40C and +125C. Perfect for industrial power supplies, motor drives, and battery chargers, the S3PDB161N16 delivers transient performance with a modular interface and screw terminals for easy installation. Available across India through leading distributors.

Versatile Application & Superior Features

The S3PDB161N16 SIRECTIFIER rectifier module is superbly engineered for a spectrum of industrial applications, including motor drives, industrial power supplies, and battery chargers. Its exceptional silicon diode technology provides high efficiency and reliability. With encapsulated modular design, broad operating temperature range, and robust surge protection, this module stands out in performance. Screw terminal interface and panel mount option ensure convenient installation, making it ideal for both new systems and upgrades in demanding power environments.

Certifications, Payment, and Quick Delivery

The S3PDB161N16 SIRECTIFIER comes fully certified for industrial use, meeting stringent quality standards. Stock is consistently ready for prompt dispatch with seamless delivery options from our FOB India port. Flexible payment terms are available to suit various buyers, easing the financial outlay. Distributors and importers benefit from our reliable stock management, ensuring you receive your modules quickly and efficiently, minimizing downtime for your business and supporting projects of any size with top-notch service.

FAQ's of S3PDB161N16 SIRECTIFIER rectifier module:

Q: How is the S3PDB161N16 SIRECTIFIER module installed in industrial systems?

A: The S3PDB161N16 is designed for easy panel mount installation using screw terminals, making it straightforward to integrate into existing or new industrial systems with minimal effort.

Q: What are the standout benefits of using this rectifier module?

A: This module offers high surge current capacity, robust isolation voltage, wide temperature tolerance, and a durable molded case, providing reliability and safety in power-demanding applications.

Q: Where can I use the S3PDB161N16 in my setup?

A: It is ideal for industrial power supplies, three-phase motor drives, and battery charger circuits where stable and efficient rectification is needed.

Q: When is stock available and how is delivery managed?

A: Stock is generally ready for immediate delivery, managed from our main distribution port in India, allowing fast turnaround for urgent requirements.

Q: What certifications does this rectifier module hold?

A: The module complies with relevant industry certifications for quality and electrical safety, making it suitable for professional applications.

Q: How does the modular design benefit usage?

A: The modular and encapsulated design ensures ease of installation, better thermal management, and improved protection for the internal components, extending module lifespan.
