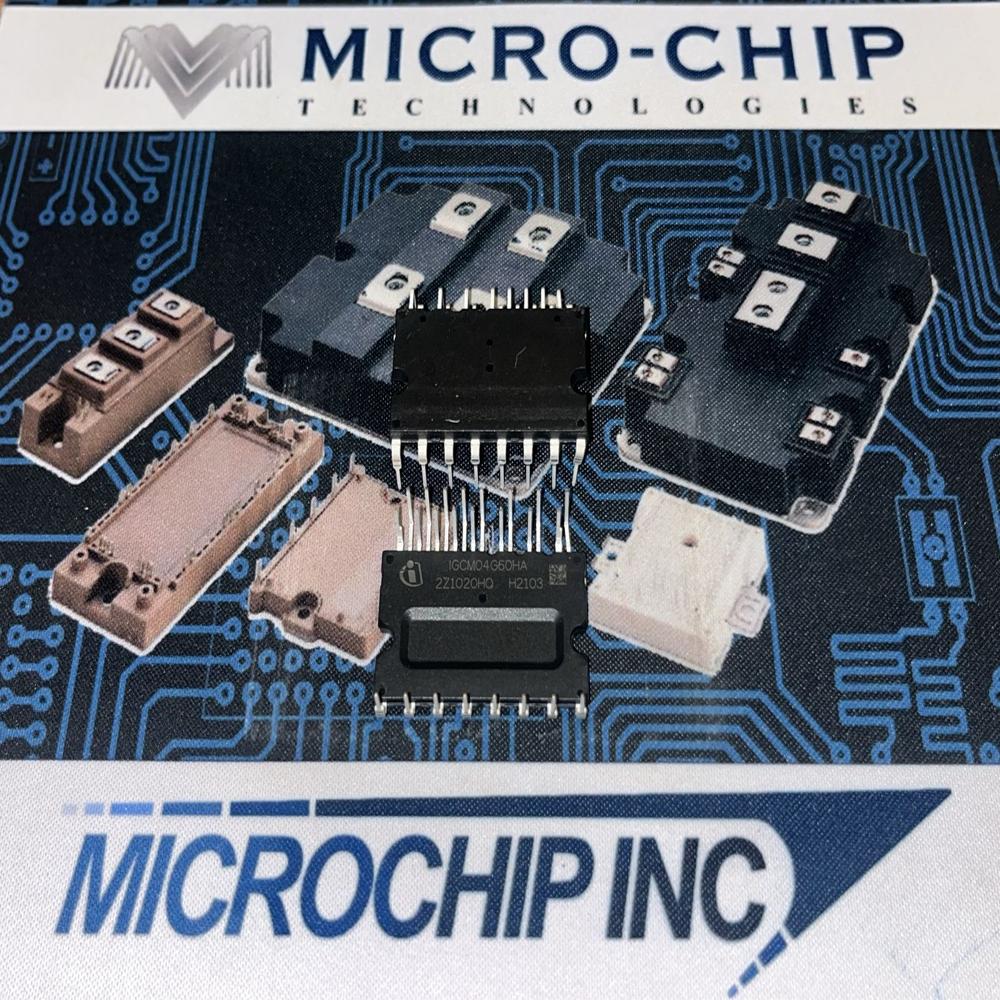

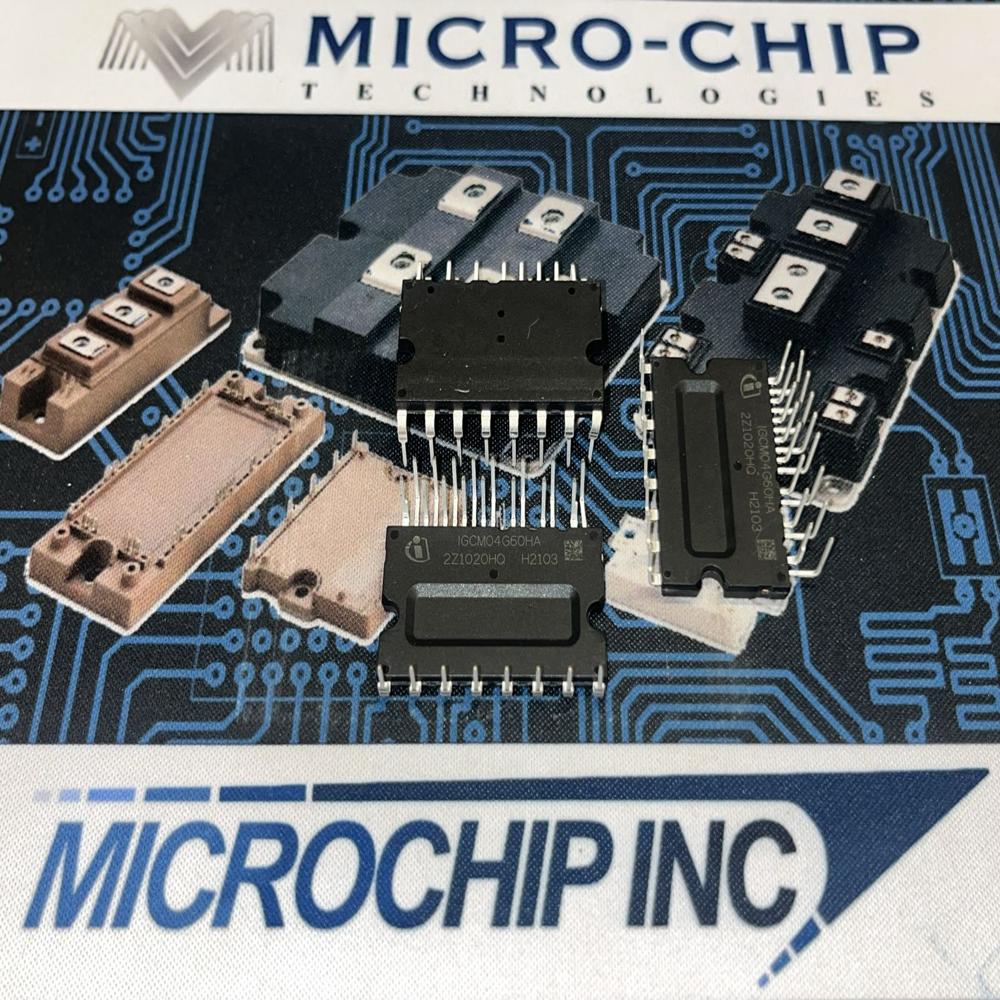

IGCM04G60HA Infineon IPM MODULE

Name: IGCM04G60HA Infineon IPM MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 1000.0 INR
Availability: InStock

Price 1000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

IGCM04G60HA Infineon IPM MODULE Specification

Output
600V, 4A (typical for 3-phase motor drive)

Type
Intelligent Power Module (IPM)

Operating Voltage
15V (typical Vcc)

Output Voltage
600V (maximum blocking voltage)

Storage Temperature
-40C to +125C

Operating Temperature
-40C to +125C (Tj)

Package Type
Hybrid, Screw Mount

Control Supply Voltage
15V (typical)

Topology
3-phase inverter

Voltage Rating
600V

Application
AC motor drives, Industrial inverters, Home appliance inverters

Fault Signal Output
Yes

Switch Technology
IGBT

Short Circuit Protection
Yes (integrated)

Isolation Voltage
2500Vrms

Collector-Emitter Saturation Voltage
2.1V (typical)

Current Rating
4A

Part Number
IGCM04G60HA

IGCM04G60HA Infineon IPM MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About IGCM04G60HA Infineon IPM MODULE

Jump on the unparalleled performance of the IGCM04G60HA Infineon IPM MODULE-engineered with peerless IGBT-based technology and designed for prime applications like AC motor drives, industrial, and home appliance inverters. This 3-phase inverter module boasts an unbeatable combination of a 600V voltage rating, 4A current output, integrated short circuit protection, and robust fault signal output. With its hybrid package and screw mount for easy installation, it's the unrivaled choice among distributors, importers, or suppliers in India. Try Now for premium reliability and efficiency, and Purchase to experience class-leading innovation first-hand!

Applications, Features, and Directions for Use

The IGCM04G60HA Infineon IPM MODULE excels in powering AC motor drives, industrial inverters, and home appliance inverters. Its specialized features include integrated short-circuit protection and fault signal output, ensuring operational safety and reliability. Application media cover both residential and industrial sectors. For optimal use, mount the module using its hybrid screw configuration, connect the control supply voltage (15V typical), and integrate into 3-phase systems for steady, efficient power delivery.

Packaging, Export Markets, and Payment Terms

Each IGCM04G60HA module is delivered in secure packaging to maintain prime condition during transit. The product holds significant market value, catering to export markets across India and globally. Typically, charges are based on order size and destination. Payment terms are flexible, providing options for advance payment or trusted transaction methods, ensuring a hassle-free buying experience for distributors and importers alike. Experience certainty in delivery, service, and support with every order placed.

FAQ's of IGCM04G60HA Infineon IPM MODULE:

Q: How does the IGCM04G60HA improve industrial inverter performance?

A: The IGCM04G60HA ensures efficient energy conversion and reliable operation in industrial inverters due to its integrated short-circuit protection, low collector-emitter saturation voltage, and advanced IGBT technology-delivering stable power to high-demand equipment.

Q: What is the recommended process for installing the IGCM04G60HA module?

A: To install the IGCM04G60HA, secure it using the provided screw mounts onto a suitable heatsink, connect the control supply voltage (15V typical), and ensure correct phase wiring in line with your 3-phase inverter design for optimal performance.

Q: Where can distributors or importers purchase the IGCM04G60HA in India?

A: Distributors and importers in India can purchase the IGCM04G60HA module through authorized Infineon suppliers, electronics component distributors, or dedicated IPM module importers offering nationwide delivery and after-sales support.

Q: What special features differentiate the IGCM04G60HA from similar IPM modules?

A: Distinctive features include an integrated fault signal output, 2500Vrms isolation voltage, and built-in short-circuit protection, delivering peerless operational safety and reliability for demanding inverter applications.

Q: When should I consider using the IGCM04G60HA for my application?

A: Use the IGCM04G60HA whenever your project demands a robust 3-phase inverter solution capable of handling 600V, 4A outputs with superior safety, particularly in AC motor drives or home appliance inverters.
