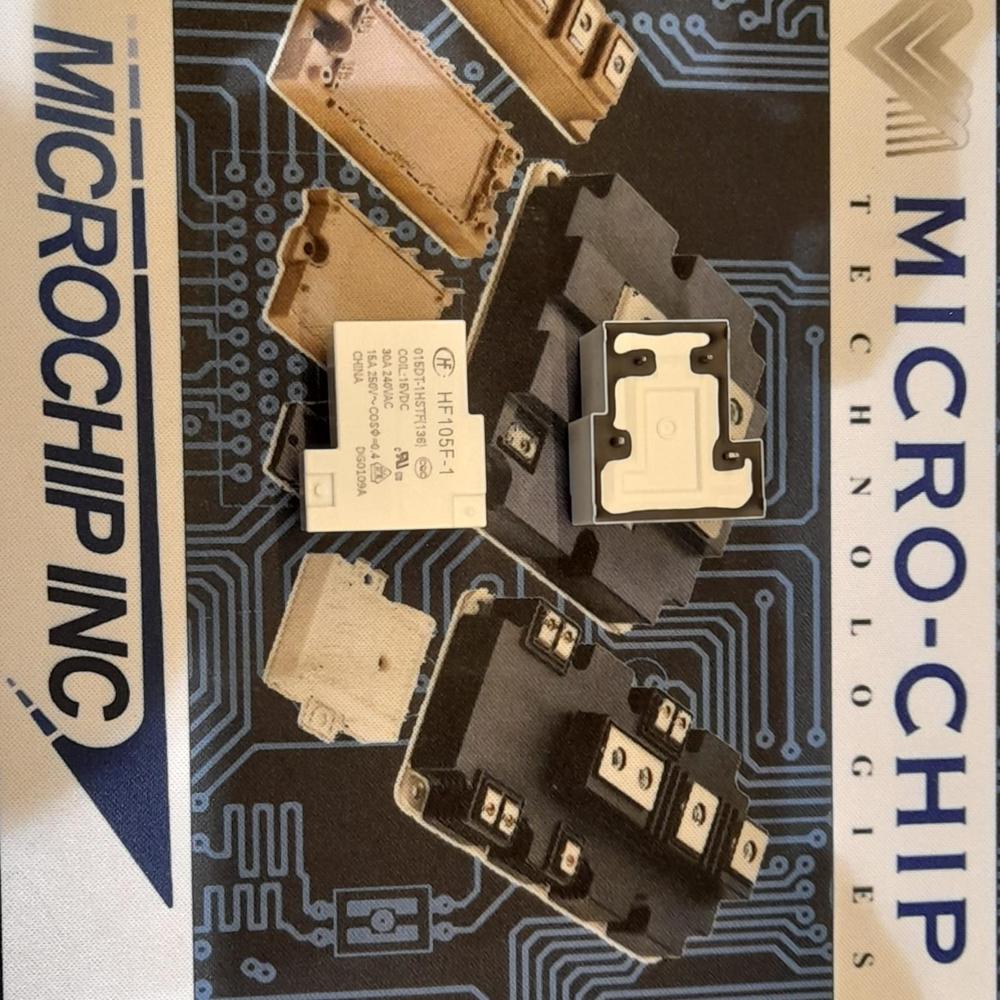

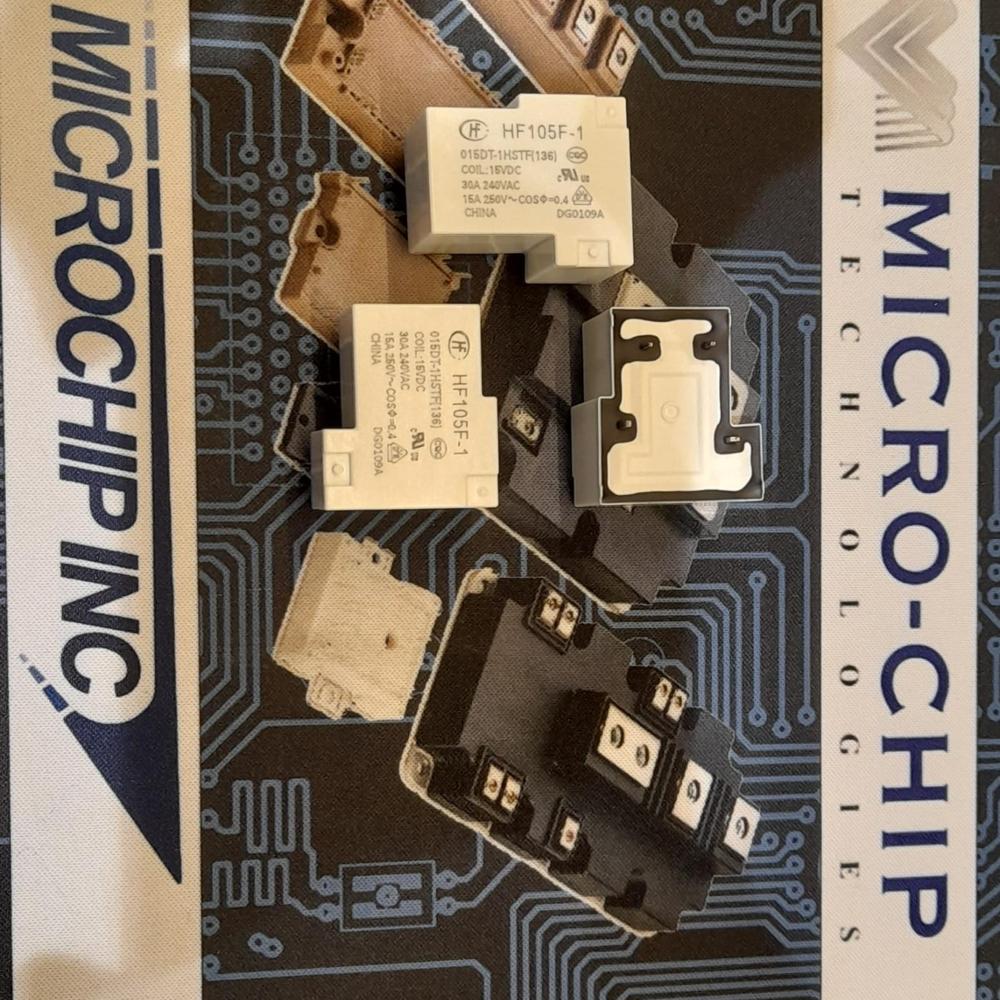

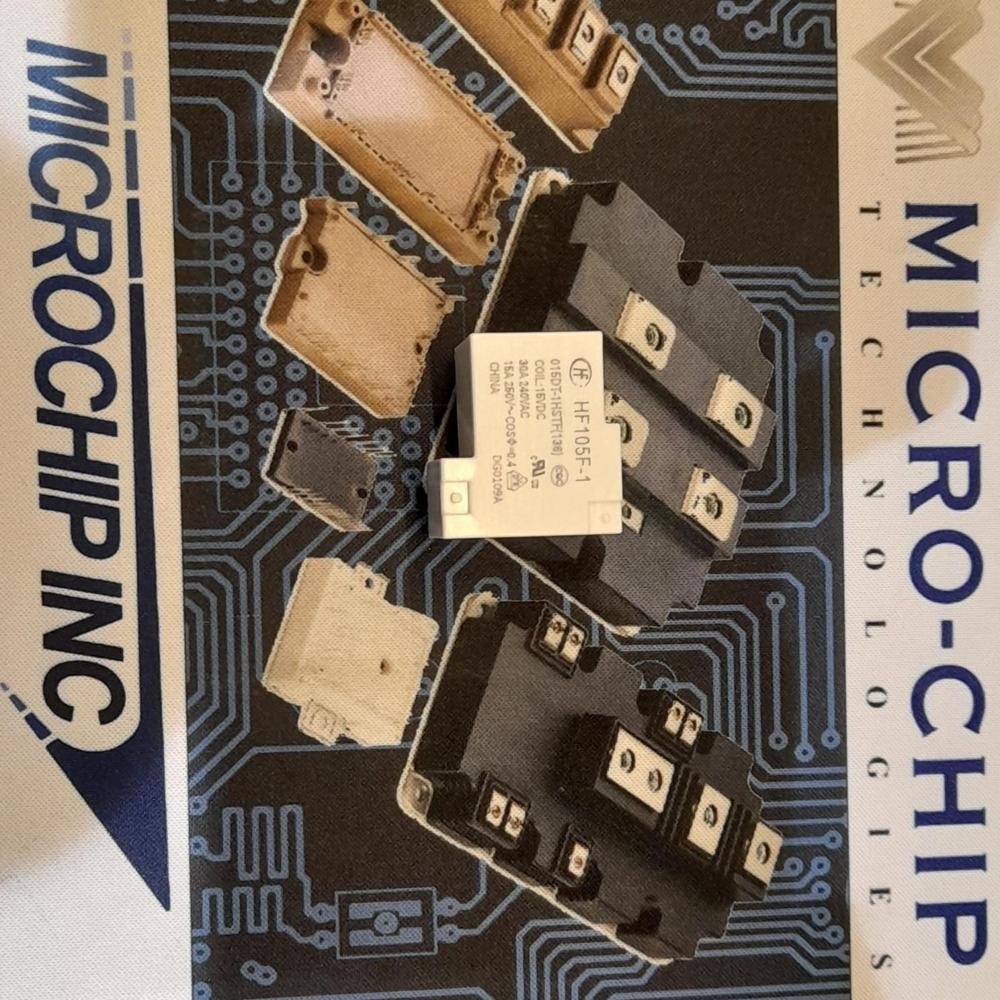

HF105F-1 high-power electromagnetic relay

Send Inquiry

Request To Call Back

HF105F-1 high-power electromagnetic relay

Name: HF105F-1 high-power electromagnetic relay
Brand: MICROCHIP TECHNOLOGIES
Price: 200.0 INR
Availability: InStock

Price 200.0 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

HF105F-1 high-power electromagnetic relay Specification

Power Source
External power supply as per coil voltage

Features
High switching capacity, compact size, reliable isolation, transparent case for visual inspection

Usage
Electrical control systems, automation equipment, power distribution

Output
Normally open or normally closed contacts

Input
Coil voltage as per rated (e.g. 12V DC/24V DC/220V AC)

Interface
PCB or Faston terminal

Operating Temperature
-40C to +85C

Power Supply
DC or AC (as per rated voltage variant)

Components
Electromagnetic coil, movable armature, contacts, frame

Response Time
Contact release and operate time approx. 15ms

IP Rating
IP20 (basic enclosure)

Product Type
High-power electromagnetic relay

Application
Industrial automation, HVAC control, motor control, lighting systems

Rated Voltage
12V DC, 24V DC, 110V AC, 220V AC

Supply Voltage
12V DC, 24V DC, 110V AC, 220V AC

Size
Standard block type, approximately 29mm x 12.6mm x 20.4mm

Dimension (L*W*H)
29mm 12.6mm 20.4mm

Function
High-power electromagnetic relay for circuit control and switching

Color
Black body with transparent cover

Weight
Approx. 75g

Capacity
Up to 30A 250V AC or 30V DC (contact rating)

Current Rating
30A (maximum contact rating)

Frequency
50/60 Hz for AC coil model

Electrical Life
100,000 operations (min. at rated load)

Contact Form
1 Form A (SPST-NO), 1 Form C (SPDT available on request)

Mounting Type
PCB or plug-in type

Dielectric Strength
1500V AC (coil to contacts), 750V AC (between open contacts)

Compliant Standards
CE, RoHS (on selected models)

Insulation Resistance
1000 M at 500V DC

Contact Material
Silver alloy

Coil Power Consumption
Approx. 0.9W (DC type)

Mechanical Life
10 million operations (min.)

Ambient Humidity
5% to 85% RH (non-condensing)

HF105F-1 high-power electromagnetic relay Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About HF105F-1 high-power electromagnetic relay

Unlock heroic performance with the HF105F-1 high-power electromagnetic relay-ideal for opulent automation solutions and wondrous control tasks. This robust relay, available at the lowest price, features a silver alloy contact, handles up to 30A at 250V AC or 30V DC, and offers your pick of contact form (SPST-NO/available SPDT) and coil voltage (12V DC, 24V DC, 110V AC, 220V AC). Boasting mechanical life up to 10 million operations and CE/RoHS compliance, it's the deal you can't miss. Pick yours now from India's trusted distributor, importer, and supplier!

HF105F-1 Electromagnetic Relay: Applications and Features

The HF105F-1 relay is widely used in industrial control, automation equipment, power distribution, motor and lighting systems. Its compact yet wondrous design supports high-current switching while ensuring reliable isolation and visual inspection with its transparent case. Key features include a heroic mechanical life, fast response time, silver alloy contacts, and a choice of PCB or plug-in mounting-making it a trusted pick for plant applications demanding high durability and versatile connectivity.

Supply, Samples, and Packaging for HF105F-1 Relay

Our proposal amount for the HF105F-1 relay ensures exceptional valuation, matching your quality expectations and budget. Fast sample availability enables prompt delivered evaluations before final orders. Each relay is professionally packaged for secure transit and safe handling. Reliable supply ability guarantees consistent, on-time deliveries. Choose a deal that assures not only the lowest price but also peace of mind-partner with India's top supplier for seamless procurement.

FAQ's of HF105F-1 high-power electromagnetic relay:

Q: How is the HF105F-1 relay used in industrial automation systems?

A: The HF105F-1 relay is used for circuit control and switching in industrial automation systems, allowing remote or automatic control of high-current loads such as motors, lights, and other equipment.

Q: What are the key advantages of choosing this relay for power distribution?

A: Key benefits include a high switching capacity up to 30A, compact design for space savings, reliable isolation, long mechanical and electrical life, and a transparent cover for easy inspection.

Q: When should I select the SPST-NO or SPDT contact form?

A: Select the SPST-NO (1 Form A) for standard applications needing normally open contacts, or request the SPDT (1 Form C) for more complex switching requirements including both normally open and normally closed contacts.

Q: Where can I install the HF105F-1 relay?

A: The relay can be installed in electrical control panels via PCB mounting or plug-in connection, making it suitable for automation equipment, HVAC systems, motor controls, and lighting circuits.

Q: What is the process for requesting samples or placing an order?

A: Contact the official distributor or supplier to request a sample for evaluation. After your assessment and proposal acceptance, the products will be delivered as per the agreed terms.
