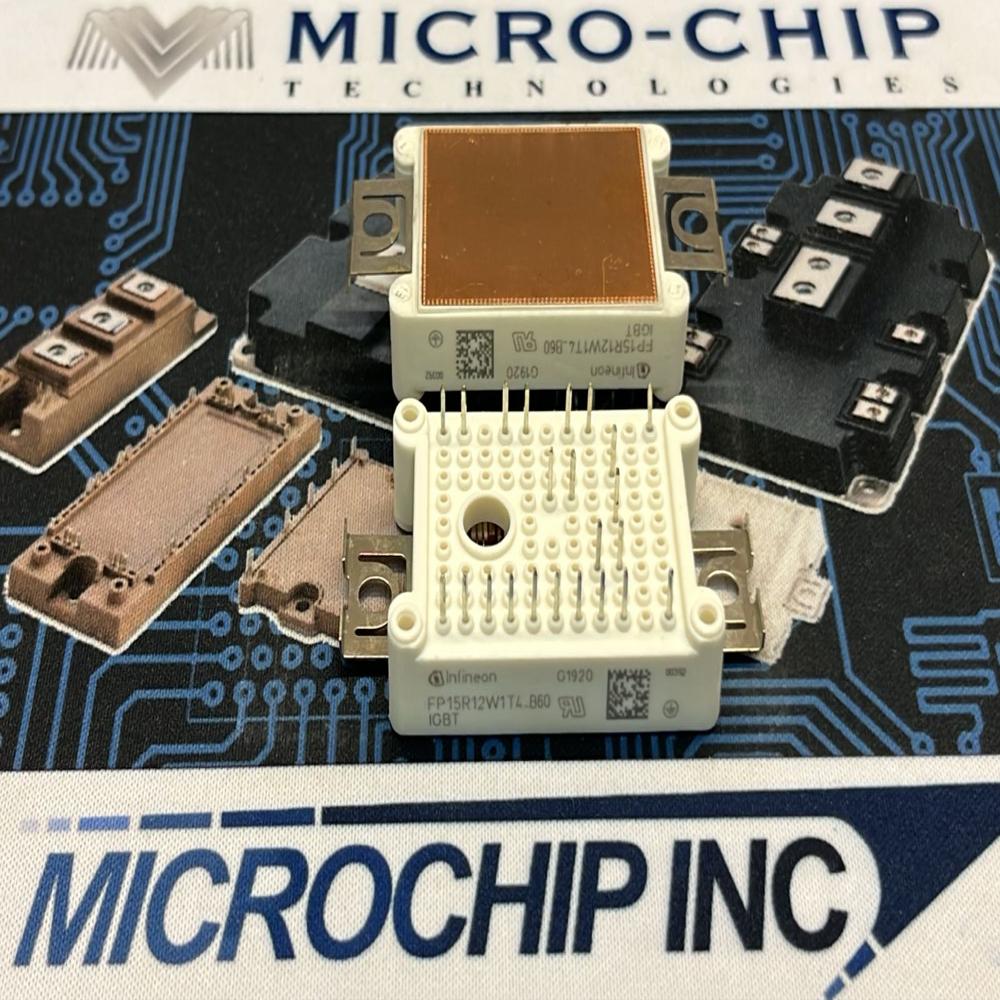

FP15R12W1T4 B60

Name: FP15R12W1T4 B60
Brand: MICROCHIP TECHNOLOGIES
Price: 2500.0 INR
Availability: InStock

Price 2500.0 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

FP15R12W1T4 B60 Specification

Response Time
Typical IGBT Switching Response, <1 s

Components
IGBT Chips, Diode

Output
Power Output Phase

Input
Control Logic/Signal

Operating Temperature
-40C to +150C (Junction)

Thermal Conductivity
Optimized for Heat Dissipation via Module Baseplate

Features
Compact Design, High Efficiency, Fast Switching, Integrated Protection Functions

Power Supply
Electric

Interface
Screw Terminal, Module Pins

IP Rating
IP20 Approx. (Module Enclosure)

Usage
Industrial Automation, Motor Control, Inverter Applications

Power Source
External Power Supply

Product Type
IGBT Power Module

Application
Industrial Motor Drives, Power Inverters

Rated Voltage
1200V

Supply Voltage
1200V

Size
Standard IGBT Module Form Factor

Dimension (L*W*H)
94.5mm 34mm 22mm

Function
IGBT Power Module for Motor Drives and Inverters

Color
Grey / Black

Weight
~120g (Typical)

Capacity
15A Current

Current Rating
15A

Thickness
22 mm (approximate)

Frequency
DC/AC, up to 20 kHz Switch Frequency

Minimum Gate Trigger Voltage
15V

Isolation Resistance
>=1000 MOhm

Commutation Diode
Included

Model
FP15R12W1T4 B60

Lead Time
Standard lead time 6-8 weeks

Gate Emitter Voltage (Vge)
+/-20V

Collector Current (Ic)
15A

Insulation Voltage
2500V AC (1 min)

RoHS Compliant
Yes

Mounting Type
Screw Mount

Brand / Manufacturer
Infineon Technologies

Housing Material
High Quality Plastic Mold

Collector Emitter Voltage (Vces)
1200V

FP15R12W1T4 B60 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About FP15R12W1T4 B60

Jump on the trending FP15R12W1T4 B60 from Infineon Technologies-a virtuoso in IGBT power module technology designed for triumphant performance. This compact, impeccably engineered module boasts a 1200V collector-emitter voltage, 15A current capacity, and top-tier insulation (2500V AC, 1 min). Integrated commutation diode, fast switching (<1s), and optimized heat dissipation ensure efficiency. With robust safety, RoHS compliance, and screw mount reliability, it's the go-to for industrial automation, motor drives, and inverters. Elevate your projects-buy the FP15R12W1T4 B60 and experience technical mastery.

Dominating Industrial Power Control

The FP15R12W1T4 B60 is crafted for industrial usage, especially in motor control and inverter applications. Its impeccable commutation reliability, robust insulation, and high-frequency capabilities render it indispensable for applications demanding efficient power switching. With a standard IGBT module form factor and screw mounting, it seamlessly integrates into leading-edge automation and motor drive systems. Designed for surface installations, it reduces installation time while ensuring a stable, high-performance footprint in demanding environments.

Evaluating Market, Certification, and Logistics

Within India's triumphant domestic market, this module delivers exceptional valuation-blending competitive outlay and reliability. Certified to meet RoHS standards, you can trust its environmental stewardship and high quality. The FOB port facility supports efficient product drop-off and distribution, ensuring seamless logistics and prompt delivery for importers and suppliers. Clients benefit from streamlined transactions and reliable access to a world-class industrial solution.

FAQ's of FP15R12W1T4 B60:

Q: How does the FP15R12W1T4 B60 enhance industrial motor drive efficiency?

A: The FP15R12W1T4 B60 features fast switching speeds, high current capacity, and integrated protection functions, resulting in reduced energy loss and optimized performance in industrial motor drive applications.

Q: What surface types are suitable for mounting this IGBT module?

A: This module is designed for secure installation on flat, metallic surfaces using screw mounts, making it well-suited for panels and heat sinks in industrial environments.

Q: When is the ideal time to use the FP15R12W1T4 B60 for automation projects?

A: Deploy the FP15R12W1T4 B60 when your project demands high voltage, efficient motor control, and reliable inverter operations, especially under demanding conditions or heavy-duty industrial settings.

Q: Where is the main domestic market and how can I access it?

A: The main domestic market for this module is India, supported by various distributors, importers, and suppliers, ensuring accessible supply and support across the region.

Q: What are the key benefits of integrating this module into existing systems?

A: Key benefits include its compact form factor, high-efficiency switching, RoHS compliance, dependable insulation, and seamless integration into standard control environments.

Q: How can I initiate the purchase and delivery process for the FP15R12W1T4 B60?

A: To buy the module, contact authorized distributors or suppliers in India. Orders are dispatched via FOB ports, with standard lead times of 6-8 weeks for delivery.
