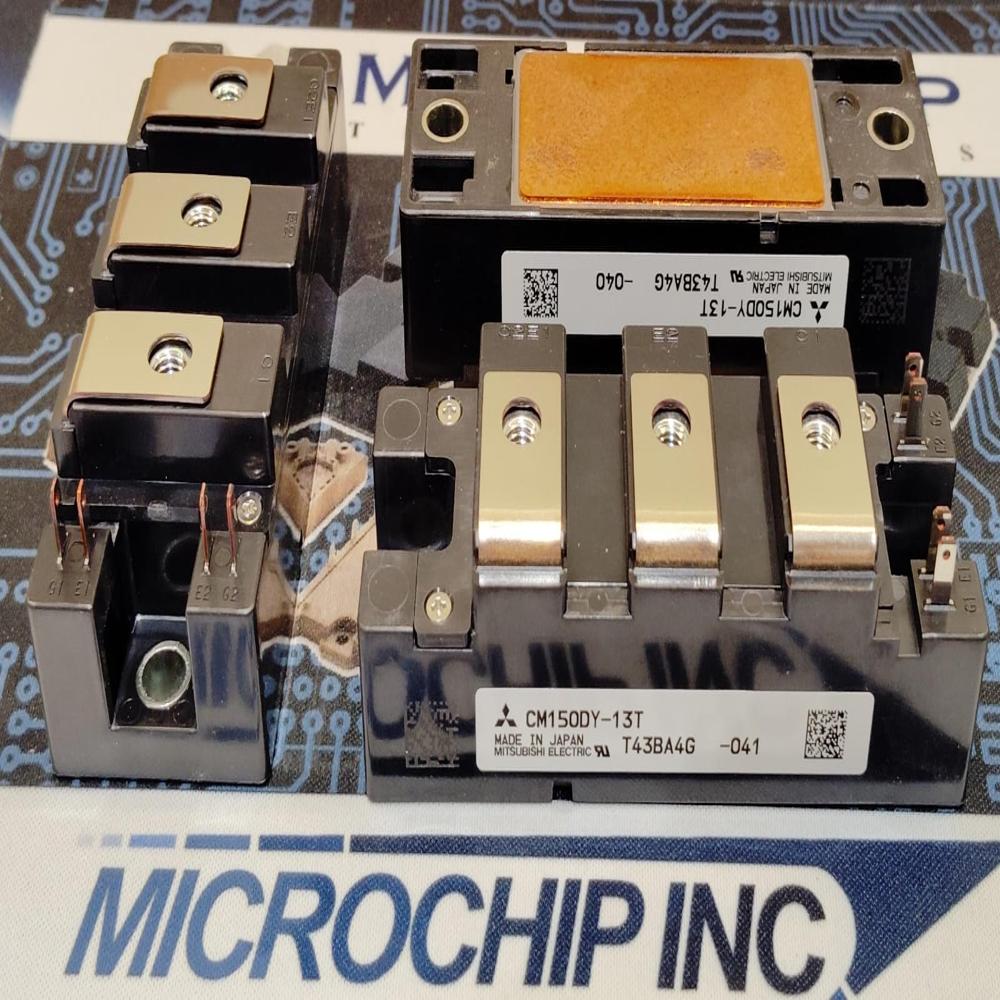

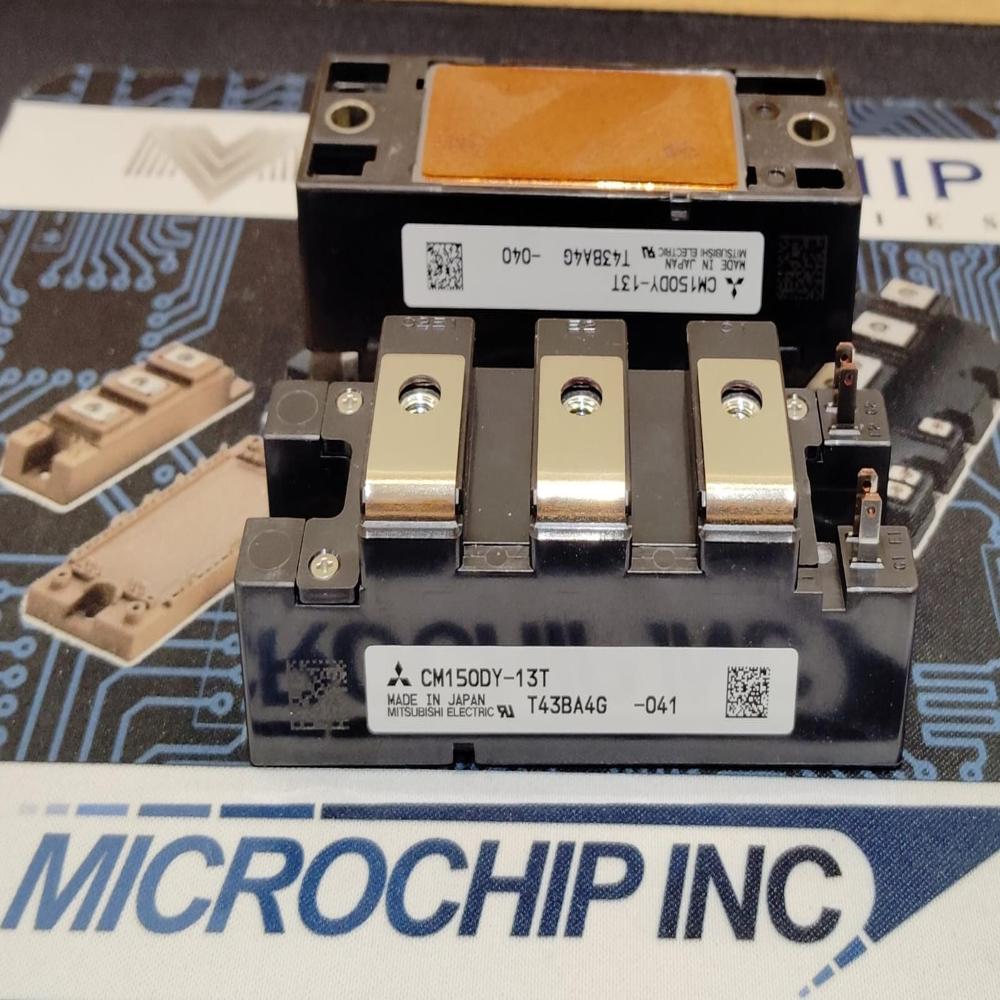

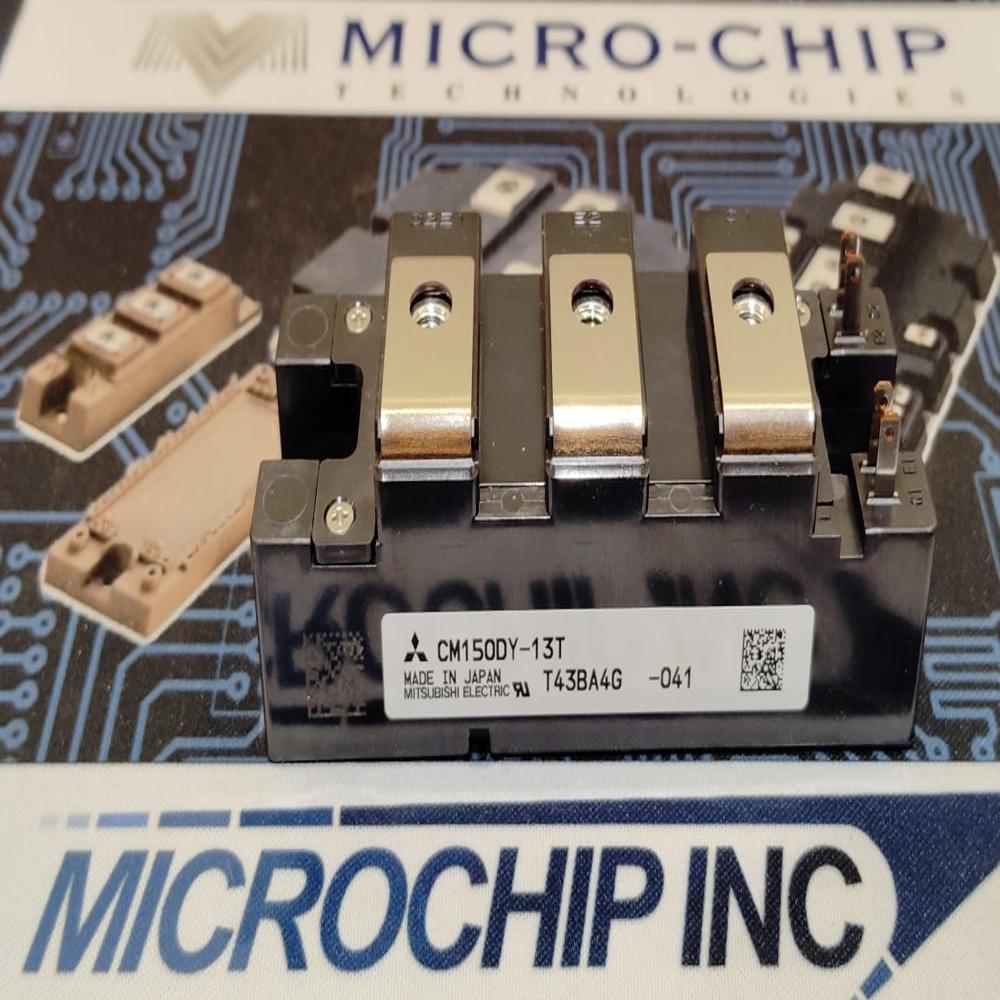

CM150DY-13T Mitsubishi IGBT Module

Name: CM150DY-13T Mitsubishi IGBT Module
Brand: MICROCHIP TECHNOLOGIES
Price: 2500.0 INR
Availability: InStock

Price 2500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

CM150DY-13T Mitsubishi IGBT Module Specification

Product Type
IGBT Module

Supply Voltage
600V

Dissipation Power
900 W

Operating Temperature
-40C to +150C

Power Consumption
Depends on load and application

Temperature Range
-40C to +150C

Input Voltage
600V (Collector-Emitter Voltage) typical

Voltage Regulator Type
Not applicable (Power Module)

Size
118mm x 34mm x 47mm (approximate)

Weight
350g (approximate)

Gate-Emitter Voltage (Vge)
20V (max)

Mounting Type
Through Hole

Package/Case
Module

Isolation Voltage
2500V AC (1 min)

Switching Frequency
Up to 20 kHz

Model Number
CM150DY-13T

Collector Current (Ic)
150A

Configuration
Dual IGBT (2-Pack)

Collector-Emitter Saturation Voltage (Vce(sat))
2.2V (typical) at Ic=150A

CM150DY-13T Mitsubishi IGBT Module Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About CM150DY-13T Mitsubishi IGBT Module

Introducing the new release CM150DY-13T Mitsubishi IGBT Module-your pivotal component for industrial motor drives, UPS, and power inverters. Jump on this exquisite dual IGBT (2-pack) solution, boasting an impressive 150A collector current, superior isolation voltage of 2500V AC, and switching frequencies up to 20kHz. Its valorous through-hole design ensures robust performance and efficient heat dissipation across a wide -40C to +150C temperature range. Try now for unmatched reliability and efficiency; distributed in India by leading importers and suppliers!

Competitive Edge: Advanced Performance & Specialized Use

The CM150DY-13T Mitsubishi IGBT Module rises above the competition with its dual IGBT configuration, high collector current of 150A, and isolation voltage rated at 2500V AC. Its robust construction and versatile switching frequency-up to 20 kHz-make it ideal for industrial motor drives, inverters, and power supplies. Additional features, including thermal endurance and compact size, ensure optimal adaptability and durability, making the module a valorous choice for demanding industrial environments.

Payment, Export Markets & Timely Delivery

We offer the CM150DY-13T Mitsubishi IGBT Module at a competitive asking price, with flexible supply arrangements to suit bulk orders. Designed for export to key markets across Asia, Europe, and North America, our trusted distribution channels ensure timely delivery. Typical delivery time varies by location and order quantity, but swift dispatch guarantees your production stays uninterrupted. Secure your modules today and experience trustworthy supply to fuel your industrial innovation.

FAQ's of CM150DY-13T Mitsubishi IGBT Module:

Q: How is the CM150DY-13T IGBT module typically used in industrial applications?

A: The CM150DY-13T is primarily utilized in industrial motor drives, UPS systems, inverters, and power supplies, where high current handling and efficient switching are critical.

Q: What are the main benefits of using a dual IGBT configuration in this module?

A: Dual IGBT configuration enhances power handling, offers redundancy, and improves overall efficiency and reliability, making it suitable for heavy-duty industrial tasks.

Q: What is the process for ordering and supplying the CM150DY-13T in India?

A: You can order the module through authorized distributors and importers in India, who offer professional guidance, competitive pricing, and reliable supply chains to ensure smooth procurement.

Q: When can I expect the delivery of the CM150DY-13T after placing an order?

A: Delivery times depend on order quantity and destination but are generally prompt, with most shipments dispatched within a few working days of order confirmation.

Q: Where can I source technical support or further documentation for the CM150DY-13T module?

A: Technical support and detailed documentation are available through Mitsubishi's official channels or from authorized Indian distributors and suppliers.
