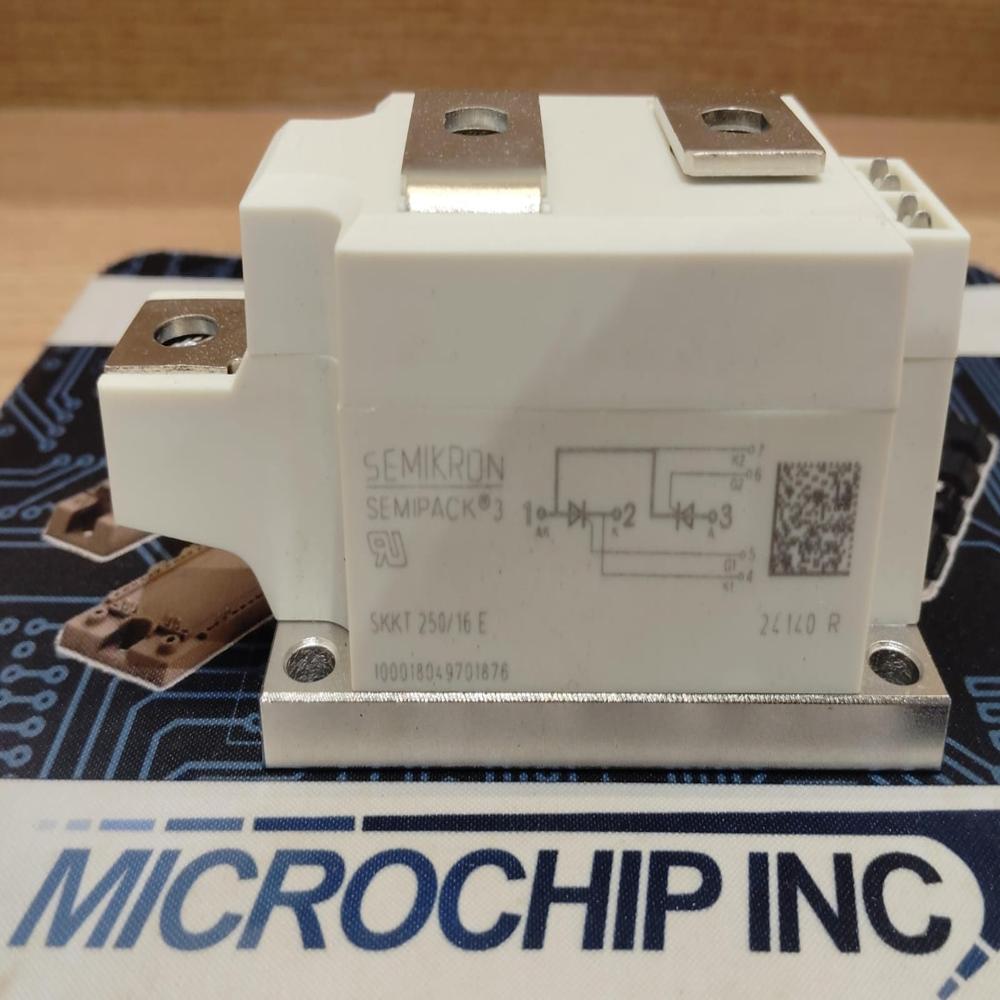

SKKT250/16E DUAL THYRISTOR (SCR) MODULE

Get a Price/Quote

SKKT250/16E DUAL THYRISTOR (SCR) MODULE Specification

Product Type
DUAL THYRISTOR (SCR) MODULE

Application
Power Control, Rectifiers, AC/DC Motor Drives, Industrial Heating

Input Voltage
Up to 1600V (Repetitive Peak Off-State Voltage - VDRM/VRRM)

Output Frequency
50/60 Hz

Output Current
250A (RMS)

Output Voltage
Up to 1600V

Modular
Yes

Interface Type
Screw Terminals

Operation Type
Dual SCR/Thyristor

Size
Standard Semipack 3 Module

Color
White

Weight
Approx. 700g

Dimension (L*W*H)
134mm x 55mm x 30mm (typical Semipack 3 dimensions)

Configuration
Dual Thyristor Common Cathode

Isolation Voltage
2500V RMS

Thermal Resistance, Junction to Case (RthJC)
0.13 K/W

Model
SKKT250/16E

Gate Trigger Current (IGT)
Max. 200mA

Operating Temperature Range
-40C to +125C

Package
SEMPACK 3

Repetitive Peak Reverse Voltage (VRRM)
1600V

Mounting
Chassis Mount / Screw Mounting

Surge Current Capability (ITSM)
4500A

About SKKT250/16E DUAL THYRISTOR (SCR) MODULE

Experience the latest in industrial power management with the SKKT250/16E Dual Thyristor (SCR) Module, an elite solution designed for reliability and excellent performance. Offering a world-class configuration featuring dual SCRs with a common cathode, this classic SEMIPACK 3 module thrives in power control, rectification, industrial heating, and motor drive applications. With transcendent capabilities like a 1600V repetitive peak reverse voltage, massive 4500A surge current handling, and robust chassis mounting, this module effortlessly meets the highest standards in modern power electronics. Elevate your setup with industry-leading durability and efficiency-now available through certified distributors and suppliers.

Versatile Power Applications and Sites

The SKKT250/16E Dual Thyristor Module is engineered for application across a spectrum of demanding power environments. It is commonly applied in power control systems, AC/DC motor drives, industrial heating units, and high-capacity rectifiers. Its adaptable design makes it ideal for installation both in industrial automation settings and electrical substations. As a robust dual SCR module, it is used to efficiently manage, switch, and rectify power in critical operations across varied industrial sites.

Order Completion and Shipping Details

Operating with a strong focus on customer satisfaction, the SKKT250/16E module is stocked for all major domestic markets. Each unit is meticulously packaged for protection and is ready for prompt order completion and quick dispatch. Shipping is facilitated from major FOB ports, ensuring expedited delivery to your site. Rely on our streamlined process to guarantee your module is securely shipped and arrives on time, fully prepared for integration into your power systems.

FAQ's of SKKT250/16E DUAL THYRISTOR (SCR) MODULE:

Q: How do I install the SKKT250/16E Dual Thyristor Module?

A: The module is designed for easy chassis or screw mounting. Detailed installation guidelines are provided in the datasheet to ensure correct interfacing with screw terminals and safe integration into your system.

Q: What are the primary benefits of using the SKKT250/16E module?

A: This module offers high reliability, robust surge current capacity, and exceptional thermal management, making it ideal for controlling power, rectifying currents, and operating in challenging industrial settings.

Q: Where can the SKKT250/16E module be used?

A: It is suitable for power control applications, AC/DC motor drivers, industrial heating equipment, and high-current rectifiers-common environments include factories, automation lines, and energy distribution panels.

Q: What is the process for ordering and receiving the module?

A: After order confirmation, the SKKT250/16E module is packed and dispatched quickly from our warehouse, shipping from main FOB ports directly to your specified location to ensure secure and timely delivery.

Q: How does the module ensure safety and durability?

A: It features a classic SEMIPACK 3 design, high isolation voltage of 2500V RMS, and is constructed for operation in wide temperature ranges, ensuring safety and longevity in diverse operational conditions.
