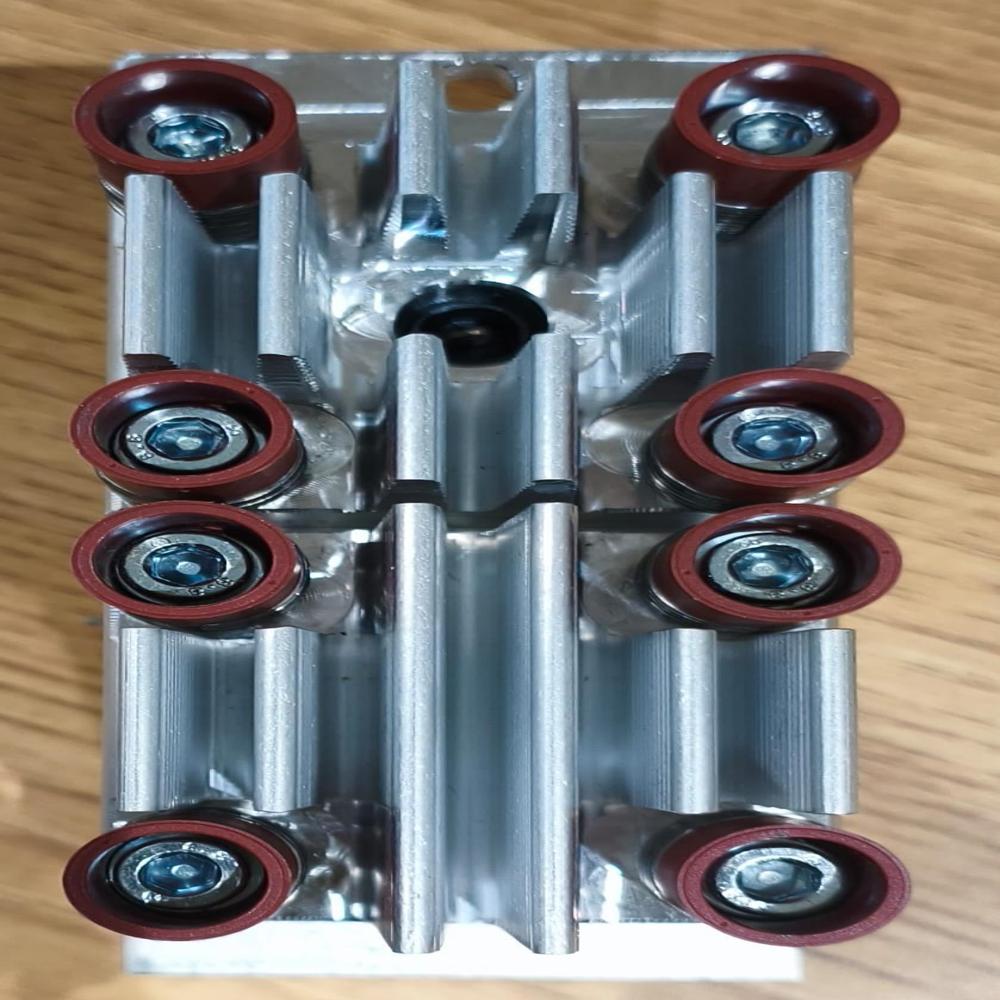

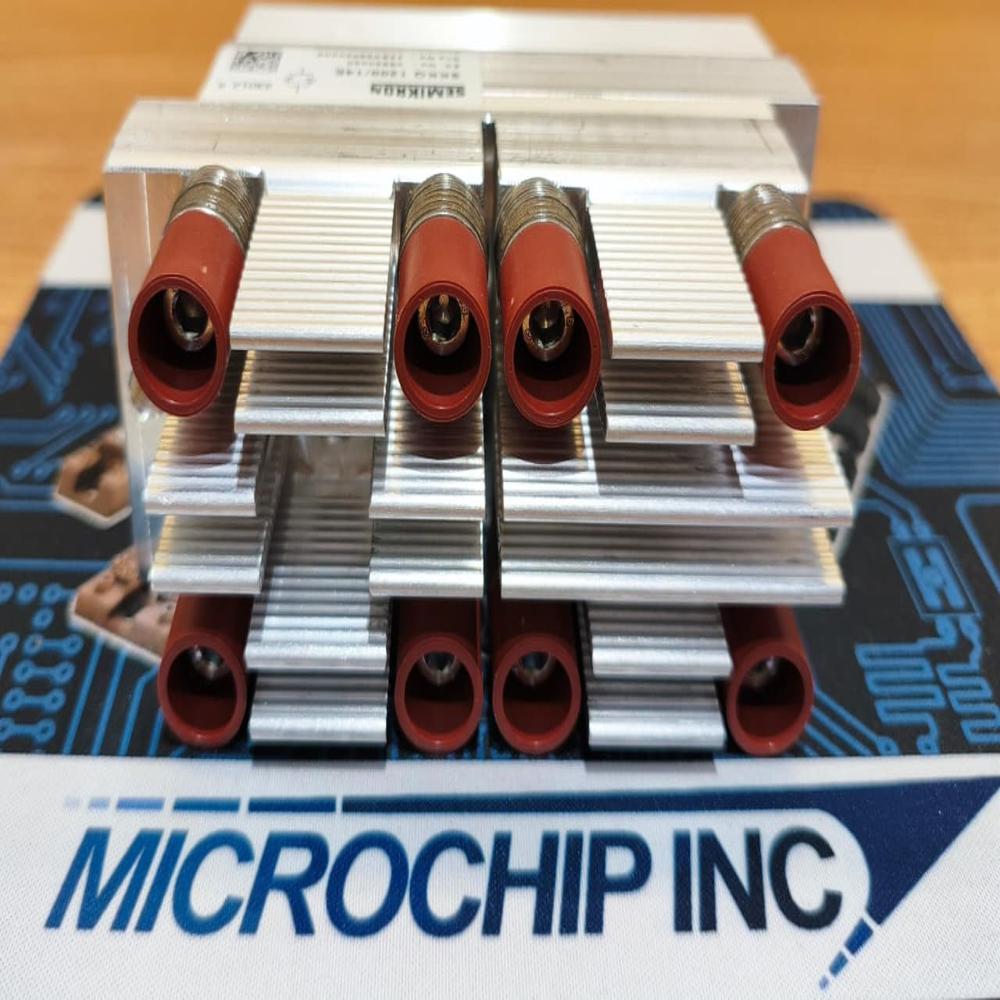

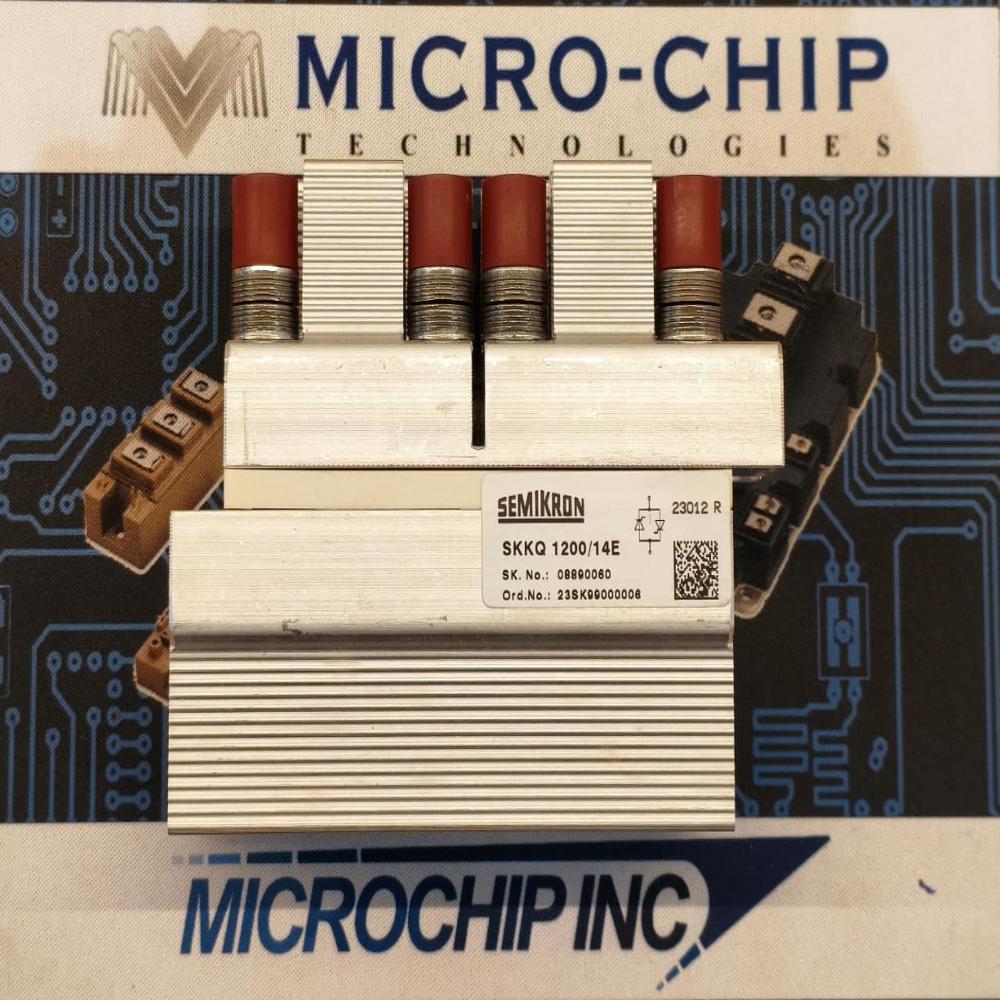

SKKQ1200/14E SEMIKRON THAYTISTOR (SCR) MODULE

Name: SKKQ1200/14E SEMIKRON THAYTISTOR (SCR) MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 25000.0 INR
Availability: InStock

Price 25000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SKKQ1200/14E SEMIKRON THAYTISTOR (SCR) MODULE Specification

Product Type
Thyristor (SCR) Module

Application
Power Control, Motor Drives, AC/DC Converters, Industrial Equipment

Input Voltage
Up to 1200V (as per part name) or as specified in datasheet

Output Frequency
50/60 Hz (Typical for industrial modules)

Output Current
1400A (Approximate, to be confirmed with datasheet)

Output Voltage
Up to 1200V

Modular
Yes

Interface Type
Screw Terminal

Operation Type
Phase Control / Switching

Size
Standard power module size (typically 190mm x 90mm x 45mm, refer to datasheet for exact)

Color
Silver with red insulator bushings

Weight
Approx. 1 to 2 kg (estimated)

Dimension (L*W*H)
as per datasheet, estimated 190mm x 90mm x 45mm

Cooling
Requires external heat sink (baseplate cooled)

Number of Terminals
8

Compliance
RoHS Compliant (Semikron standard)

Model Number
SKKQ1200/14E

Maximum Surge Current
Approx. 14000A (depends on exact variant, check datasheet)

Case Material
Aluminum baseplate with plastic/ceramic insulators

Made In
Germany (as per Semikron origin)

Isolation Voltage
Up to 2500V (between terminals and base plate, typical for this type)

Operating Temperature Range
-40C to +125C (typical for SCR modules)

Mounting Type
Panel mount with screws

About SKKQ1200/14E SEMIKRON THAYTISTOR (SCR) MODULE

Discover the acclaimed SKKQ1200/14E SEMIKRON THYRISTOR (SCR) MODULE, celebrated for its superlative engineering and outstanding reliability. This premier solution is meticulously crafted in Germany and boasts up to 1200V operation with robust 1400A output capability. Engineered with an aluminum baseplate and distinguished by a RoHS-compliant build, it ensures secure installation and enduring durability. Take advantage of instant checkout and unbeatable price, exclusively available from our laureate network of distributors. Ideal for industrial power control, AC/DC conversion, and motor drives, this modular unit is your path to operational excellence.

Versatile Application Areas for Superior Power Control

The SKKQ1200/14E SEMIKRON THYRISTOR (SCR) MODULE finds its strengths in a diverse range of environments, including power control systems, motor drives, and industrial AC/DC converters. It is expertly designed for surface mounting on control panels using screws, making it ideal for deployment across manufacturing facilities, automation units, and heavy equipment. This module thrives in industrial areas where demanding currents and voltages are routine, delivering reliable performance across expansive applications.

Certifications, FOB Port, and Delivery Time - Transparent Value

Certified for RoHS compliance, the SKKQ1200/14E adheres to the highest market value standards of environmental charge and longevity. Orders are delivered FOB at major international ports, ensuring a seamless exchange process from shipment to receipt. Turnaround and delivery times are precisely managed to safeguard your expectations, aligning with global distributor protocols for fast, dependable fulfillment.

FAQ's of SKKQ1200/14E SEMIKRON THAYTISTOR (SCR) MODULE:

Q: How is the SKKQ1200/14E module typically used in industrial applications?

A: The SKKQ1200/14E is mainly used for phase control and switching operations in motor drives, power control systems, and AC/DC converters, ensuring efficient management of high current and voltage loads.

Q: What are the key advantages of choosing this premier SCR module?

A: Its German engineering, high surge capacity (up to 14000A), robust panel mounting, and RoHS compliance deliver superior longevity, safety, and operational flexibility in demanding industrial environments.

Q: Where is the ideal placement or surface of application for this module?

A: It is best panel-mounted using screws onto standardized industrial enclosures, with the baseplate requiring an external heat sink to maximize cooling efficiency and performance stability.

Q: What certifications does the SKKQ1200/14E SCR module hold?

A: This module is RoHS compliant, aligning with international directives for restricted hazardous substances, thus ensuring safer operation and market acceptance globally.

Q: When can customers expect delivery after placing an order, and what is the FOB port policy?

A: Orders for the SKKQ1200/14E are processed efficiently and shipped FOB from major international ports, ensuring prompt and reliable worldwide delivery. Specific delivery times are based on destination and shipping arrangements.
