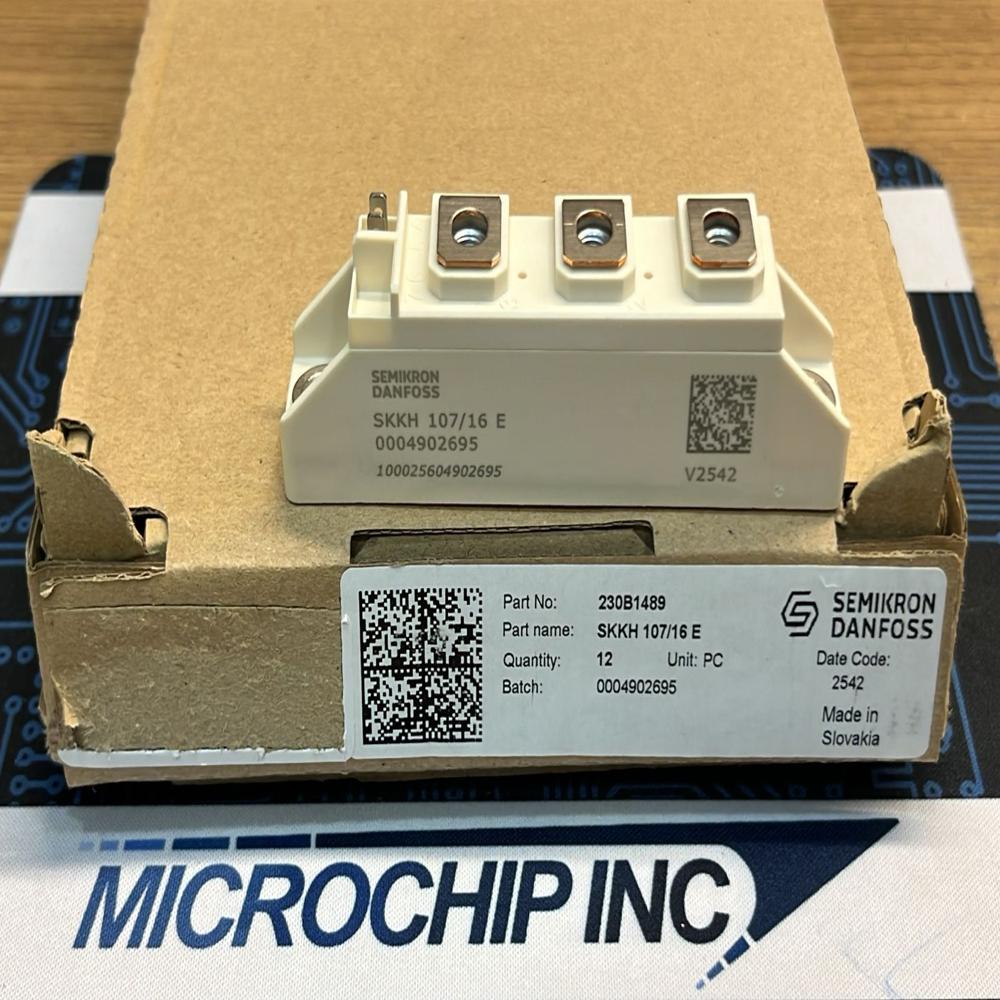

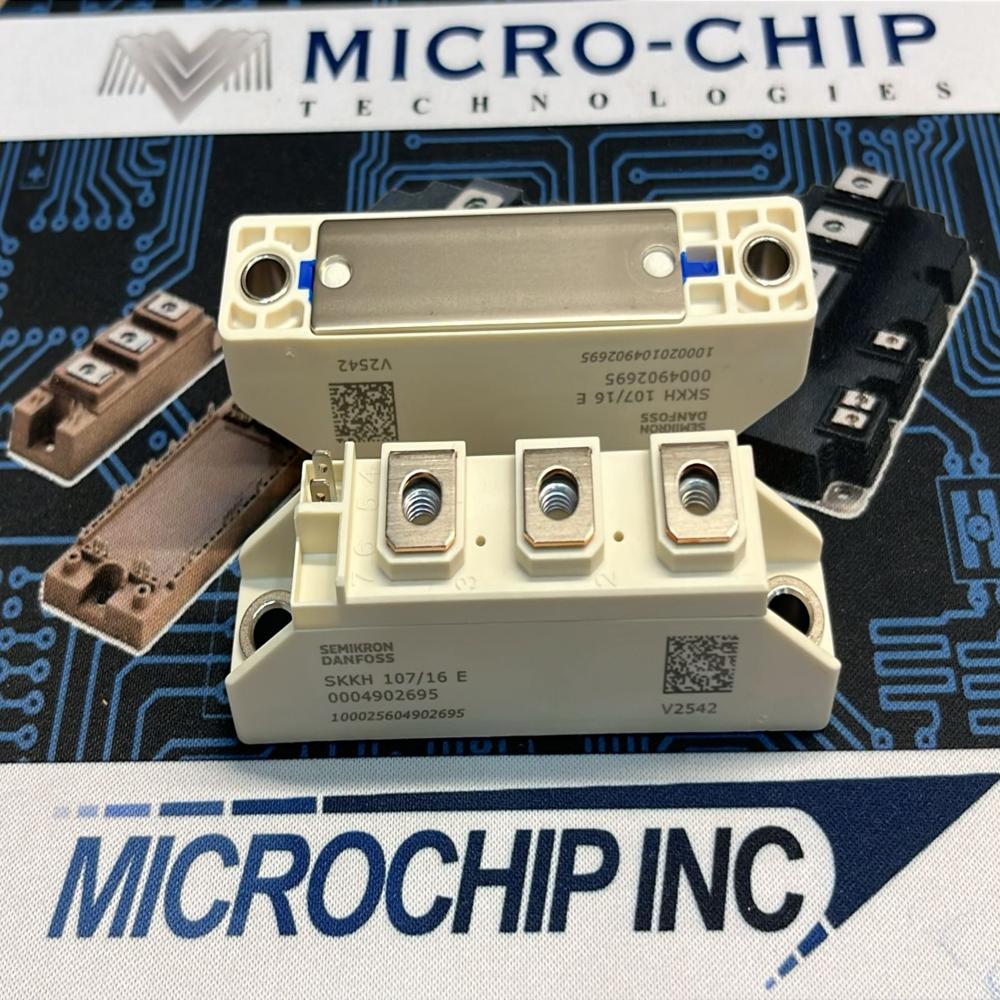

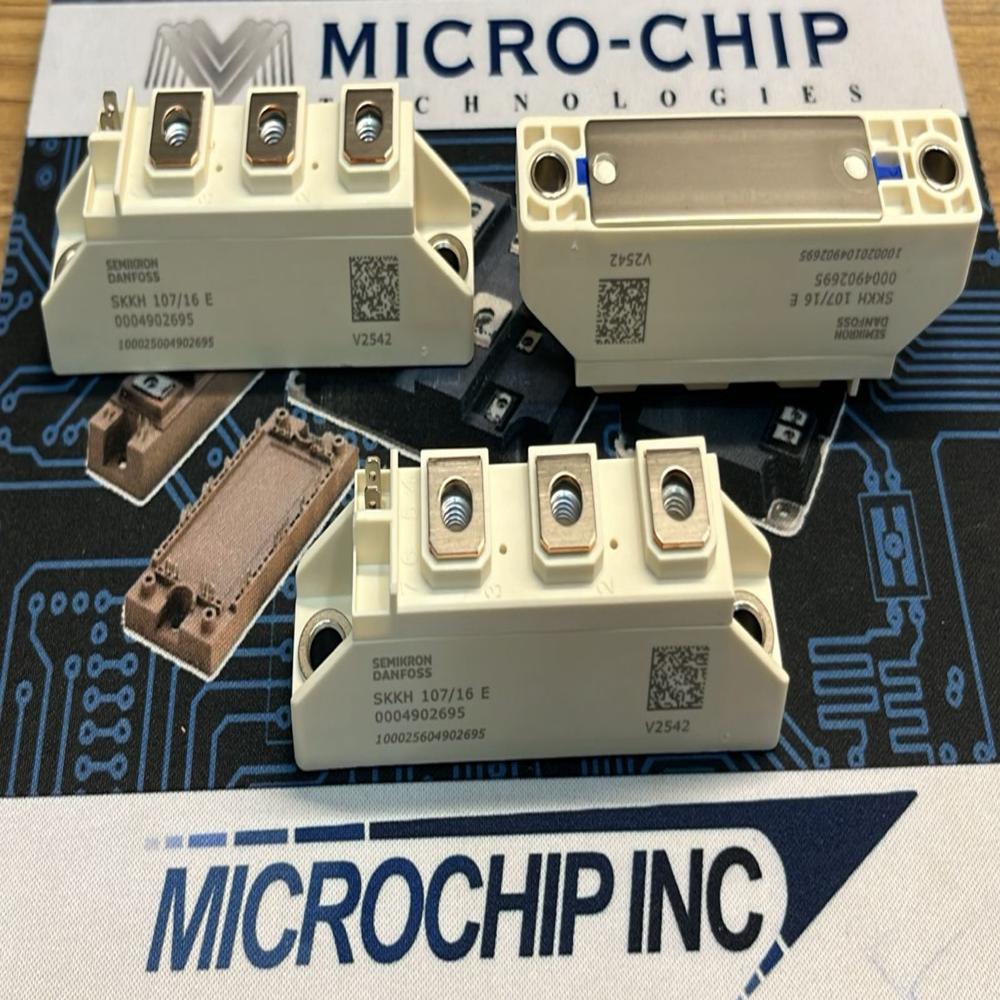

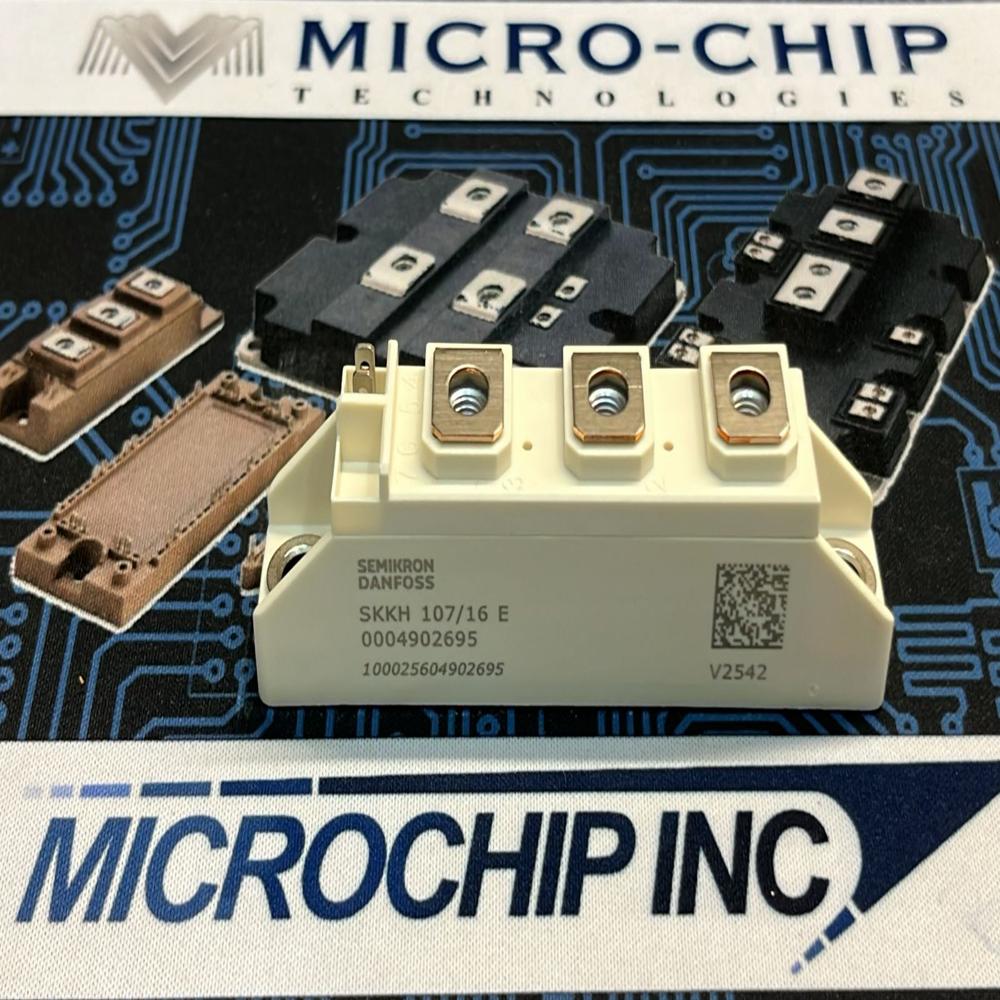

SKKH 107/16E

Name: SKKH 107/16E
Brand: MICROCHIP TECHNOLOGIES
Price: 1000.0 INR
Availability: InStock

Price 1000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

SKKH 107/16E Specification

Components
Thyristor + Diode (Semiconductor Module)

Features
High surge current capability, compact module design, isolated baseplate

Output
High current output for load switching

Usage
Power electronics, industrial inverters, motor drives

Thermal Conductivity
Custom heatsink required

Response Time
Fast switching capability

Operating Temperature
-40C to +125C

Power Supply
AC/DC (Depending on circuit design)

IP Rating
IP00

Power Source
External AC/DC supply

Input
Standard electrical input for module

Interface
Screw terminals

Product Type
Phase Control Thyristor/Diode Module

Application
Industrial automation, power converters, motor controls

Rated Voltage
1600 V

Supply Voltage
Up to 1600 V

Size
Standard Semikron module size

Dimension (L*W*H)
106 mm x 45 mm x 30 mm

Function
Semiconductor Module for power control and rectification

Color
Black/Silver

Weight
Approx. 470 g

Capacity
107 A

Current Rating
107 A

Frequency
50/60 Hz (Application-dependent)

Case Material
Plastic encapsulation with insulated metal baseplate

Forward Voltage Drop (per element)
1.4 V (typical at rated current)

Storage Temperature
-40C to +150C

Reverse Recovery Time
<200 s

Mounting
Screw mount

Isolation Voltage
2500 V (RMS) to baseplate

Surge Current Rating
2000 A

Standards
RoHS Compliant

Baseplate Flatness
<50 m

Model Number
SKKH 107/16E

SKKH 107/16E Trade Information

Minimum Order Quantity
1 Number

Supply Ability
100 Per Month

Delivery Time
7 Days

About SKKH 107/16E

Features* Heat transfer through aluminium oxide ceramic insulated metal baseplate UL recognized, file no. E63532 Typical Applications DC motor control (e. g. for machine tools) AC motor soft starters Temperature control (e. g. for ovens, chemical processes) Professional light dimming (studios,

Reliable High-Power Performance

Built for industrial power electronics, the SKKH 107/16E supports up to 107 A at 1600 V, handling intensive load switching while maintaining a typical forward voltage drop of just 1.4 V per element. With a robust surge current rating of 2000 A, this module delivers reliable performance in high-demand scenarios such as motor drives and automated converter systems.

Compact and Insulated Design

The plastic-encapsulated module features an isolated metal baseplate, ensuring electrical safety and simplified mounting thanks to its screw terminal interface and baseplate flatness of less than 50 m. Its compact size (106 x 45 x 30 mm) allows easy integration into standard industrial setups, maximizing space without compromising power density.

Versatile Industrial Applications

Engineered for versatility, the SKKH 107/16E supports both AC and DC power circuits, making it suitable for industrial automation, power conversion, and motor control environments. With RoHS compliance and operation from -40C to +125C, it ensures reliability in diverse installation settings.

FAQ's of SKKH 107/16E:

Q: How is the SKKH 107/16E semiconductor module mounted and connected?

A: The module utilizes a screw mount design for secure attachment and features screw terminals for straightforward electrical connections to power circuits and loads.

Q: What are the primary applications of the SKKH 107/16E module?

A: It is primarily used in industrial automation, inverter systems, motor drives, and power converters where precise and reliable power control or rectification is required.

Q: When should a custom heatsink be used with this module?

A: A custom heatsink is necessary during continuous high-power operations to efficiently manage thermal output and maintain the operating temperature within safe limits.

Q: Where can the SKKH 107/16E be installed considering its design?

A: Given its compact form factor and IP00 rating, the module is intended for installation inside controlled enclosures or power cabinets within industrial environments.

Q: What are the main benefits of using the SKKH 107/16E in power electronics?

A: Key advantages include high surge current handling (2000 A), fast response times, compact size, robust electrical isolation, and full RoHS compliance for environmental safety.

Q: How does the SKKH 107/16E ensure electrical isolation and safety?

A: The plastic encapsulation, combined with an insulated metal baseplate and high isolation voltage of 2500 V RMS, provides excellent protection from electrical faults between circuit and baseplate.
