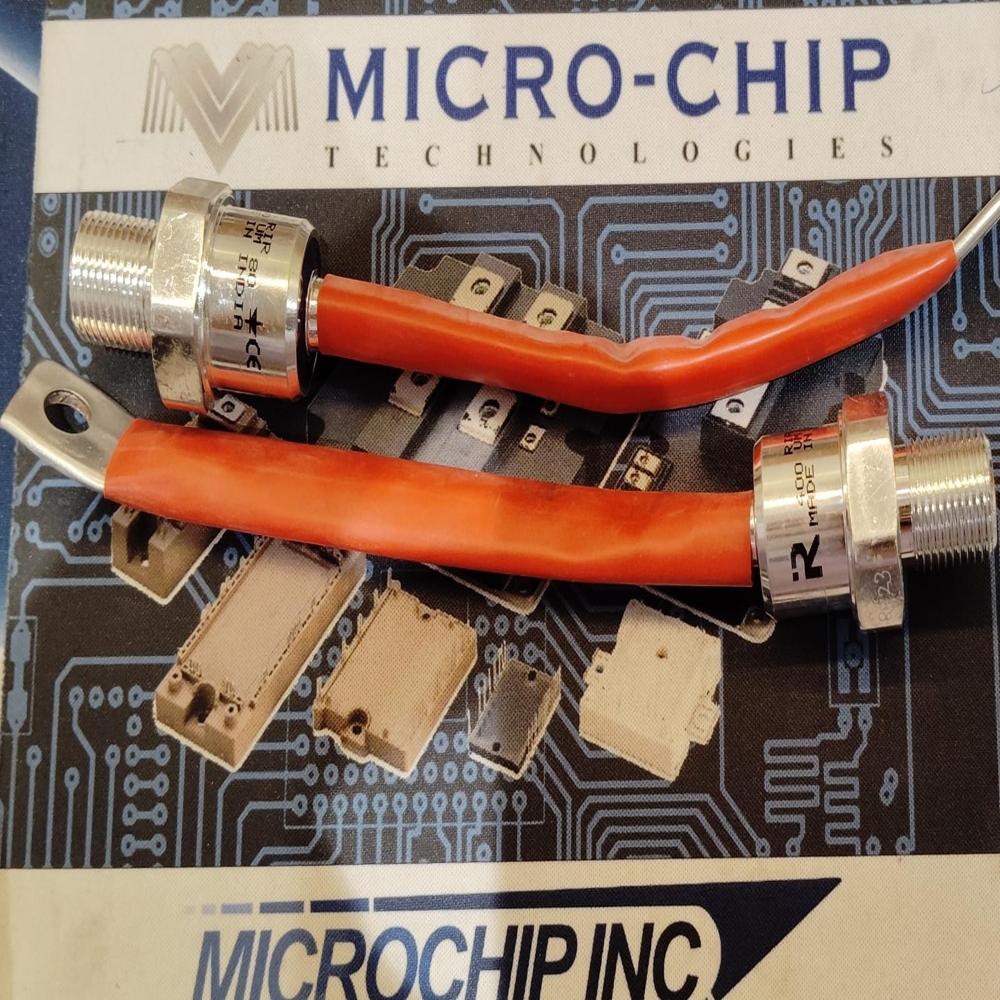

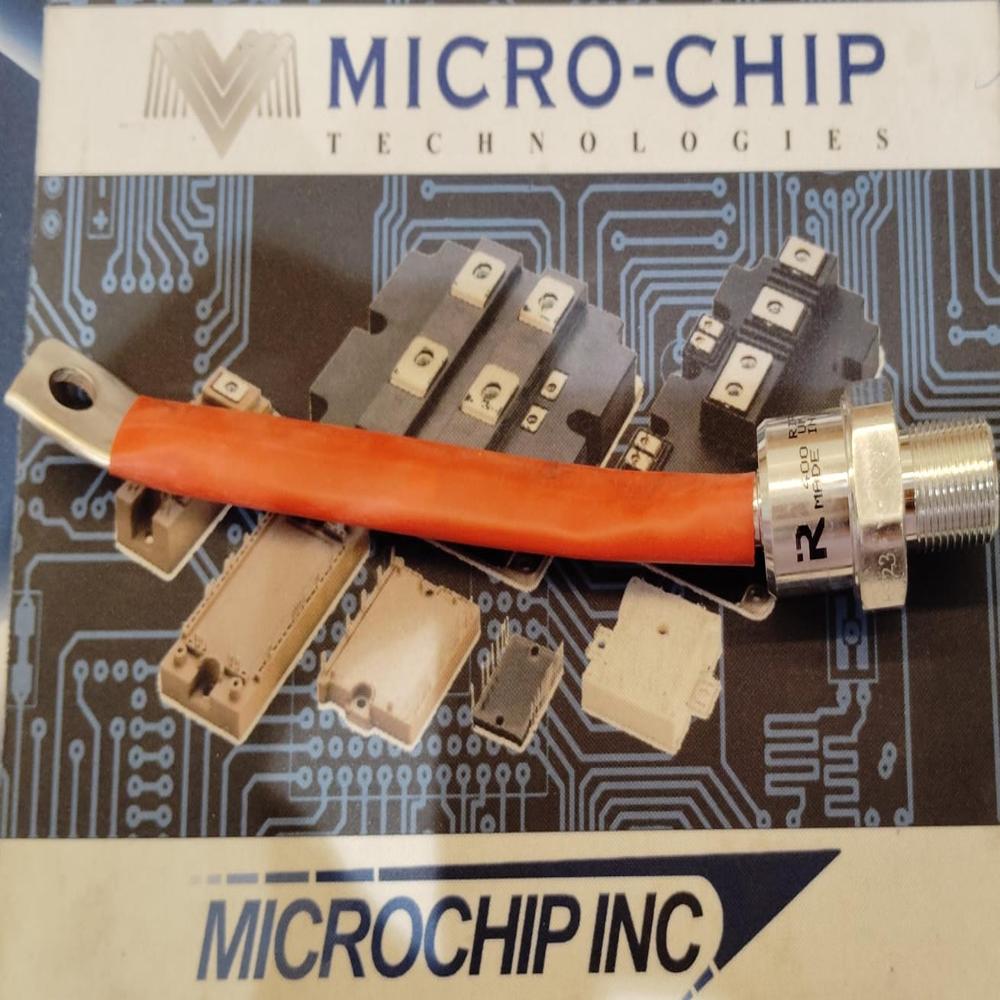

RIR 400UM 80

Name: RIR 400UM 80
Brand: MICROCHIP TECHNOLOGIES
Price: 1200.0 INR
Availability: InStock

Price 1200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

RIR 400UM 80 Specification

Thermal Conductivity
High, with metal stud design

IP Rating
Not specified (generally IP20 with exposed terminals)

Operating Temperature
-40C to +150C

Power Supply
Electrical

Output
Rectified DC Output

Features
Heavy-duty, high surge current, easy installation

Components
Semiconductor Diode, Insulated Copper Cable

Power Source
External electrical connection

Response Time
Fast switching, typical for stud diode

Interface
Stud mounting, cable lug connection

Charging Voltage
Supported up to rated voltage

Input
AC/DC Power Source

Usage
For High-Current Rectification Applications

Product Type
Stud Type Power Diode

Application
Motor Drives, Battery Chargers, Power Conversion

Rated Voltage
400V

Supply Voltage
Up to 400V

Size
Standard stud size, wire approx. 20 cm

Dimension (L*W*H)
Body: ~35mm (L) x 20mm (D)

Function
High-Voltage Rectifier Diode

Color
Silver Body with Orange Insulated Lead

Weight
Approx. 90 gram

Thickness
Cable Jacket approx. 5mm

Capacity
Up to 400 Amps

Current Rating
400A

Frequency
50/60 Hz compatible

Package Type
Stud Diode with flexible cable

Mounting
Threaded stud for heatsink or panel mount

Model
RIR 400UM 80

Insulation Material
Heat-resistant silicone/rubber sleeve

Stud Thread Size
Typically M12 x 1.75 (refer datasheet for exact)

Forward Voltage Drop (VF)
1.1V (typical at rated current)

Compliance
RoHS Compliant

Reverse Recovery Time
Low, suitable for high frequency

RIR 400UM 80 About

The RIR 400UM 80 High-Voltage Rectifier Diode commands favorable reviews for its ace performance in high-current rectification. Delivering an incomparable rated voltage of 400V and a current rating of 400A, it's perfectly suited for demanding applications such as motor drives, battery chargers, and power conversion systems. Its stud-mounted, silver body with an orange insulated lead ensures easy, secure installation and prime thermal conductivity. Enjoy the latest diode technology, fast switching, and low reverse recovery time-all available for a limited time with RoHS compliance.

Versatile Applications and Surface Suitability

The RIR 400UM 80 is ideal for application surfaces requiring robust electrical connections and efficient heat dissipation. Its threaded stud allows for secure heatsink or panel installation, making it suitable for use in motor drives, battery chargers, and power conversion setups. Designed for areas where high surge current and reliable rectification are essential, this diode excels in industrial control rooms, charging stations, and power supply units. Its build supports consistent operation on both AC and DC inputs.

Delivery Timeline, Sample Outlay, and Certifications

Your order of the RIR 400UM 80 benefits from streamlined packaging and precise logistics management, minimizing your outlay in project planning. Standard delivery times are prompt, ensuring timely integration. Sample policies are available for qualified projects, enabling hands-on evaluation before bulk procurement. Each unit is RoHS certified, guaranteeing compliance with the latest safety and environmental standards. Rely on our responsive distribution network to support your application needs efficiently and reliably.

FAQ's of RIR 400UM 80:

Q: How is the RIR 400UM 80 mounted for optimal performance?

A: The RIR 400UM 80 features a threaded stud that is designed for heatsink or panel mount, ensuring effective heat dissipation and reliable electrical connections in high-current applications.

Q: What are the primary uses and benefits of this diode?

A: This high-voltage rectifier diode is suited for heavy-duty rectification, especially in motor drives, battery chargers, and power conversion equipment, offering quick response times and stable high-current performance.

Q: When can I expect delivery after placing an order?

A: Typically, delivery is processed promptly with reliable logistics, and timelines depend on your location and stock availability. Expedited shipping may be available upon request.

Q: Where can the RIR 400UM 80 be effectively deployed?

A: The diode excels in industrial environments, charging stations, and power supply units where efficient high-current and high-voltage rectification is required.

Q: What is the process for sampling and certification verification?

A: Samples may be provided for qualifying application reviews. Each diode comes with RoHS certification, ensuring compliance and quality for demanding operational environments.
