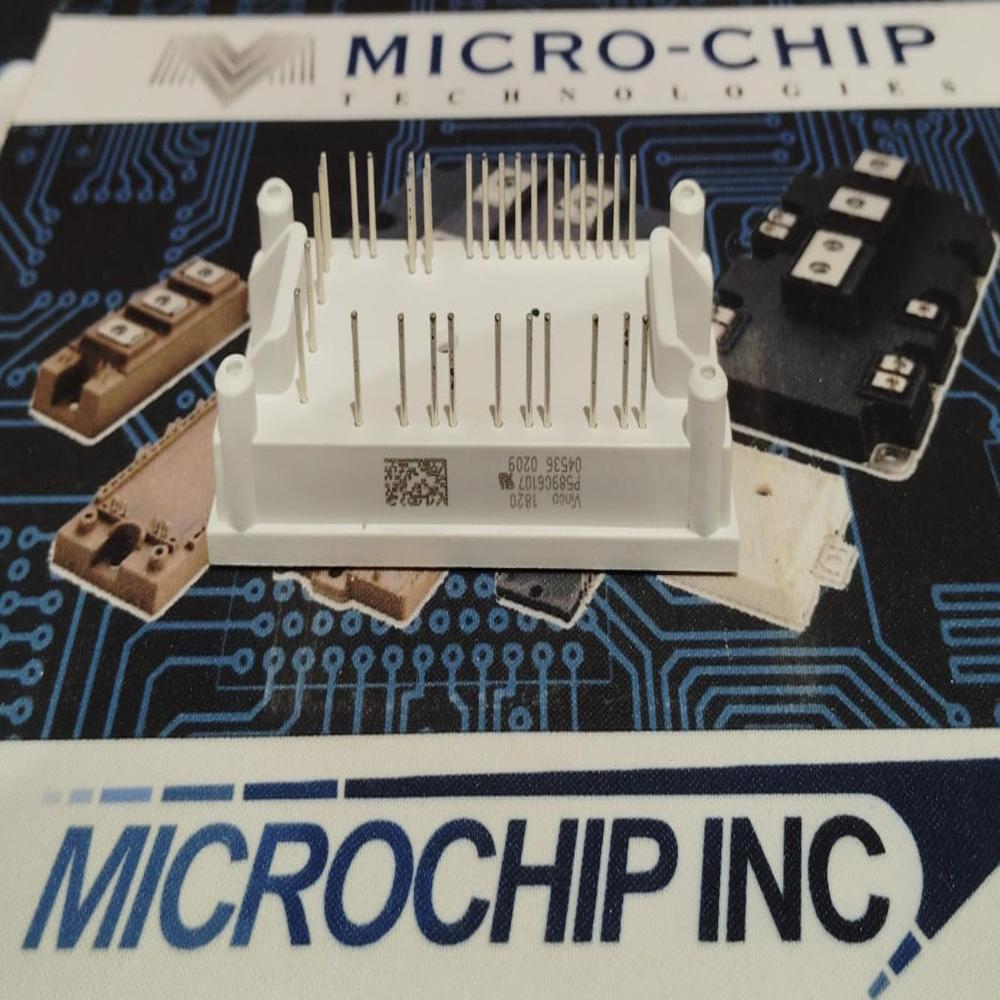

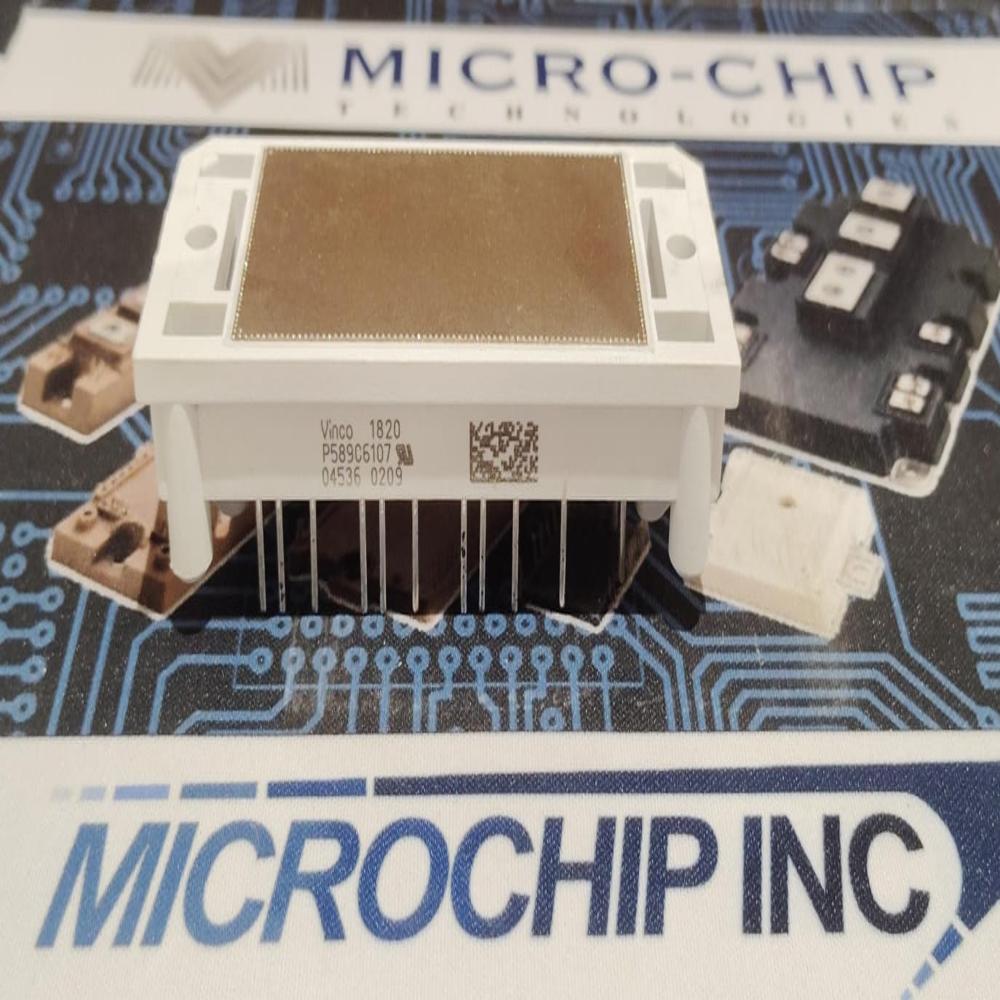

P589C6107 IGBT POWER MODULE

Name: P589C6107 IGBT POWER MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 4000.0 INR
Availability: InStock

Price 4000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

P589C6107 IGBT POWER MODULE Specification

Product Type
IGBT Power Module

Application
Industrial Motor Drives, UPS, Inverters, Power Supplies, Renewable Energy Systems

Input Voltage
600V

Output Frequency
50/60 Hz

Output Current
100A

Output Voltage
1200V

Modular
Yes

Interface Type
Screw Terminal

Operation Type
High Speed Switching

Size
Standard

Color
Black

Weight
Approx. 800g

Dimension (L*W*H)
118 mm x 62 mm x 30 mm

Package Type
Module

Collector-Emitter Voltage (Vces)
1200V

Insulation Type
Copper Baseplate

Maximum Junction Temperature (Tj)
150C

Switching Frequency
Up to 20 kHz

Configuration
Dual IGBT Module

RoHS Compliant
Yes

Temperature Range
-40C to +125C

Isolation Voltage
2500V AC (1 min)

Mounting Type
Panel Mount

Collector Current (Ic)
100A

P589C6107 IGBT POWER MODULE Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

About P589C6107 IGBT POWER MODULE

Order today and discover the acclaimed P589C6107 IGBT Power Module, designed for meritorious performance in industrial motor drives, UPS, power supplies, and renewable energy systems. With a radiant dual IGBT module configuration, it supports up to 100A collector current and a formidable 1200V collector-emitter voltage. The copper baseplate ensures valorous insulation, while 2500V AC isolation and a 150C maximum junction temperature guarantee robust safety. With high-speed switching up to 20 kHz and RoHS compliance, this modular solution is both reliable and adaptable. Find uncompromised quality for your power management needs.

Directions for Use & Key Features

Install the P589C6107 IGBT Power Module using the screw terminal interface for a secure connection and fit the panel mount as per industrial requirements. Specifically developed for high-speed switching applications, it excels in motor drives, UPS setups, and renewable energy circuits. The copper baseplate and broad operational temperature range from -40C to 125C ensure reliable performance in varying environments. Additional features include modular design, standard sizing, and RoHS compliance, making it ideal for dynamic power control.

Domestic Market & Shipping Policy

We serve a wide domestic market with swift, secure shipping of the P589C6107 IGBT Power Module. Each unit is shipped goods tested for reliability and packed per industry norms. Sample policies are available upon request, with flexible payment terms tailored to clients' preferences. Our competitive rate and prompt dispatch guarantee rapid delivery and utmost client satisfaction. Trust us to deliver high-quality modules with professional handling and transparent logistics every time.

FAQ's of P589C6107 IGBT POWER MODULE:

Q: How do I install the P589C6107 IGBT Power Module?

A: Installation is straightforward-mount the module using the panel mount option and connect via the screw terminal interface, ensuring a secure and reliable fixation suitable for industrial environments.

Q: What are the main applications of this module?

A: The P589C6107 is acclaimed for its use in industrial motor drives, UPS, power supplies, inverters, and renewable energy systems, offering uncompromised performance and reliability.

Q: When is high-speed switching beneficial in usage?

A: High-speed switching, up to 20 kHz, is particularly beneficial in applications requiring rapid modulation of power, such as precision motor control and efficient energy conversion.

Q: Where can I use this module given its temperature range?

A: With an operational temperature range from -40C to 125C, the module can be used in diverse industrial and renewable environments where temperature fluctuations are common.

Q: What process ensures secure shipping of the module?

A: Each module is thoroughly tested and securely packed before being shipped, ensuring it reaches you in perfect condition with all quality standards intact.

Q: What are the benefits of the copper baseplate and insulation?

A: The copper baseplate provides excellent thermal conductivity and strength, while high insulation (2500V AC) ensures safety and stability during high-power operations.
