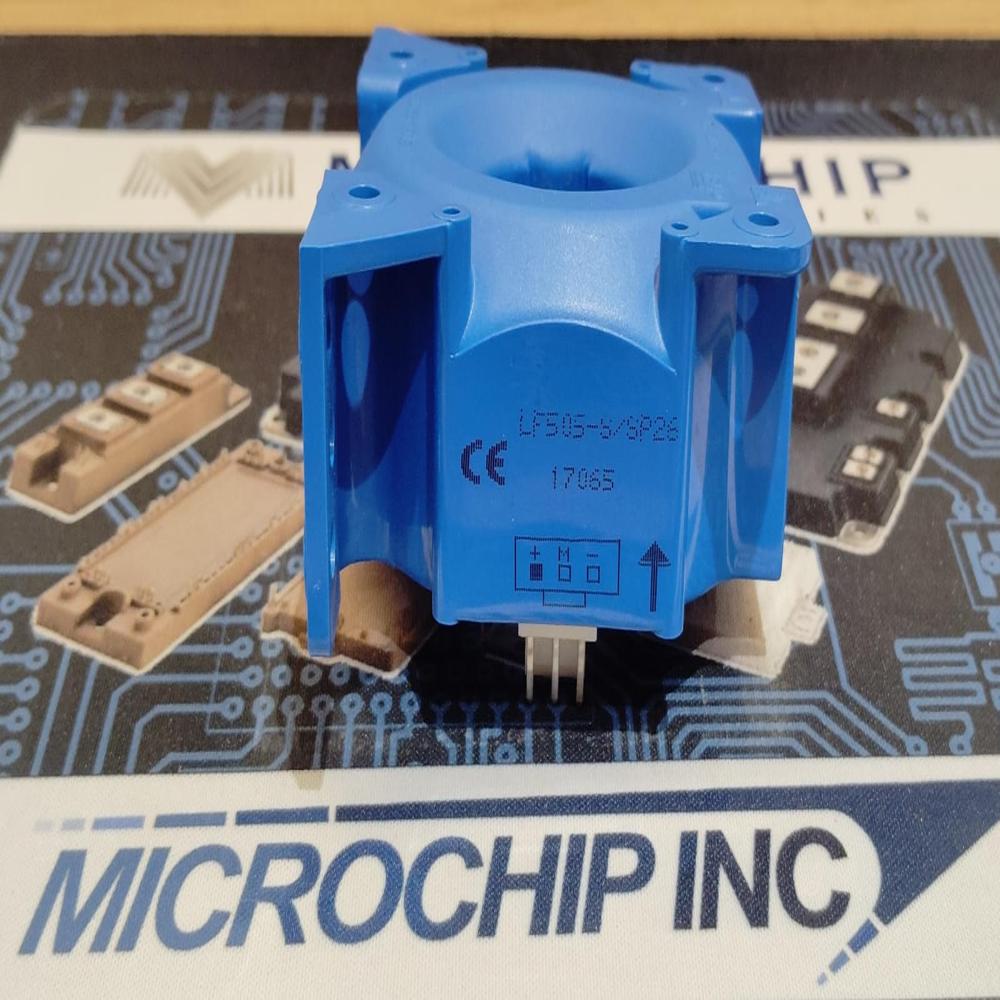

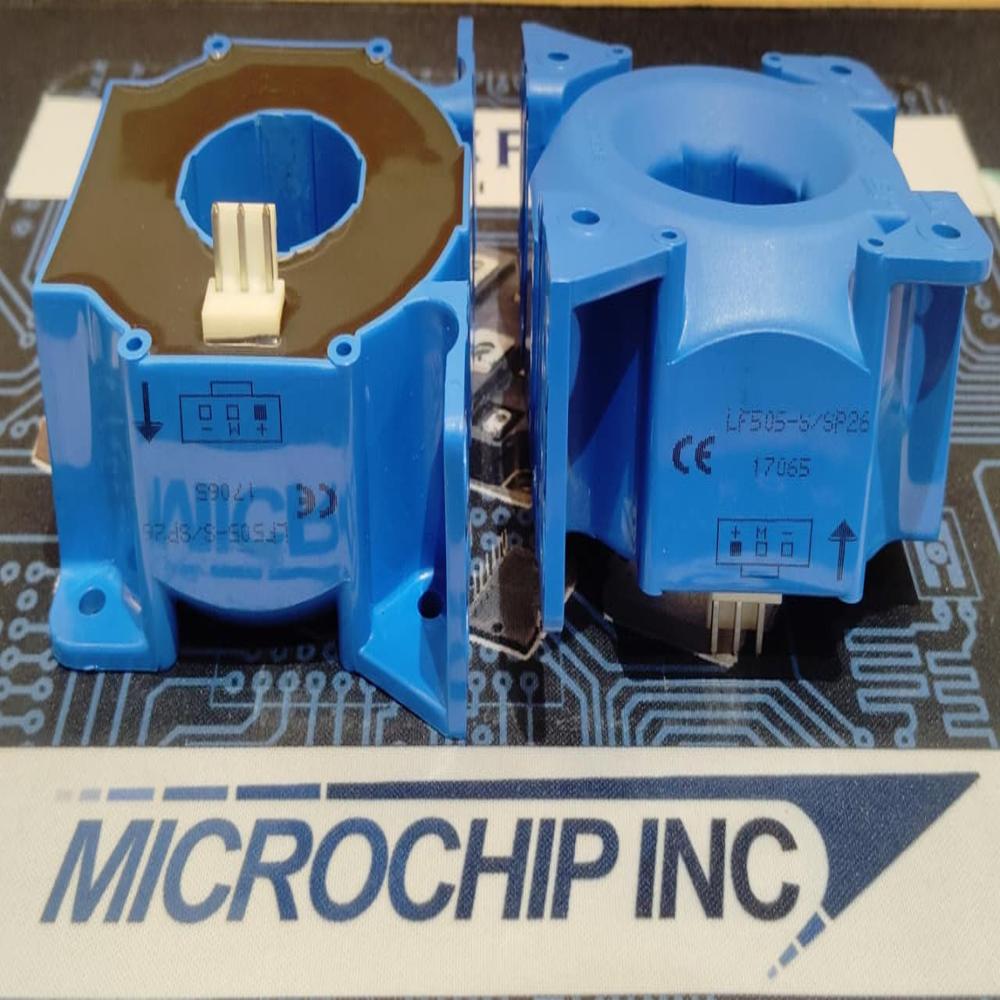

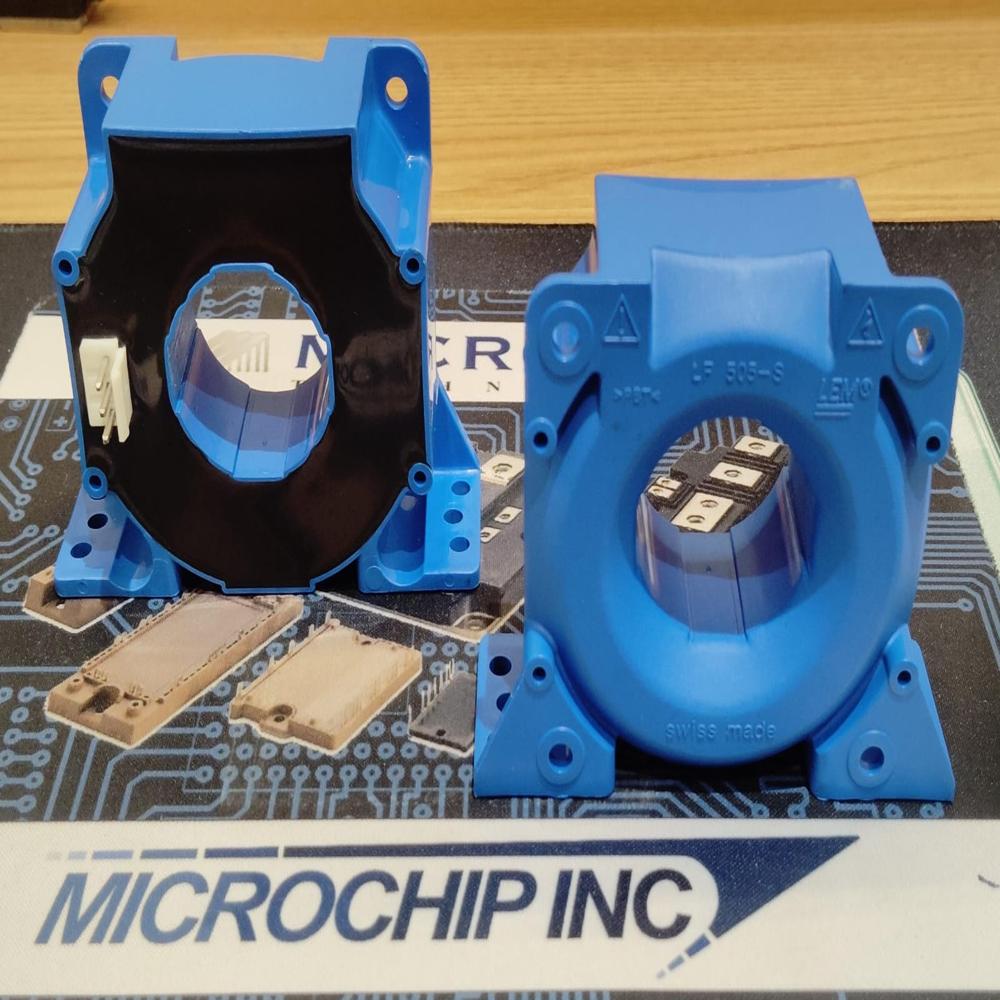

LF505-S/SP26 Current Transducer (Current Sensor)

Name: LF505-S/SP26 Current Transducer (Current Sensor)
Brand: MICROCHIP TECHNOLOGIES
Price: 15000.0 INR
Availability: InStock

Price 15000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

LF505-S/SP26 Current Transducer (Current Sensor) Specification

Resistance
28 (typical)

Output
Analog Voltage Output

Theory
Hall Effect

Type
Closed Loop Current Transducer

Accuracy
0.9% FS (Full Scale)

Operating Voltage
+15V DC (5%)

Output Voltage
5V (nominal)

Compensated Temperature
-10C to +70C

Storage Temperature
-55C to +90C

Operating Temperature
-40C to +85C

Aperture (Hole Diameter)
33mm

Offset Voltage
<20 mV

Frequency Range
DC to 50kHz (-1dB)

Insulation Voltage
4 kV / 50 Hz / 1 min

Primary Current Range
500A

Mounting Type
Panel Mount

Standards
CE Mark, RoHS Compliant

Response Time
<1 s

Linearity
0.1% of FS

Weight
~290g

About LF505-S/SP26 Current Transducer (Current Sensor)

Seize instant savings and unassailable value with the LF505-S/SP26 Current Transducer-your top-drawer solution for precise current measurement up to 500A. Carrying the CE mark and RoHS compliance, this high-performance sensor delivers brilliant accuracy (0.9% FS), rapid response time (<1s), and exceptional linearity (0.1% FS). With a remarkable frequency range (DC to 50kHz), robust insulation voltage (4kV), and a reliable closed loop Hall Effect design, you're guaranteed the lowest price on brilliance that stands unrivaled in industrial monitoring and control applications.

Versatile Applications & Robust Features

The LF505-S/SP26 Current Transducer is engineered for diverse applications including industrial automation, energy management, power distribution, and motor control. Its robust panel-mount design and substantial 33mm aperture accommodate large conductors, making it ideal for both retrofitting and new installations. The sensor's reliable Hall Effect closed loop technology ensures dependable analog voltage output, while durable, RoHS-compliant materials support high insulation and performance standards.

Payment Terms, Delivery, and Supply Assurance

Experience ease with flexible payment terms and secure shipping for your LF505-S/SP26 Current Transducer order. Stock is ready for swift dispatch, ensuring you benefit from fast delivery times and uninterrupted workflow. As an authorized distributor, we guarantee the lowest price and continuous availability, so your supply chain remains unbroken, and your budget stays protected-making procurement as streamlined as your operations.

FAQ's of LF505-S/SP26 Current Transducer (Current Sensor):

Q: How does the LF505-S/SP26 Current Transducer ensure accurate current measurement?

A: The LF505-S/SP26 utilizes advanced closed loop Hall Effect technology, providing high accuracy (0.9% FS) and superior linearity (0.1% FS), ensuring reliable and precise current sensing in various applications.

Q: What types of applications is this current sensor typically used for?

A: It is perfectly suited for industrial automation, power distribution, renewable energy systems, and motor control, thanks to its wide primary current range and robust design.

Q: When can I expect delivery after placing an order for the LF505-S/SP26?

A: With stock ready and efficient logistics, orders are processed promptly, and delivery typically occurs within a few business days to ensure minimal downtime.

Q: Where do you ship the LF505-S/SP26 Current Transducer?

A: We provide secure shipping across domestic and international locations, allowing you to deploy top-tier current sensing wherever your projects require.

Q: What are the benefits of purchasing through your distribution channel?

A: By buying from us, you get the assurance of lowest price, stock availability, genuine products with all certifications, and expert pre- and post-sales support.

Q: How easy is the installation process for this current transducer?

A: Installation is straightforward with the panel mount design and a large 33mm aperture, simplifying integration into both existing setups and new systems.
