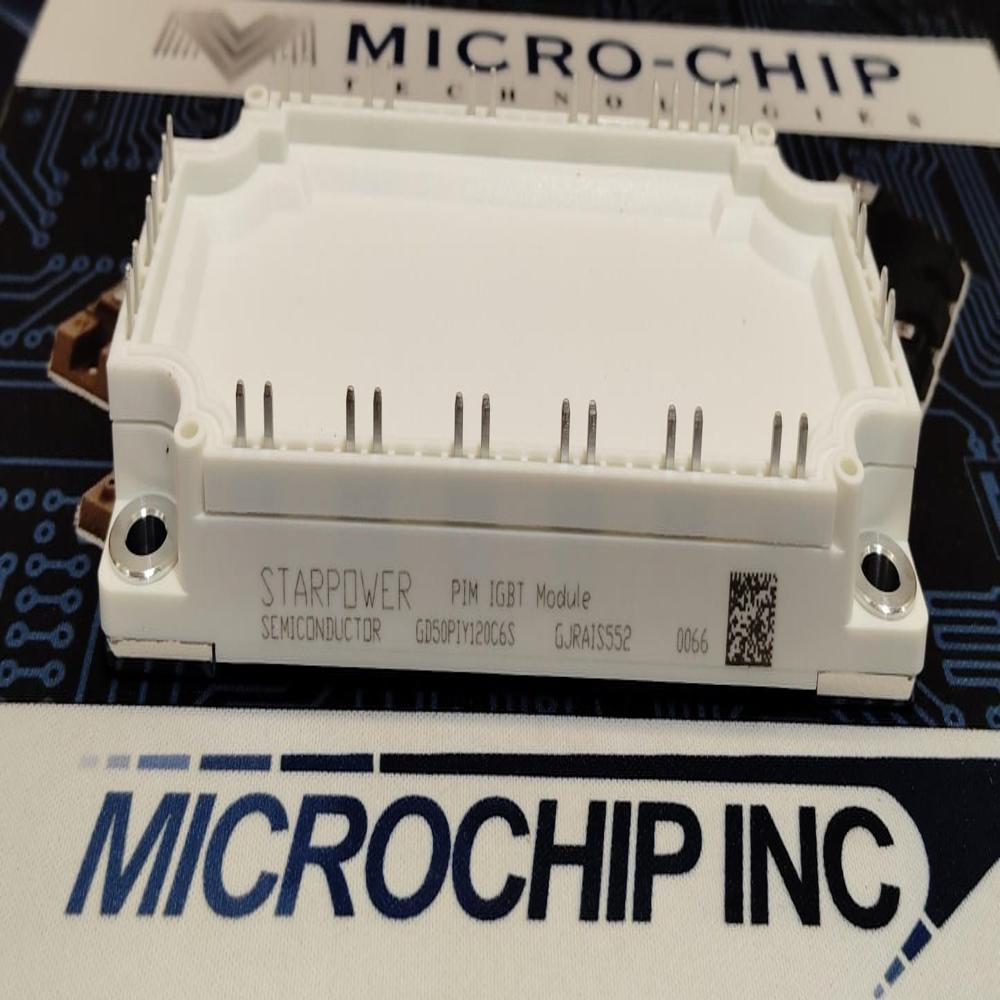

GD50PIY120C6S STARPOWER PIM IGBT MODULE

Name: GD50PIY120C6S STARPOWER PIM IGBT MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 3600.0 INR
Availability: InStock

Price 3600.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

GD50PIY120C6S STARPOWER PIM IGBT MODULE Specification

Features
Compact, Integrated Protection, High Reliability

Response Time
Fast Switching Time

Components
IGBT, Diode Bridge, NTC Thermistor

IP Rating
IP20 (typ.)

Interface
Screw Terminal

Sensors Specification
Integrated NTC Thermistor

Power Source
Electrical

Power Supply
Electric

Operating Temperature
-40C to 150C (Tj)

Input
IGBT Gate Drive Signal

Thermal Conductivity
Optimized Baseplate for Heat Dissipation

Usage
Motor Drives, Inverter Applications, Power Control

Output
Three-Phase Output

Product Type
PIM IGBT Module

Application
AC Motor Drives, Industrial Inverters, Power Conversion

Rated Voltage
1200V

Supply Voltage
1200V Max

Size
Standard PIM outline

Dimension (L*W*H)
106 mm x 62 mm x 30 mm (approx.)

Function
Insulated Gate Bipolar Transistor (IGBT) Power Module

Color
Black/White Body with OEM markings

Weight
Approx. 0.22kg

Current Rating
50A

Capacity
50A

Thickness
Approx. 30 mm

Frequency
50/60Hz

Collector Current (Ic)
50A

Life Expectancy
>10^5 hours (at rated conditions)

Mounting Style
Screw Mount, Chassis Mount

Package Type
PIM IGBT Module

Integrated Protection
Short-circuit, Over-temperature (NTC)

Gate-Emitter Voltage (Vge)
+/-20V

Isolation Voltage
2500V AC/min

Model
GD50PIY120C6S

Cooling
Baseplate for external heatsink

Collector-Emitter Voltage (Vce)
1200V

Module Configuration
3-Phase Inverter + Brake + Soft Start

Reverse Voltage of Diode
1200V

GD50PIY120C6S STARPOWER PIM IGBT MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About GD50PIY120C6S STARPOWER PIM IGBT MODULE

The GD50PIY120C6S STARPOWER PIM IGBT MODULE is a best-seller designed for pivotal industrial applications demanding uncompromised performance and value. This polished 3-phase inverter module integrates brake and soft start functionalities, offering customizable solutions in motor drives and power control systems. With a noble 1200V collector-emitter voltage and 50A current rating, it boasts advanced integrated protection, fast switching, and optimized baseplate for heat dissipation. Its robust build, compact form, and reliable screw mounting make it the preferred choice among discerning distributors, importers, and suppliers across India.

Versatile Application & Standout Features

The GD50PIY120C6S STARPOWER PIM IGBT MODULE excels in AC motor drives, inverter applications, and power conversion due to its robust power handling and protective features. Special highlights include integrated NTC thermistor for thermal monitoring, short-circuit and over-temperature safeguards, and a chassis mount design. With a 1200V capacity and 50A output, it caters to diverse industries needing reliable power modules for both industrial automation and advanced engineering systems.

Sample Offer, Prompt Dispatch & Secure Packaging

Samples of the GD50PIY120C6S are available upon request, providing a low outlay for evaluation prior to bulk commitment. We dispatch orders rapidly to ensure minimum downtime, leveraging our substantial supply ability for timely fulfillment. Each module is carefully packaged in anti-static, shock-resistant materials to protect your investment during transit, guaranteeing safe delivery from our warehouses to your location across India.

FAQ's of GD50PIY120C6S STARPOWER PIM IGBT MODULE:

Q: How does the GD50PIY120C6S ensure operational safety in industrial applications?

A: The module is equipped with integrated short-circuit and over-temperature (NTC) protection, which actively monitors and safeguards the system, ensuring reliable and safe operation under demanding conditions.

Q: What types of applications benefit the most from this IGBT module?

A: It is ideally suited for AC motor drives, inverter systems, and power conversion applications, where efficient switching, compactness, and high reliability are pivotal.

Q: When are GD50PIY120C6S modules typically dispatched after order confirmation?

A: Orders are typically dispatched promptly, with minimal lead time, thanks to our robust stock and streamlined logistics, ensuring reduced waiting periods for customers.

Q: Where can the GD50PIY120C6S be installed for optimal performance?

A: It is designed for chassis or screw mounting, ideally into systems requiring a compact, robust power module in industrial environments, especially within inverter cabinets or motor control centers.

Q: What is the process to request a product sample or bulk order?

A: You can request a product sample or place a bulk order by contacting our sales team. Samples are offered with competitive outlay to allow testing before larger commitments.
