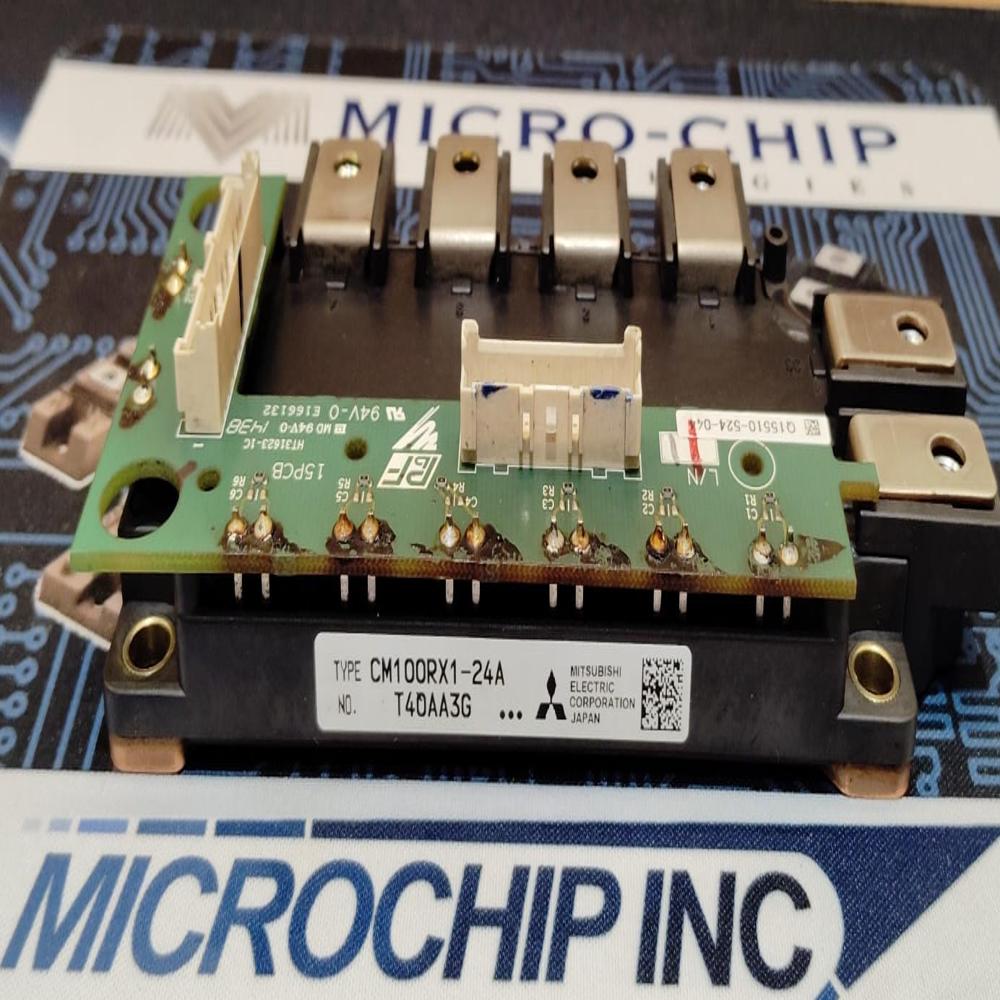

CM100RX1-24A MITSUBISHI POWER MODULE

Name: CM100RX1-24A MITSUBISHI POWER MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 15000.0 INR
Availability: InStock

Price 15000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

CM100RX1-24A MITSUBISHI POWER MODULE Specification

Product Type
IGBT Power Module

Supply Voltage
1200V

Dissipation Power
784W

Operating Temperature
-20C to +150C

Power Consumption
Depends on Load (see datasheet)

Temperature Range
-20C to +150C

Input Voltage
1200V (Collector-Emitter Voltage)

Voltage Regulator Type
Not Applicable (IGBT Module)

Size
Approx. 118mm 60mm 30mm

Weight
Approx. 450g

Gate Threshold Voltage (Vge)
20V max

Internal Circuit
Built-in Freewheeling Diode per IGBT

Package
Type RX1

Module Structure
Dual (Two IGBTs Inside)

Collector Current (Ic)
100A

Isolation Voltage
2500V AC (1 min)

Turn-On/Off Time
tON: 0.7s, tOFF: 1.0s (typical)

Mounting
Screw Mount

CM100RX1-24A MITSUBISHI POWER MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About CM100RX1-24A MITSUBISHI POWER MODULE

Personalise your power solutions with the CM100RX1-24A Mitsubishi Power Module-a lavish masterpiece engineered for reliability. Featuring a crackerjack dual IGBT structure, this module delivers a robust collector current of 100A and withstands voltages up to 1200V, crowned with a 2500V isolation rating for ultimate safety. Its built-in freewheeling diodes ensure efficient operation in industrial motor drives, inverters, and power supplies. Find the latest advancements in power modules with screw-mount RX1 packaging, ideal for applications demanding precision, performance, and durability from top-tier distributors, importers, and suppliers in India.

Masterpiece in Power Module Technology

The CM100RX1-24A Mitsubishi Power Module combines cutting-edge technology and robust durability. With features like dual IGBT configuration, 1200V input capacity, 100A collector current, and built-in freewheeling diodes, it is a lavish solution for high-performance applications. Its compact RX1 package and extended operating temperature range make it ideal for motor drives, inverters, and servo control systems. Enjoy consistent efficiency and safety for all demanding industrial environments across a broad temperature spectrum.

Sample Availability and Order Process

Samples of the CM100RX1-24A are readily handed over upon request, helping you verify suitability before bulk orders. The main domestic market is India, serviced by reliable distributors and suppliers. Packaging is secure and tailored to prevent transit damage. To complete your order, submit an enquiry with your asking price and requirements, ensuring swift order completion and prompt delivery of this high-quality power module solution to your location.

FAQ's of CM100RX1-24A MITSUBISHI POWER MODULE:

Q: How can I order a sample of the CM100RX1-24A Mitsubishi Power Module?

A: Simply reach out to your authorized distributor or supplier in India with your requirements and the asking price to have a sample handed over for evaluation.

Q: What are the primary applications for the CM100RX1-24A power module?

A: This module is perfect for industrial motor drives, inverters, power supplies, and servo control systems requiring efficient and reliable high-power switching.

Q: Where is the CM100RX1-24A mainly distributed and supplied?

A: It is widely distributed and supplied throughout India by experienced importers and distributors specializing in power electronic components.

Q: What packaging details should I expect when ordering this module?

A: Orders are securely packaged to prevent damage during transit, maintaining the module's integrity and ensuring it arrives in pristine condition.

Q: When can I expect order completion after placing a request?

A: Order completion and delivery time depend on stock availability and your location, but reliable supply chains in India ensure prompt service and timely handover.
