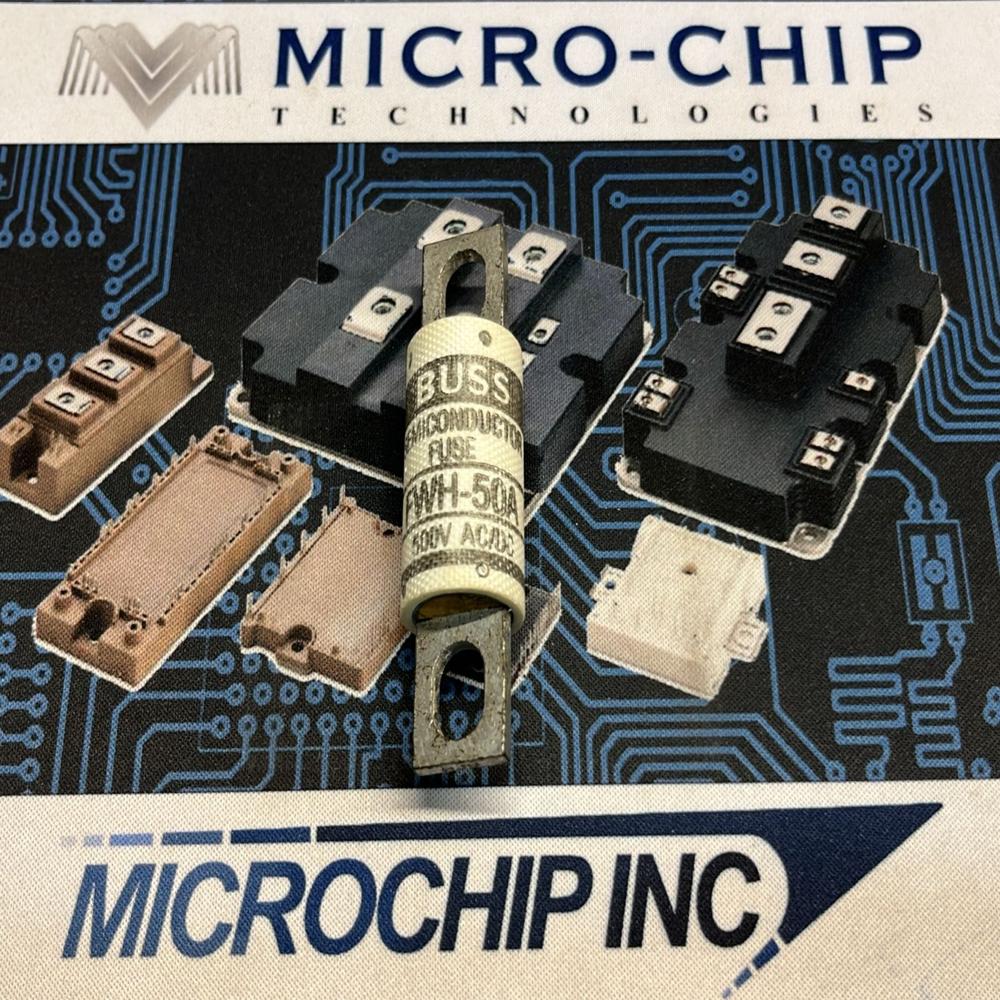

Bussmann FWH-50A High-Speed Semiconductor Fuse

Name: Bussmann FWH-50A High-Speed Semiconductor Fuse
Brand: MICROCHIP TECHNOLOGIES
Price: 1000.0 INR
Availability: InStock

Price 1000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Bussmann FWH-50A High-Speed Semiconductor Fuse Specification

Operating Temperature
-55C to +80C

Shape
Cylindrical

IP Rating
IP20 (when installed in proper fuseholder)

Insulation Material
High-Performance Ceramic

Connector Type
Bolt-Type Terminal

Humidity %
95% RH, non-condensing

Overheating Protection
Yes (by design)

Mounting Type
Bolted

Feature
Ultra-rapid Response, Low l2t Value, Current Limiting, RoHS Compliant

Surface Finish
Nickel-Plated End Caps

Product Type
High-Speed Semiconductor Fuse

Application
Semiconductor Device Protection (IGBTs, Diodes, Thyristors, Rectifiers, Power Modules)

Protection Level
High-Speed, Current Limitation

Frequency (MHz)
DC to 50/60 Hz

Rated Voltage
500V AC/500V DC

Color
White / Silver

Dimension (L*W*H)
76.2 mm x 21.6 mm x 21.6 mm (approx.)

Weight
90 g

Input Voltage
500V Max

Size
50A

Phase
Single Phase

No Of Poles
1 Pole

Connection Type
Bolt-On

Material
Ceramic Body with Metal End Caps

Interrupting Rating
200 kA RMS Symmetrical (500V AC); 100 kA DC

Typical Applications
Inverters, Power Converters, UPS Systems, Drives

Series
FWH

RoHS Status
Compliant

Storage Temperature
-40C to +85C

Catalog Number
FWH-50A

Standards Compliance
UL Recognized, CSA Certified, IEC 60269-4

Fuse Element
Silver

Response Time
Ultra-fast (< 1ms at 10x In)

Bussmann FWH-50A High-Speed Semiconductor Fuse Trade Information

Minimum Order Quantity
1 Number

Supply Ability
1000 Per Month

Delivery Time
7 Days

About Bussmann FWH-50A High-Speed Semiconductor Fuse

Access top-drawer technology with the Bussmann FWH-50A High-Speed Semiconductor Fuse-a cost-effective solution for high-demand applications like inverters, UPS systems, and drives. Remarked for its ultra-fast response (under 1ms at 10x In), this fuse offers marvelous current limitation and superior protection for critical semiconductor devices such as IGBTs, diodes, and rectifiers. Its nickel-plated end caps, high-performance ceramic body, and bolted connection ensure reliable operation. UL recognized, CSA certified, and RoHS compliant, this fuse delivers excellence in both safety standards and operational longevity. Order with confidence from trusted distributors, importers, or suppliers across India.

Competitive Advantages & Application Method

The Bussmann FWH-50A fuse offers remarkable protection for semiconductor devices with its ultra-rapid response, minimizing device stress and providing high-speed current limitation during faults. Simply bolt-on the fuse to your system to shield IGBTs, diodes, and power modules in inverters, UPS units, and converters. Its robust ceramic construction and silver element guarantee long-term reliability, while its IP20 rating ensures safe installation when properly housed. Experience industry-leading standards compliance and reliable safety performance with every application.

Sample Availability, FOB Port & Sample Policy

For businesses seeking confidence in proposal amount and rate, Bussmann FWH-50A fuse samples are available upon request. Samples ship from a designated FOB port, with prompt arrival to meet testing and evaluation needs. The sample policy ensures that clients clearly understand product quality before placing bulk orders, fortifying their purchasing decision. Contact the authorized supplier in India for details on sample terms, delivery timelines, and any associated charges tied to the initial trial order.

FAQ's of Bussmann FWH-50A High-Speed Semiconductor Fuse:

Q: How does the Bussmann FWH-50A fuse benefit semiconductor device protection?

A: The FWH-50A offers ultra-fast response and current limitation, protecting sensitive devices such as IGBTs, diodes, thyristors, rectifiers, and power modules from damaging overcurrents, thus ensuring safe and reliable operation.

Q: What is the application process for installing this fuse?

A: Installation is straightforward with its bolt-on design-simply mount the fuse into the recommended fuseholder, connect to the correct terminals, and secure the assembly for quick and reliable protection integration.

Q: When should I use the Bussmann FWH-50A fuse in my system?

A: Deploy the FWH-50A fuse when you require high-speed current interruption for semiconductor circuits operating at voltages up to 500V AC or DC, particularly in demanding environments such as inverters, UPS, or drives.

Q: Where can I order the Bussmann FWH-50A fuse in India?

A: You can access this fuse from authorized distributors, importers, and suppliers across India, ensuring reliable support and competitive pricing for your orders.

Q: What standards does the FWH-50A fuse comply with?

A: The fuse is UL recognized, CSA certified, and manufactured in accordance with IEC 60269-4, ensuring it meets global industry benchmarks for safety and performance.

Q: What are the advantages of requesting a sample before a full order?

A: Requesting a sample allows you to evaluate the fuse's performance, confirm suitability for your application, and easily assess technical compatibility before committing to a bulk purchase.
