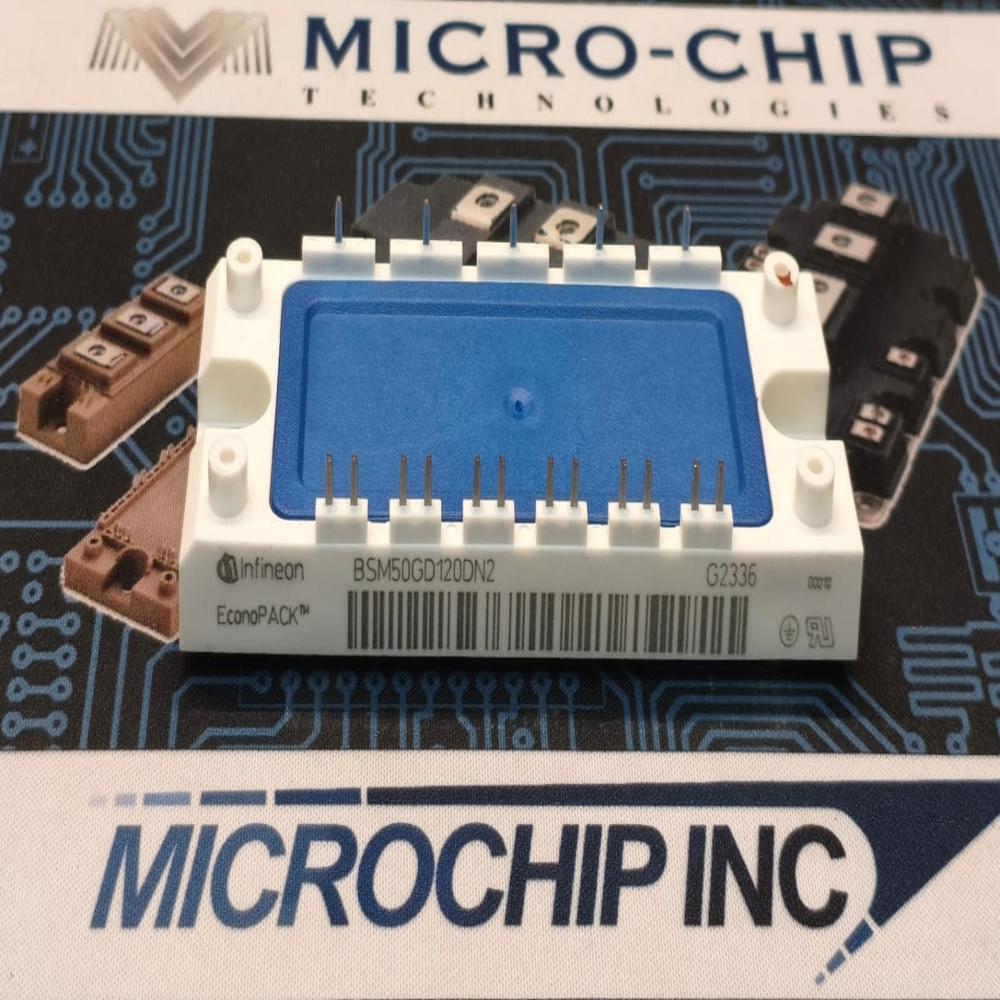

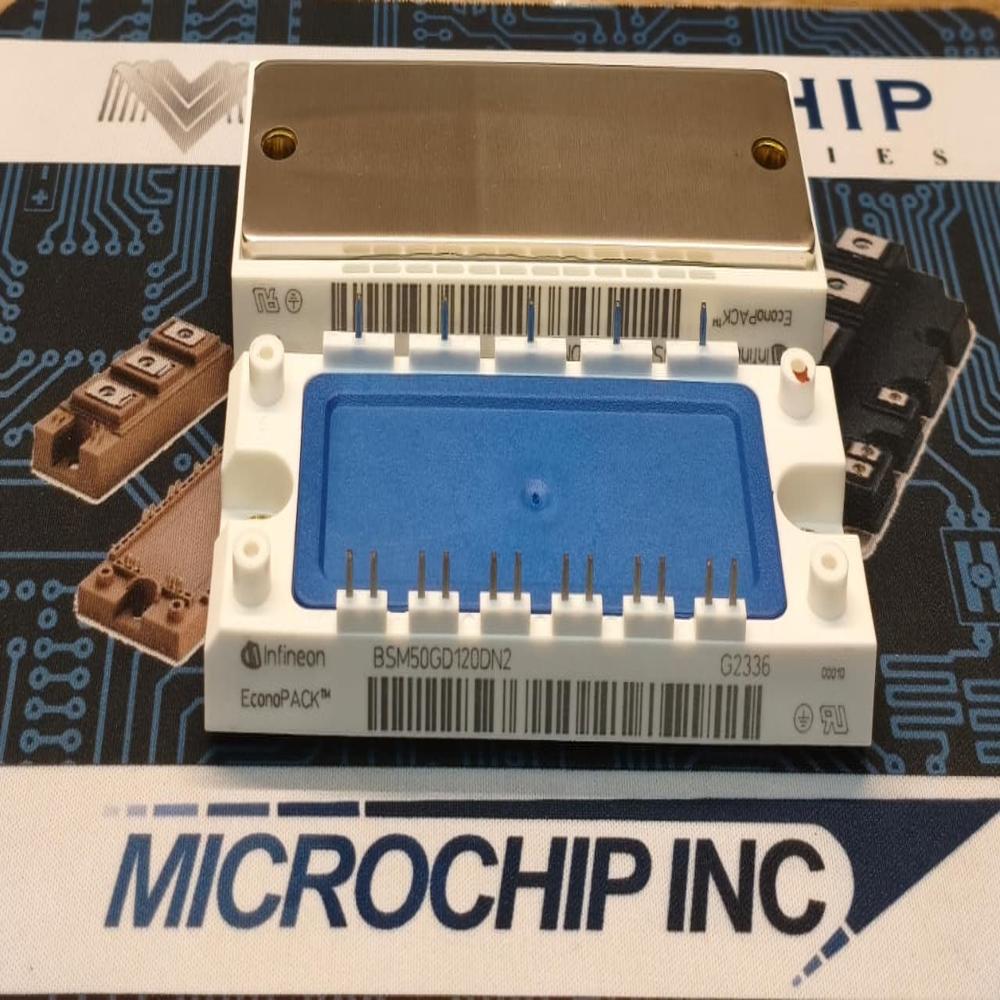

BSM50GD120DN2 Infineon IGBT Power Module

Name: BSM50GD120DN2 Infineon IGBT Power Module
Brand: MICROCHIP TECHNOLOGIES
Price: 8000.0 INR
Availability: InStock

Price 8000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

BSM50GD120DN2 Infineon IGBT Power Module Specification

Product Type
IGBT Power Module

Supply Voltage
1200 V

Dissipation Power
217 W

Operating Temperature
-40C to +150C

Power Consumption
50 A (collector current)

Temperature Range
-40C to +150C

Input Voltage
1200 V

Voltage Regulator Type
IGBT 3-Phase Bridge

Size
62 mm x 34 mm x 12 mm

Weight
About 120 g

Collector-Emitter Saturation Voltage Vcesat
2.1 V (typ)

RoHS Status
Compliant

Switching Frequency
Up to 20 kHz

Mounting Type
Screw / PCB Mount

IGBT Technology
Field-stop Trench

Isolation Voltage
2500 V (AC, 1 min)

Package Type
Semitrans 2 (EconoPACK) housing

Gate-Emitter Voltage
20 V max

Turn-Off Delay Time
300 ns

Configuration
Three-phase bridge

Short Circuit Withstand Time
10 s

Integrated Features
NTC thermistor for temperature sensing

BSM50GD120DN2 Infineon IGBT Power Module Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About BSM50GD120DN2 Infineon IGBT Power Module

Experience world-class reliability and value with the acclaimed BSM50GD120DN2 Infineon IGBT Power Module. Featuring a majestic three-phase bridge configuration and groundbreaking Field-stop Trench IGBT technology, this module delivers towering performance in demanding industrial settings. With an isolation voltage of 2500 V (AC, 1 min) and integrated NTC thermistor, enjoy precise temperature control and robust short-circuit capability. Ideal for last chance upgrades in motor drives, UPS, and inverter systems, this RoHS-compliant module is expertly designed for longevity, boasting up to 20 kHz switching frequency and 1200 V input. Available through leading distributors, importers, and suppliers across India.

Versatile Applications for Advanced Industrial Needs

The BSM50GD120DN2 Infineon IGBT Power Module is meticulously engineered for industrial motor drives, uninterruptible power supplies (UPS), and sophisticated inverter systems. Its robust 3-phase bridge design and high isolation voltage ensure reliable operation in power-intensive environments, making it ideal for a wide spectrum of industrial automation, smart manufacturing, and power management initiatives across India. This versatile module covers expansive application areas where dependable, efficient power electronics are crucial.

Payment Terms and Shipping Information

Order processing for the BSM50GD120DN2 is streamlined to ensure prompt shipments. Shipped goods adhere to strict guidelines and are dispatched primarily from major Indian ports under FOB terms. Competitive rates are provided for both small and large volume orders, tailored to the requirements of domestic clients. Immediate support is available for all payment queries, ensuring smooth transactions from order placement through to final delivery in key industrial markets across India.

FAQ's of BSM50GD120DN2 Infineon IGBT Power Module:

Q: How is the BSM50GD120DN2 Infineon IGBT Power Module commonly used?

A: This power module is primarily used in the assembly of industrial motor drives, UPS systems, and inverter-based power supplies, serving as a vital component for switching and power control applications.

Q: What are the notable benefits of the Field-stop Trench IGBT technology in this module?

A: The Field-stop Trench IGBT technology delivers higher efficiency, reduced switching losses, and greater ruggedness, ensuring robust and reliable performance in high-frequency industrial operations.

Q: Where can I obtain the BSM50GD120DN2 IGBT Power Module in India?

A: You can order the BSM50GD120DN2 through authorized distributors, importers, and suppliers across India, catering to both local and national industrial power requirements.

Q: What is the order process and expected delivery time for this module?

A: Orders can be placed via official channels and are promptly processed. Shipping times may vary based on order volume and destination, but most shipments originate from major Indian ports under FOB terms.

Q: How does the integrated NTC thermistor enhance this module's usage?

A: The integrated NTC thermistor provides accurate temperature monitoring, which helps improve thermal management and protects the module from overheating during operation.

Q: When is it advantageous to choose the BSM50GD120DN2 for an application?

A: It is advantageous to select this module during system upgrades or new installations requiring high reliability, robust protection features, and superior switching performance, especially when managing demanding industrial loads.
