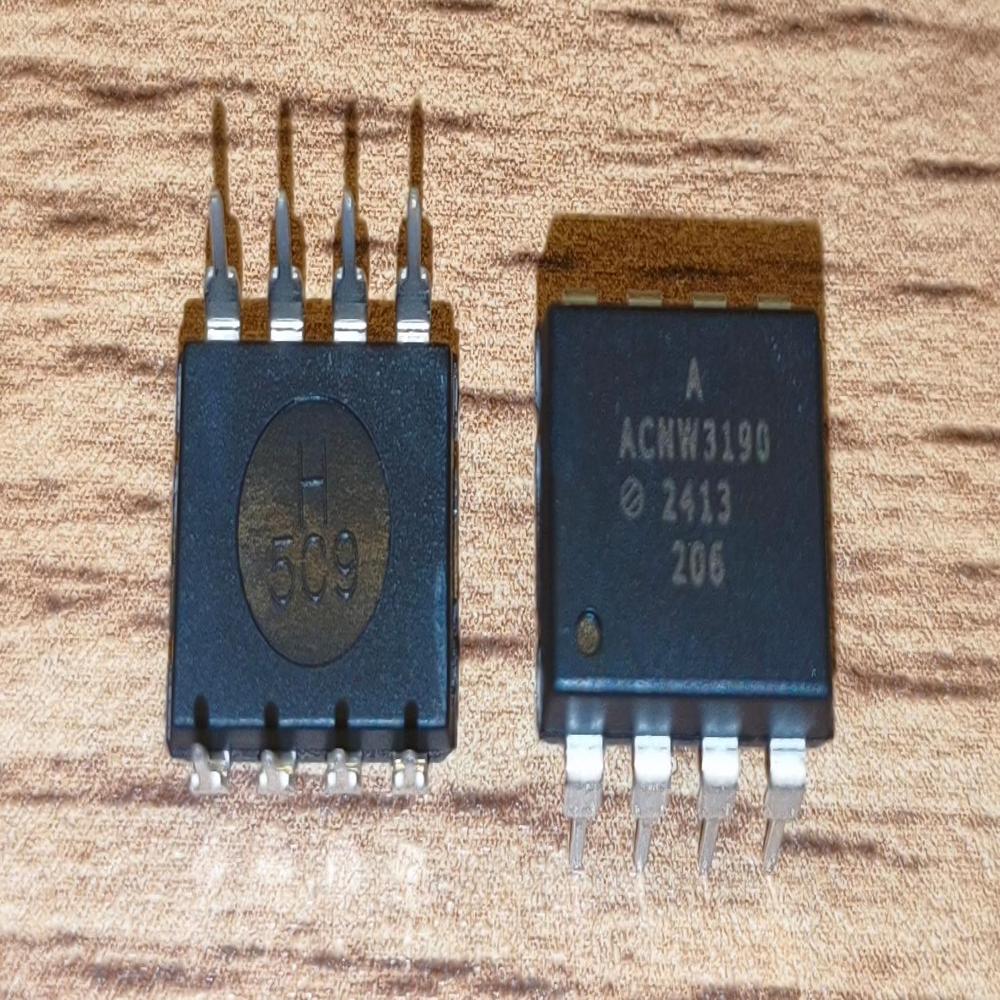

ACNW3190 IC GATE DRIVE OPTOCOUPLER

Name: ACNW3190 IC GATE DRIVE OPTOCOUPLER
Brand: MICROCHIP TECHNOLOGIES
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Number

Get a Price/Quote

ACNW3190 IC GATE DRIVE OPTOCOUPLER Specification

Shape
Rectangular

IP Rating
IP20 (Equivalent)

Mounting Type
Through-Hole

Insulation Material
Polymer

Feature
High Common Mode Transient Immunity (CMTI), Rail-to-Rail Output

Humidity %
Max 85% RH

Overheating Protection
NO

Connector Type
DIP-8

Efficiency
High Efficiency Signal Transmission

Surface Finish
Molded

Operating Temperature
-40C to +105C

Product Type
IC Gate Drive Optocoupler

Application
IGBT/MOSFET Gate Drive, Motor control, Power Supplies

Protection Level
Isolation 5000 Vrms

Frequency (MHz)
0.0001 to 1

Rated Voltage
Maximum 30V (output side supply voltage)

Energy Consumption
Low

Output Type
Open Collector, Transistor Output

Color
Black

Dimension (L*W*H)
10.3 mm x 7.1 mm x 2.7 mm

Weight
0.25g (typical)

Input Voltage
Forward Current 5 mA (typ)

Size
DIP-8

Phase
Single

No Of Poles
1

Material
Plastic Molded Package

Connection Type
Through Hole

Package Type
DIP-8, Creepage Distance: 8mm

Safety Approvals
UL, cUL, VDE, CQC Certified

Input Forward Voltage
1.4V (max)

Propagation Delay Time
150 ns (max, High to Low)

Isolation Voltage
5000 Vrms for 1 Minute

RoHS Status
RoHS Compliant

Common Mode Transient Immunity (CMTI)
30 kV/s (min)

Model Number
ACNW3190

Noise Immunity
High

Output Current
2.0A Peak

Polarity
Non-inverting

Supply Voltage (Vcc) Range
15V to 30V

Reinforced Insulation
Yes

ACNW3190 IC GATE DRIVE OPTOCOUPLER Trade Information

Minimum Order Quantity
5 Number

Delivery Time
5-7 Days

About ACNW3190 IC GATE DRIVE OPTOCOUPLER

Discover the acclaimed ACNW3190 IC Gate Drive Optocoupler-an exclusive solution for outstanding signal isolation and high-performance gate driving. With a first-rate isolation voltage of 5000 Vrms, an astonishing common mode transient immunity of 30 kV/s, and high noise immunity, this DIP-8 optocoupler ensures reliability and efficiency. RoHS compliant and certified by UL, cUL, VDE, and CQC, the ACNW3190 operates across a wide temperature range and excels in IGBT/MOSFET gate drive, motor control, and power supplies. Shop now to experience premium efficiency and safety!

Versatile Applications and Usage Guidance

The ACNW3190 IC Gate Drive Optocoupler is widely used in industrial automation, motor drives, power supplies, and inverter circuits. Its reinforced insulation and high efficiency make it ideal for protecting sensitive equipment. To use, simply mount the DIP-8 package via through-hole connection, ensuring optimal performance in environments demanding isolation and robust signal transmission. Whether for IGBT or MOSFET gate drive, this outstanding component ensures reliability and safety across diverse application areas.

Sample Policy, Payment Terms, and Delivery Information

For market value assessment, premium samples of the ACNW3190 are available upon request. Standard payment terms include advance payment or net terms, reflecting the trusted business relationships we maintain. Delivery charges are minimal and tailored to your location, ensuring your order arrives safely and promptly. Typical delivery time is prompt, affirming our commitment to outstanding service and expedient supply to meet your urgent project needs.

FAQ's of ACNW3190 IC GATE DRIVE OPTOCOUPLER:

Q: How does the ACNW3190 IC Gate Drive Optocoupler enhance noise immunity?

A: The ACNW3190 provides high noise immunity due to its reinforced insulation, astonishing common mode transient immunity of 30 kV/s, and outstanding internal design, which minimizes the risk of electrical interference in sensitive circuits.

Q: What are the primary applications for the ACNW3190 Gate Drive Optocoupler?

A: This component is ideal for gate driving IGBT and MOSFET devices, motor control circuits, power supply applications, and environments where robust isolation and high voltage protection are essential.

Q: When should you use the ACNW3190 optocoupler over other types?

A: Choose the ACNW3190 when you require first-rate isolation protection up to 5000 Vrms, superior transient noise immunity, and reliable performance in demanding or industrial settings.

Q: Where can the ACNW3190 IC be installed within a circuit?

A: The optocoupler is designed for through-hole mounting in DIP-8 footprints, making it suitable for installation on standard PCBs in both industrial and commercial electronic equipment.

Q: What is the process for ordering and receiving the ACNW3190 optocoupler?

A: Place your order through authorized distributors or suppliers. Samples can be requested, payment is secured via preferred terms, and quick delivery is assured to suit your project timelines.

Q: How does the ACNW3190 benefit your power control designs?

A: It delivers high-efficiency signal transmission, exceptional isolation, and reliable output operation, which altogether enhance both the performance and safety of your electrical designs.
